Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

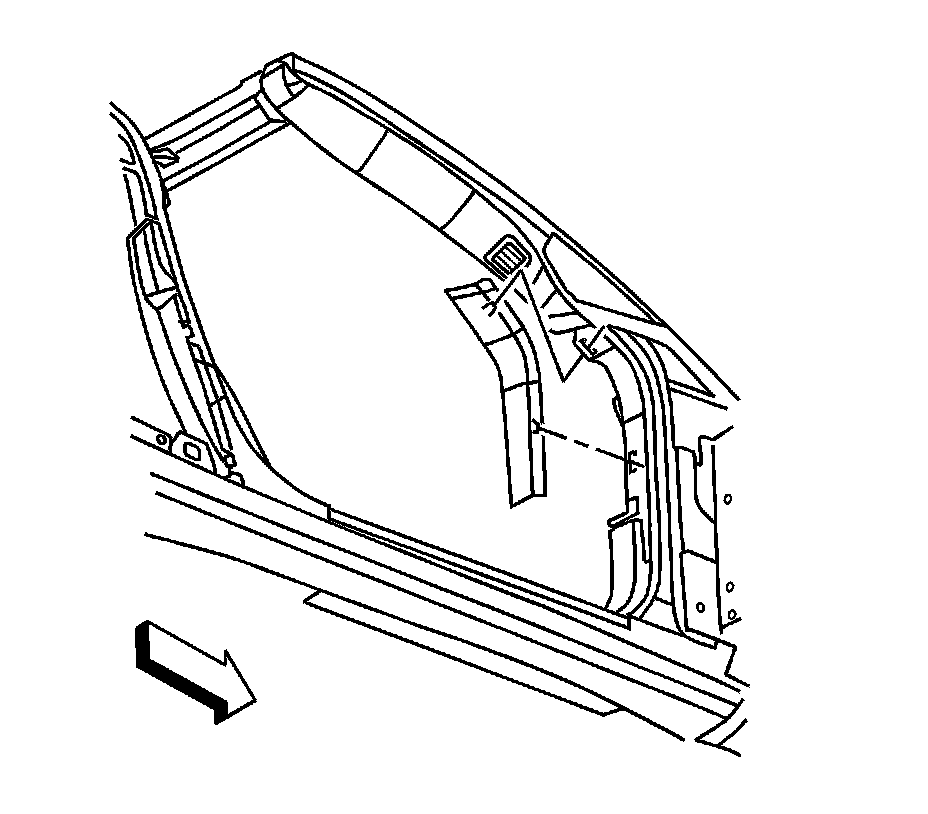

Removal Procedure




1. Remove the fastener attaching the top of the upper trim panel and the windshield side garnish molding to the hinge pillar.
2. Unsnap the hinge pillar upper trim from the hinge pillar.
3. Remove the hinge pillar upper trim.
4. Remove the carpet retainer. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).

Installation Procedure




1. Snap the hinge pillar trim to the hinge pillar.
2. Install the fastener attaching the top of the trim.
3. Install the carpet retainer. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).
