Wheelhouse Extension Replacement

Wheelhouse Extension Replacement












2.Remove the appropriate lower valence panel piece. Refer to Front Bumper Valance Panel Replacement .

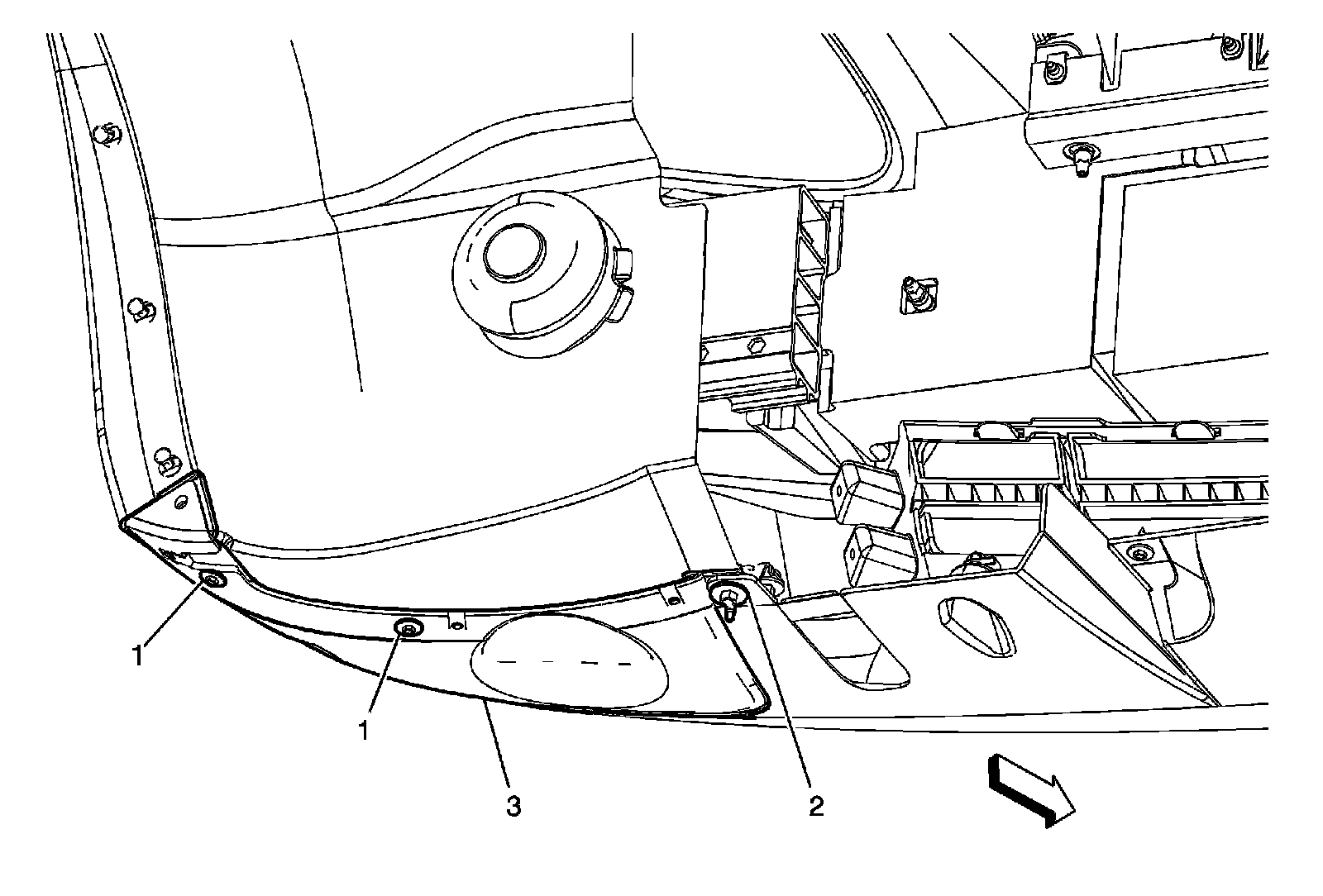

1Wheelhouse Extension Panel Screws (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 2 N �m (18 lb in)

2Front Fascia Lower Nut (Qty: 1)Tighten 7 N �m (62 lb in)

3Wheelhouse Extension Panel
