Front Bumper Valance Panel Replacement (ZR1)

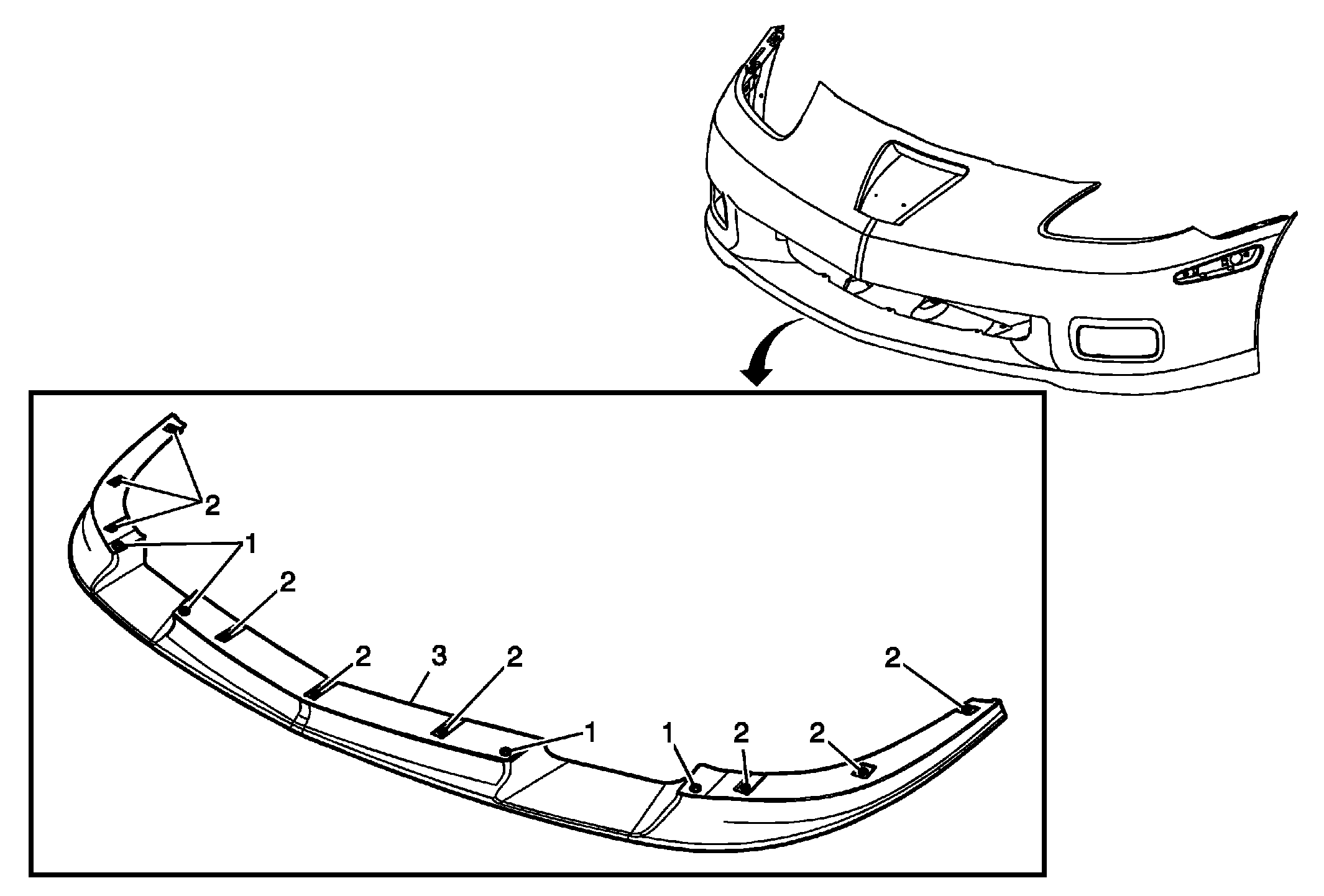

| Callout | Component Name |
|---|---|
| 1 | Front Bumper Valance Panel Fastener (Qty: 4)
WARNING:
Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.
CAUTION:
Refer to Fastener Caution
. Procedure: New fascia only, drill four 5 mm holes through the fascia skin only (U-nuts are right behind fascia skin on reinforcement) using the valence panel as a template, at location one. Tighten: 0.5 N.m (4 lb in) |
| 2 | Front Bumper Valance Panel Fastener (Qty: 9) Tighten: 0.5 N.m (4 lb in) |
| 3 | Front Bumper Valance Panel |
