Front Bumper Valance Panel Replacement (Z06)

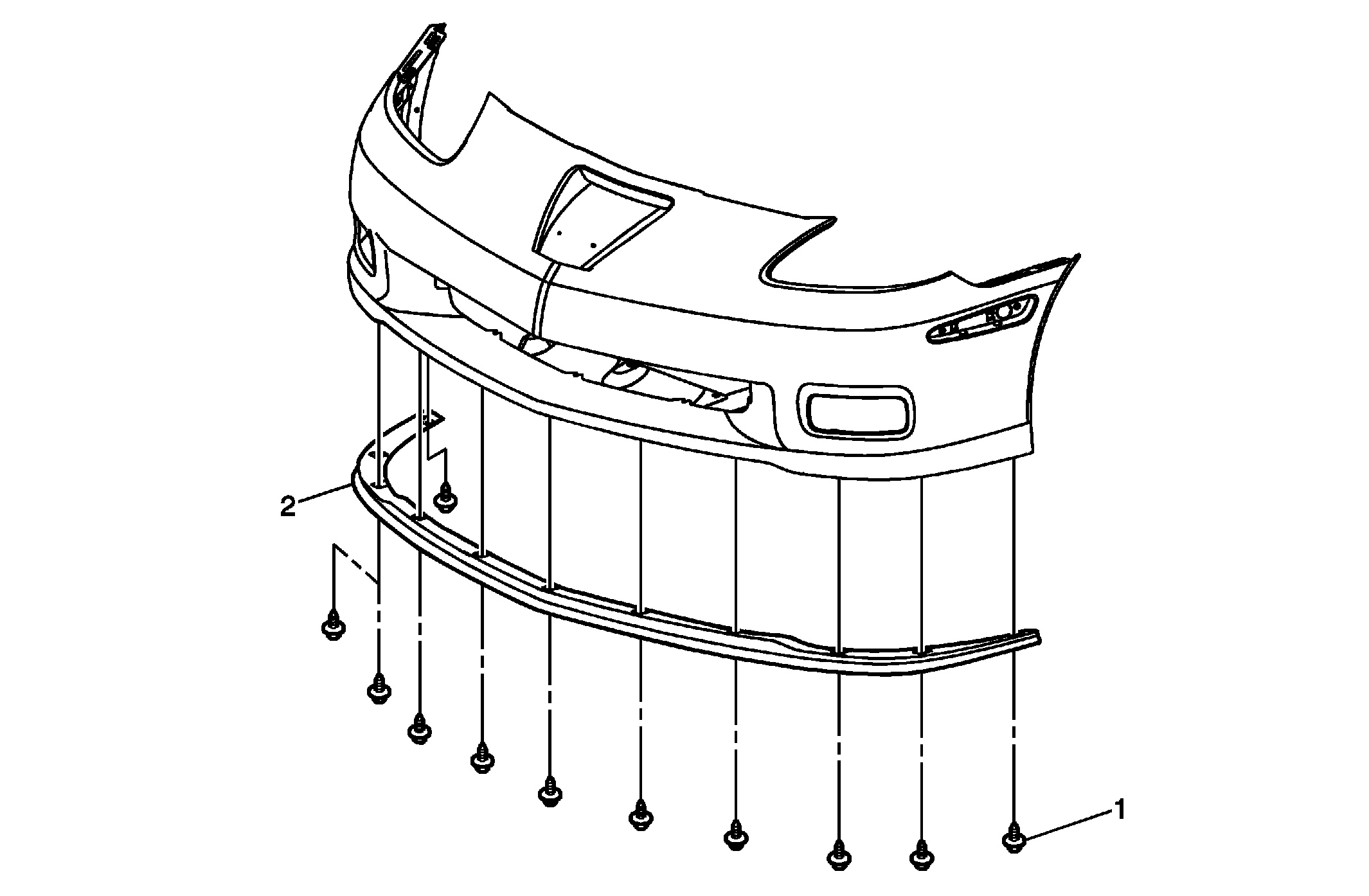

Fig 1: Front Bumper Valance Panel (Z06)
GM1827276Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Bumper Valance Panel Bolts (Qty: 11)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Front Bumper Valance Panel
