Front Bumper Valance Panel Replacement (Outer)

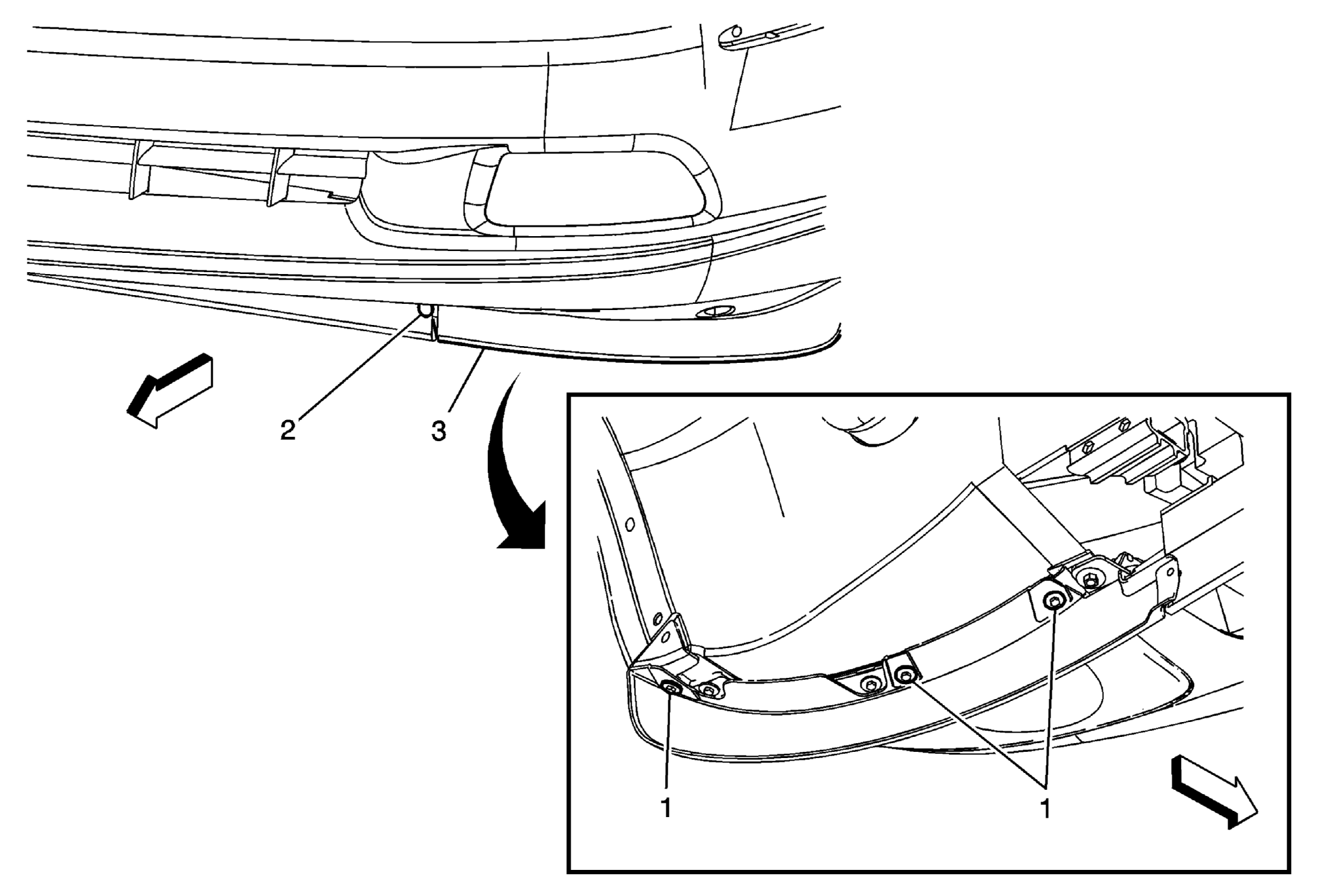

Fig 1: Front Bumper Valance Panel (Outer)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Bumper Valance Panel Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  3 N.m (27 lb in)
2	Front Bumper Valance Panel Plastic Retainer (Qty: 1)
3	Front Bumper Valance Panel
