Fuse Block - Underhood
Electrical Center Identification Views
Fuse Block - Underhood Label

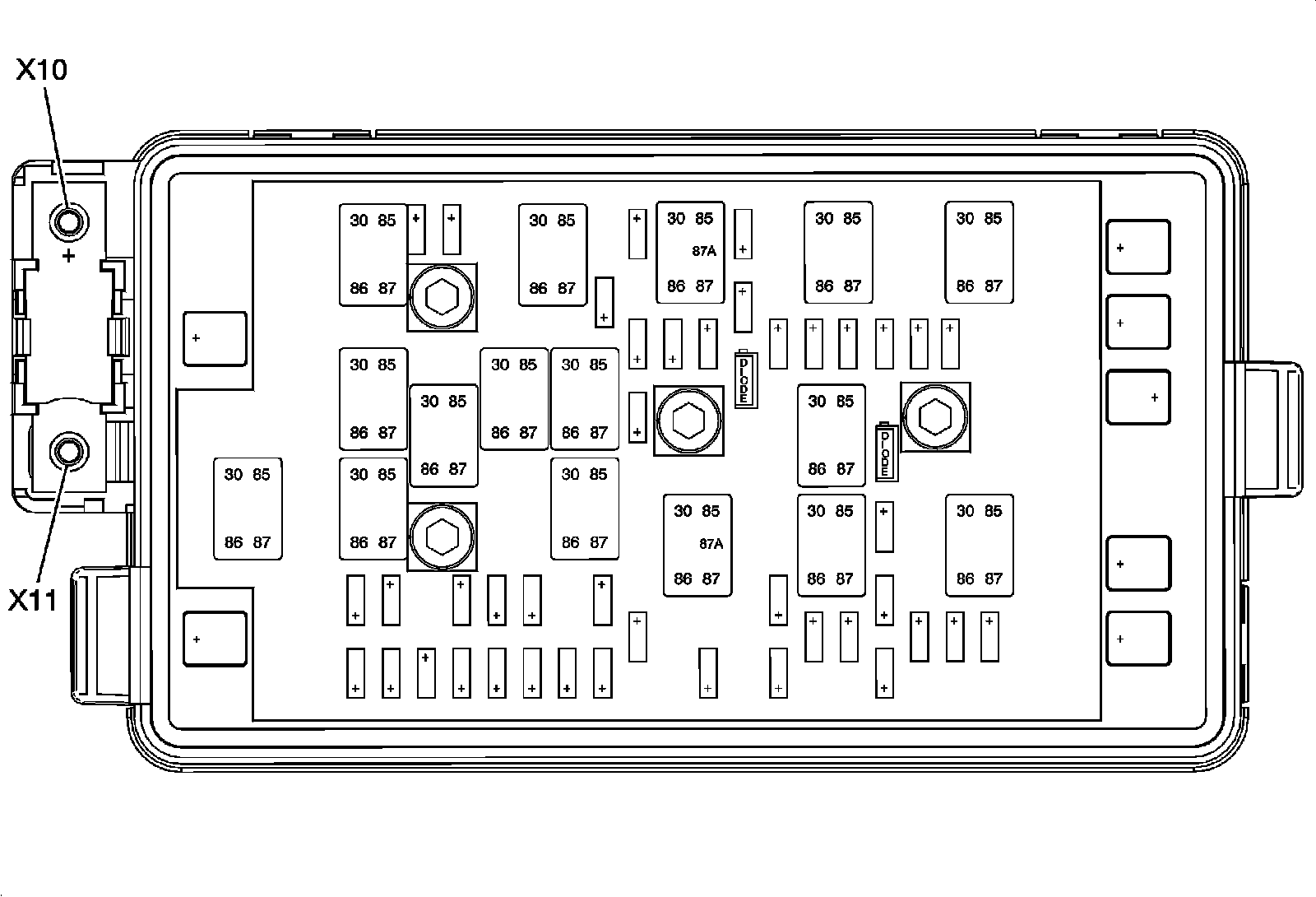

Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

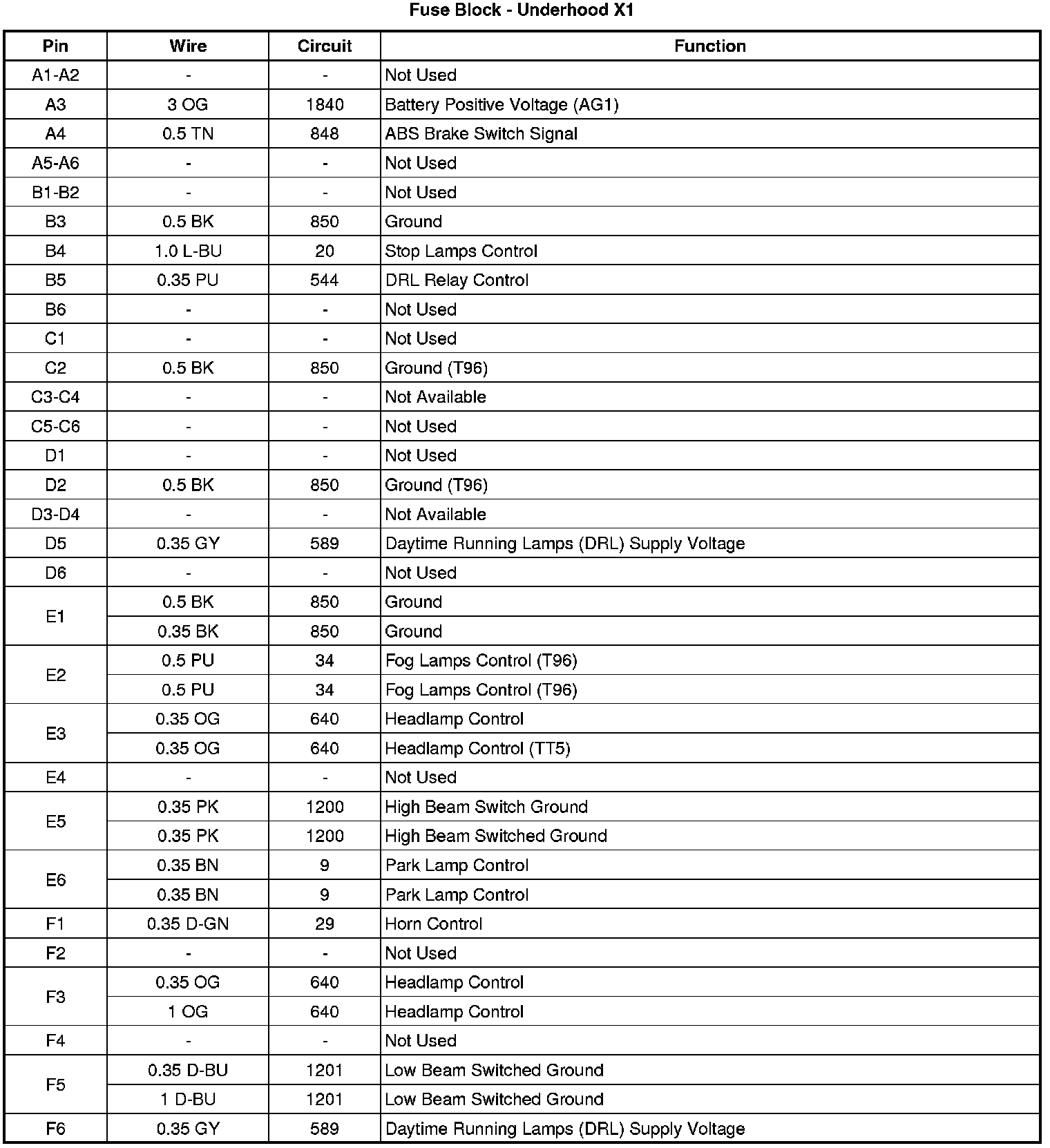

Fuse Block - Underhood X1

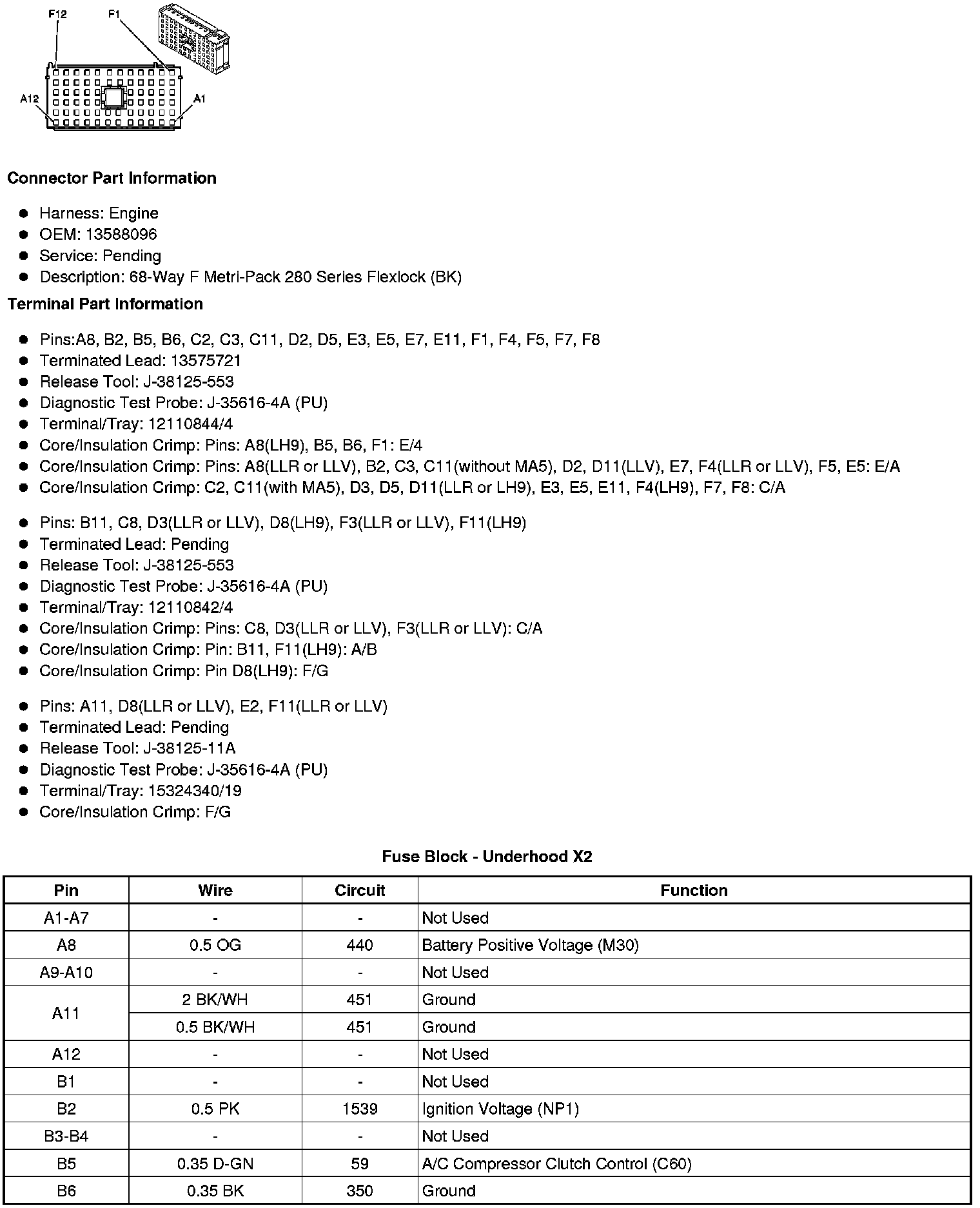

Fuse Block - Underhood X2

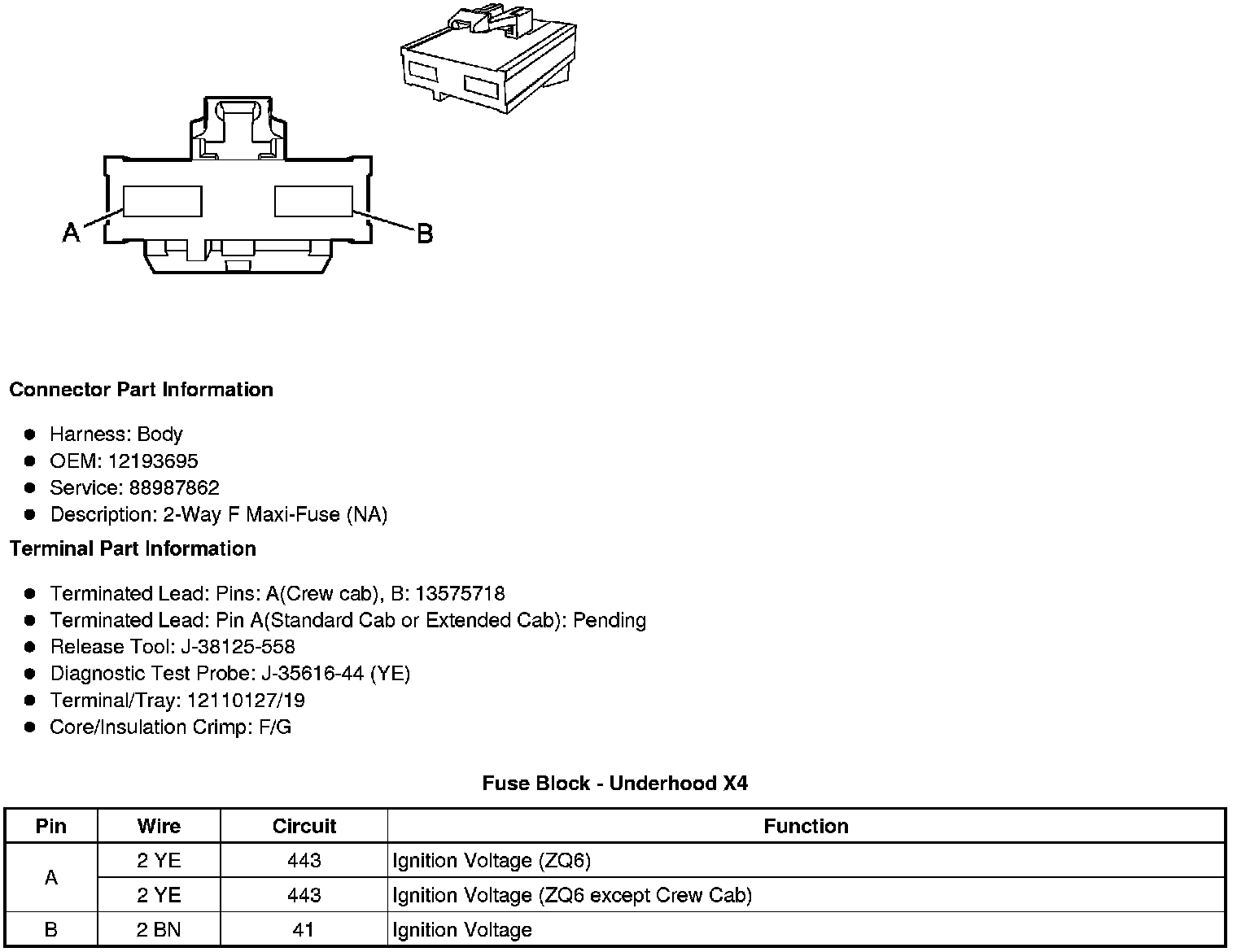

Fuse Block - Underhood X4
Fuse Block - Underhood X5

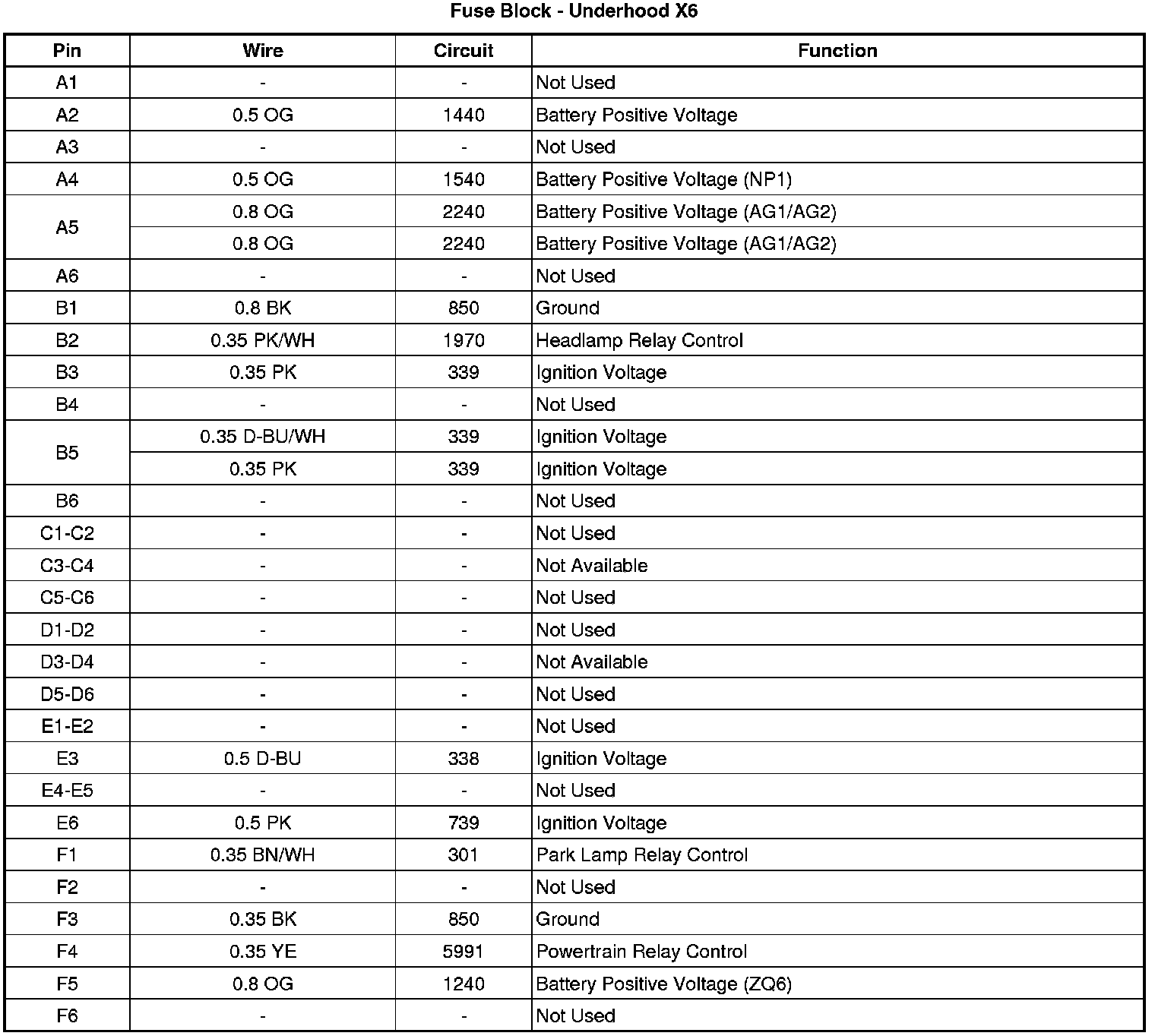

Fuse Block - Underhood X6

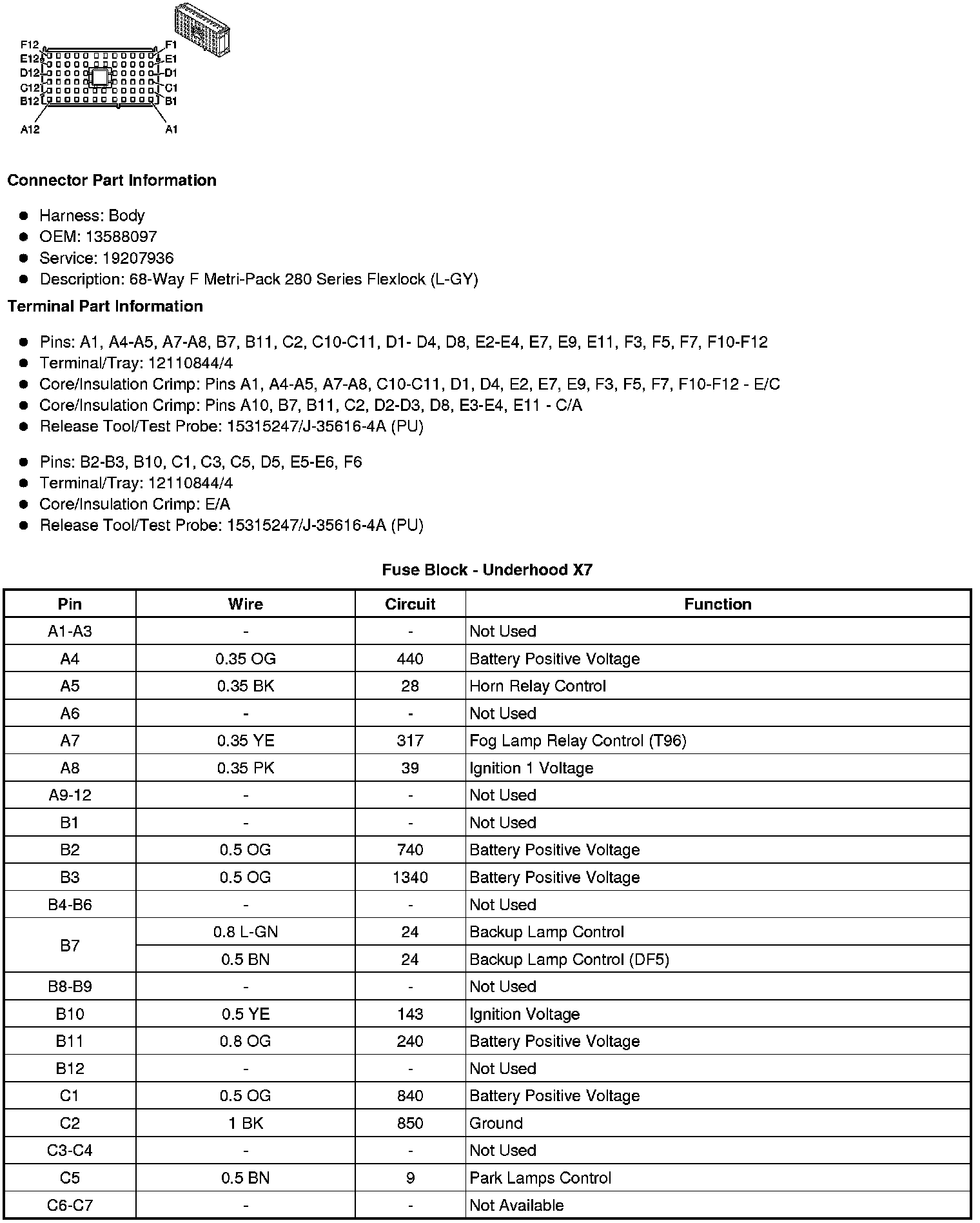

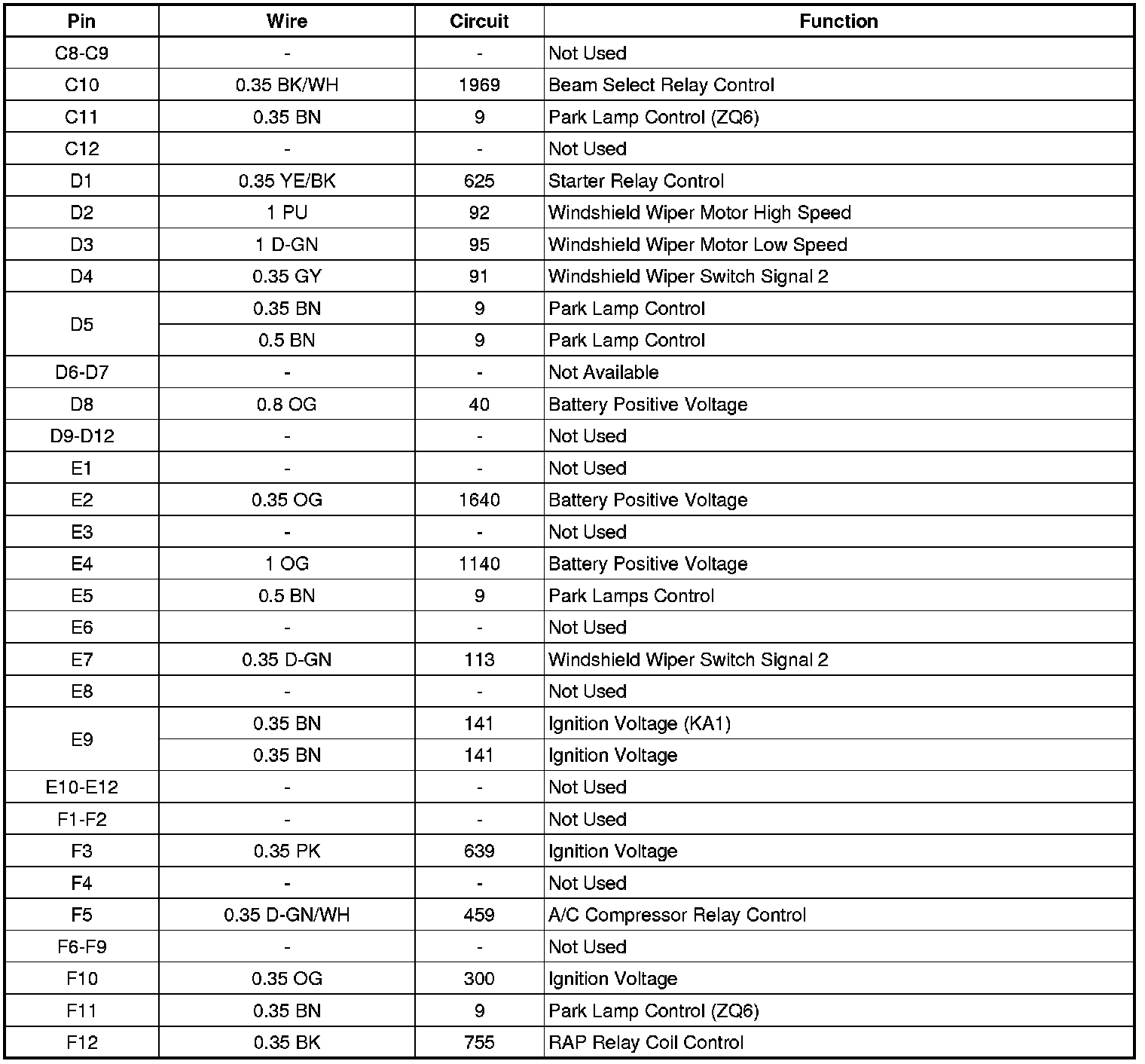

Fuse Block - Underhood X7
Fuse Block - Underhood X9 (UY7)
Fuse Block - Underhood X10
Fuse Block - Underhood X10 (UY7)
Fuse Block - Underhood X11
