Home >> Chevrolet >> 2011 >> Colorado 2WD V8-5.3L >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Diagrams >> Park Lamp - Right Front

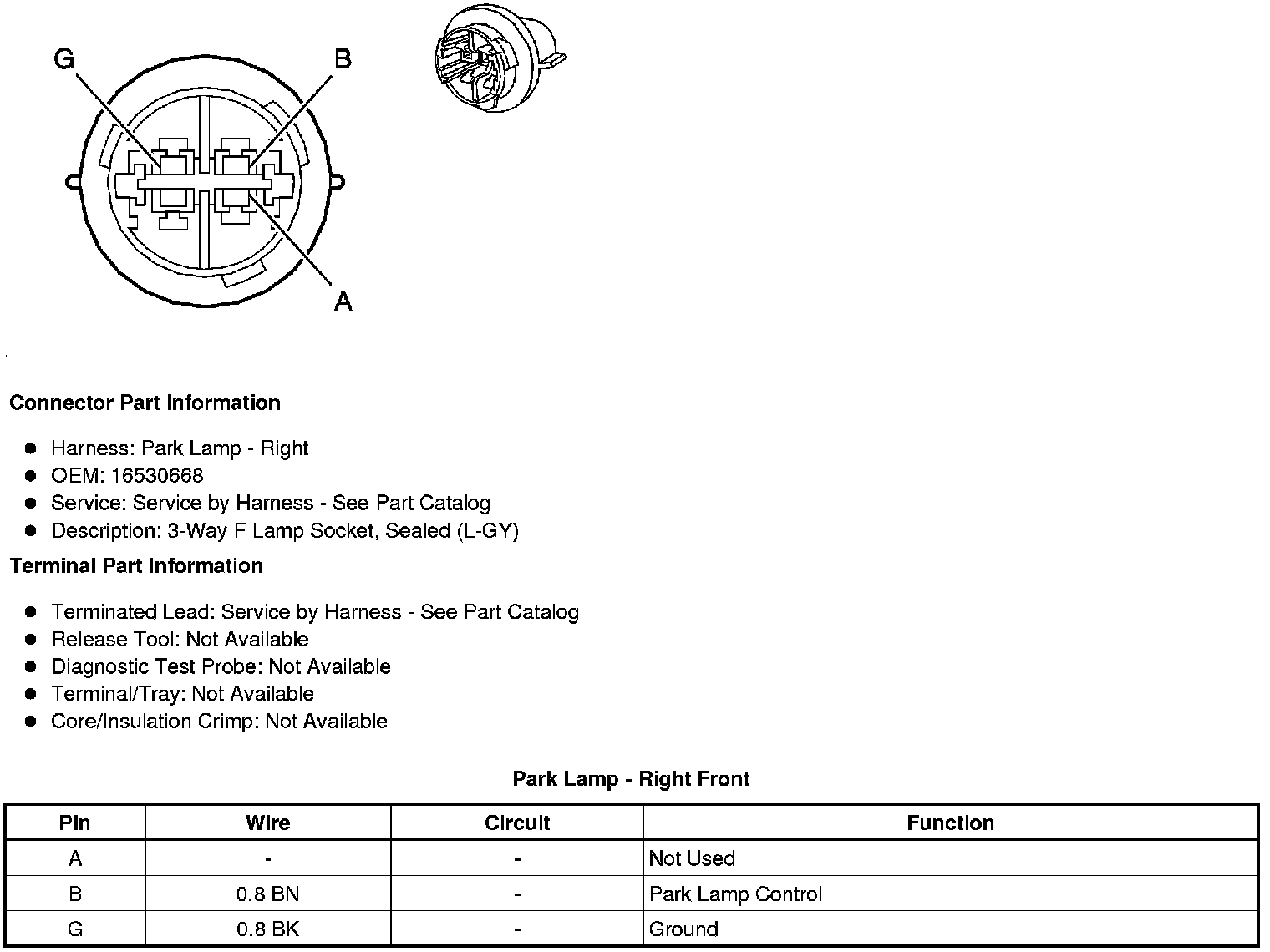

Park Lamp - Right Front




Component Connector End Views

Park Lamp - Right Front
