Power, Ground, and Subsystem References Wiring Schematic

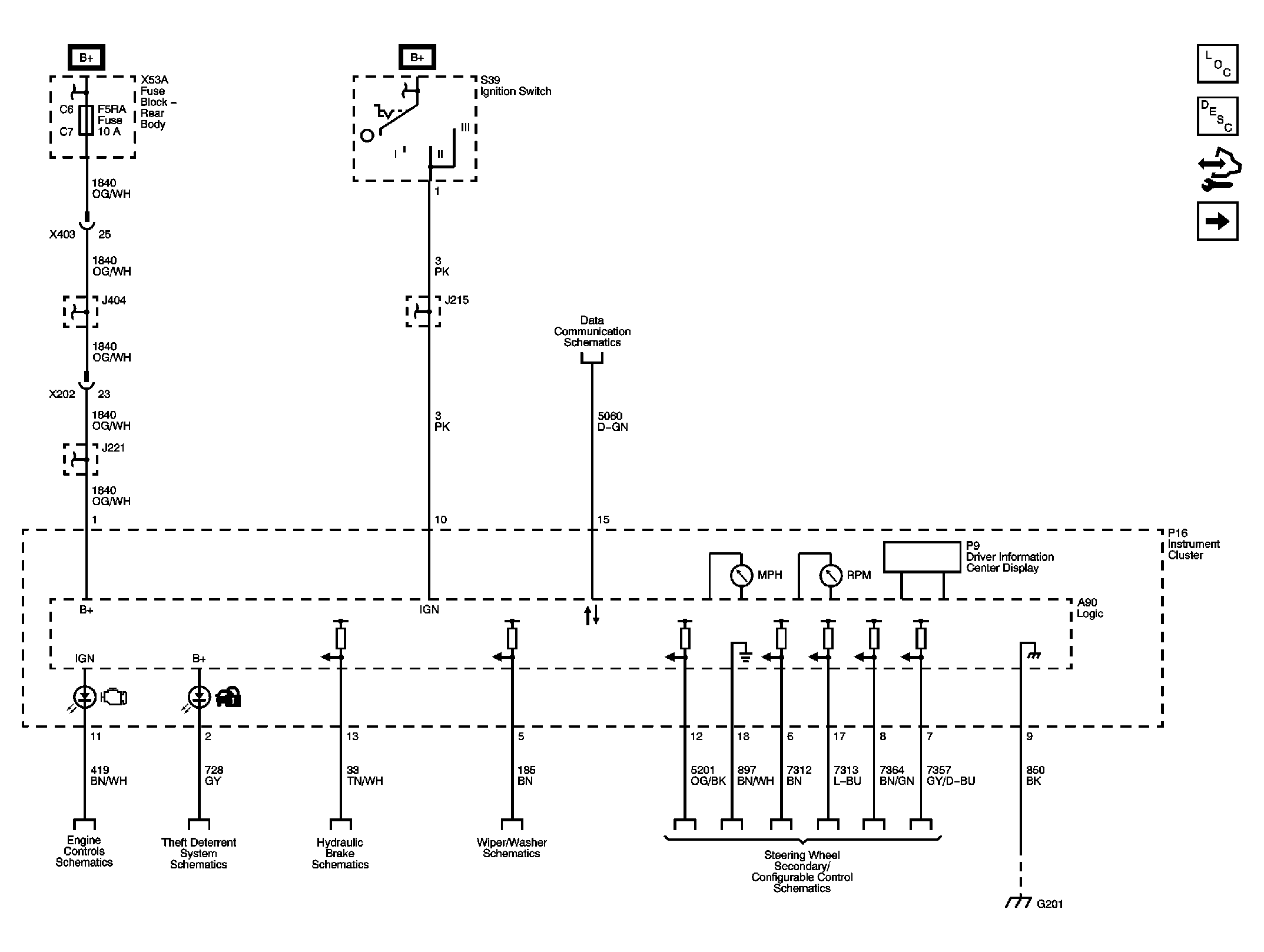

Fig 1: Power, Ground, and Subsystem References Wiring Schematic
GM2531243Courtesy of GENERAL MOTORS CORP.
