Audible Warnings Schematic

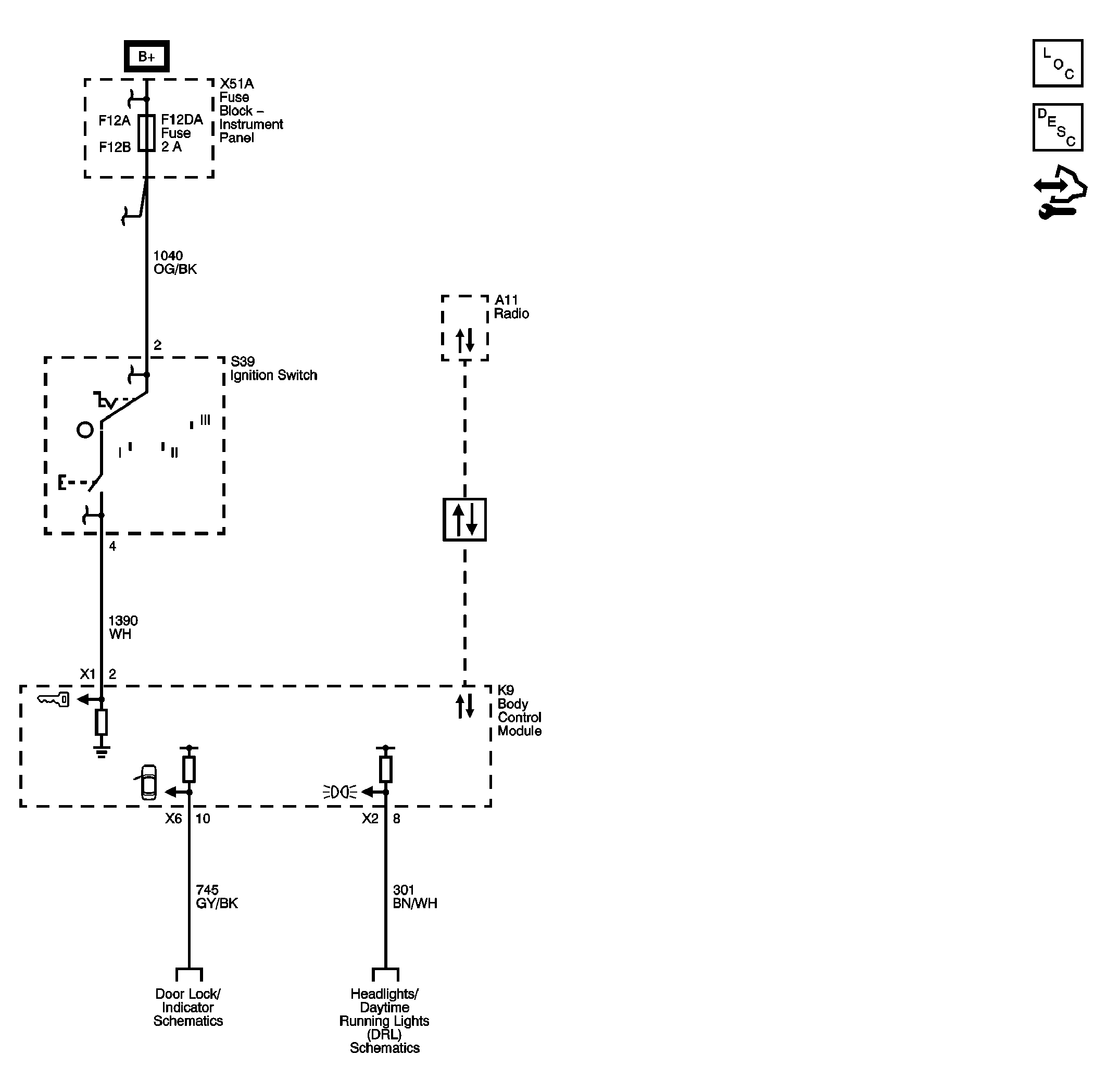

Fig 1: Audible Warnings Wiring Schematic

GM2531245

Courtesy of GENERAL MOTORS CORP.
