Accessory Switch Replacement (9C3)

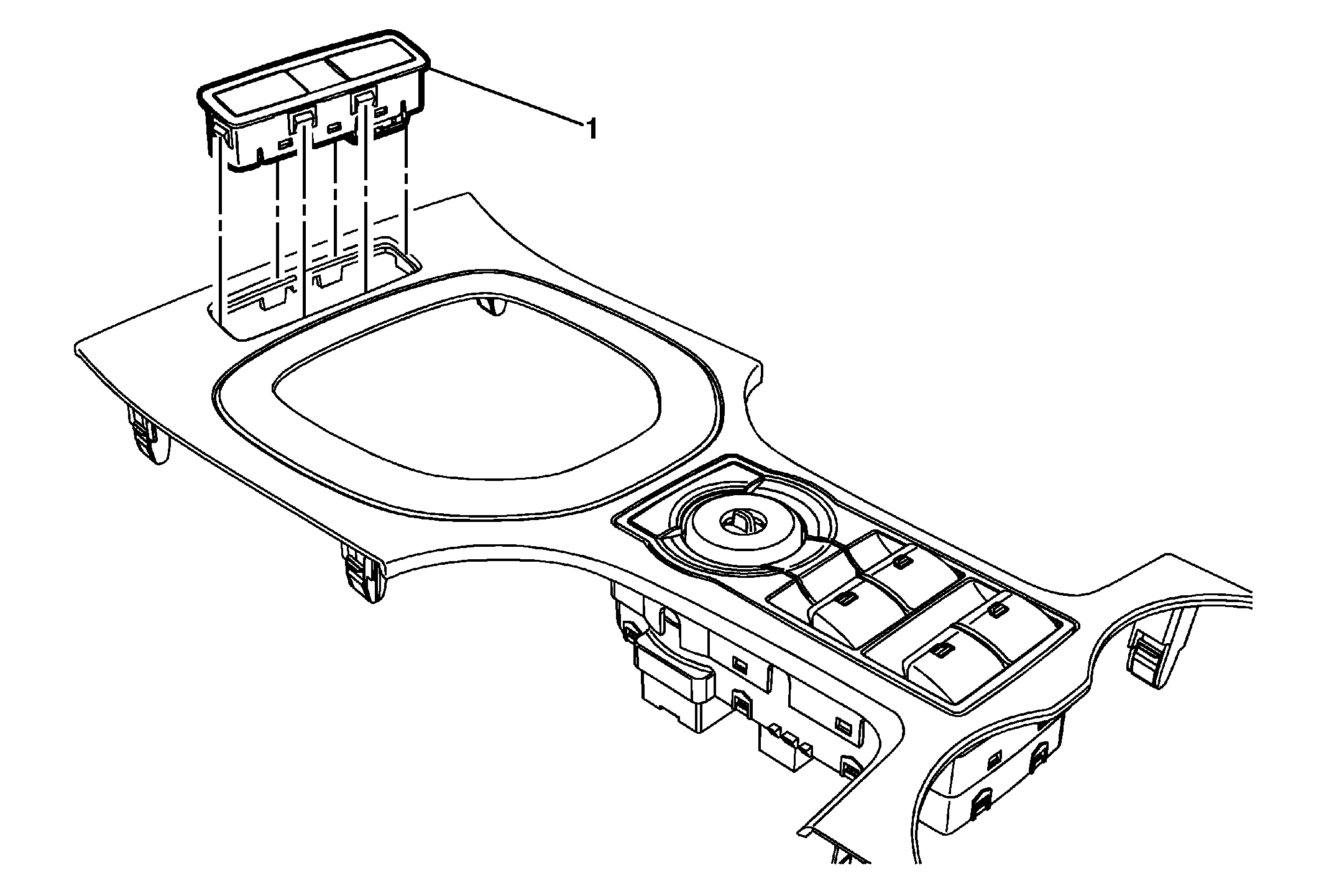

Fig 1: Accessory Switch (9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate. Refer to Console Trim Plate Replacement (9C3) .
1	Accessory Switch Procedure Disconnect electrical connector. Depressing six tabs, remove switch forward of cover.

Callout

Component Name

Preliminary Procedure
Remove the front floor console trim plate. Refer to Console Trim Plate Replacement (9C3) .

Accessory Switch

Procedure
