Instrument Cluster Wiring Schematics

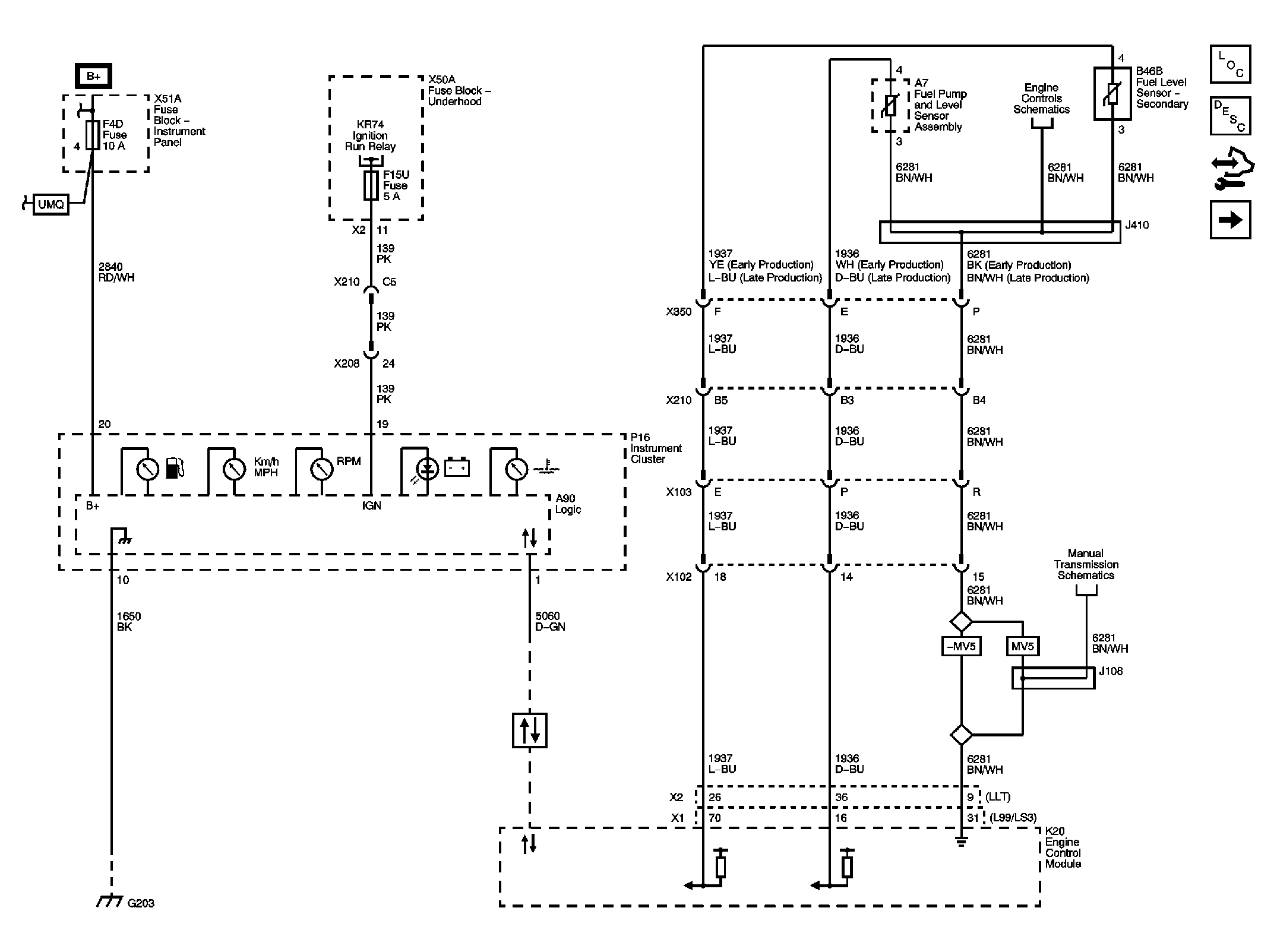

Fig 1: Gauges Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

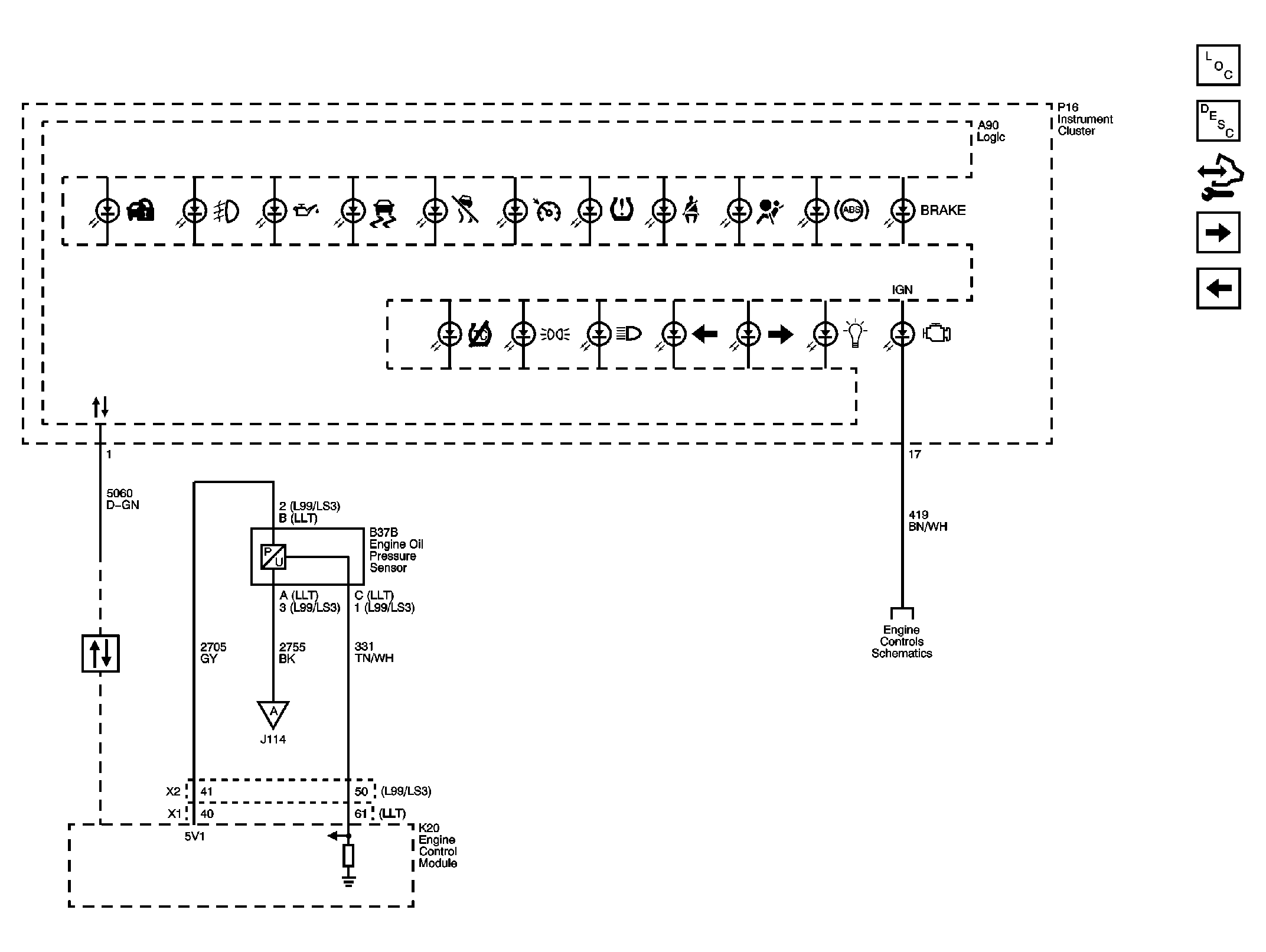

Fig 2: Indicators Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

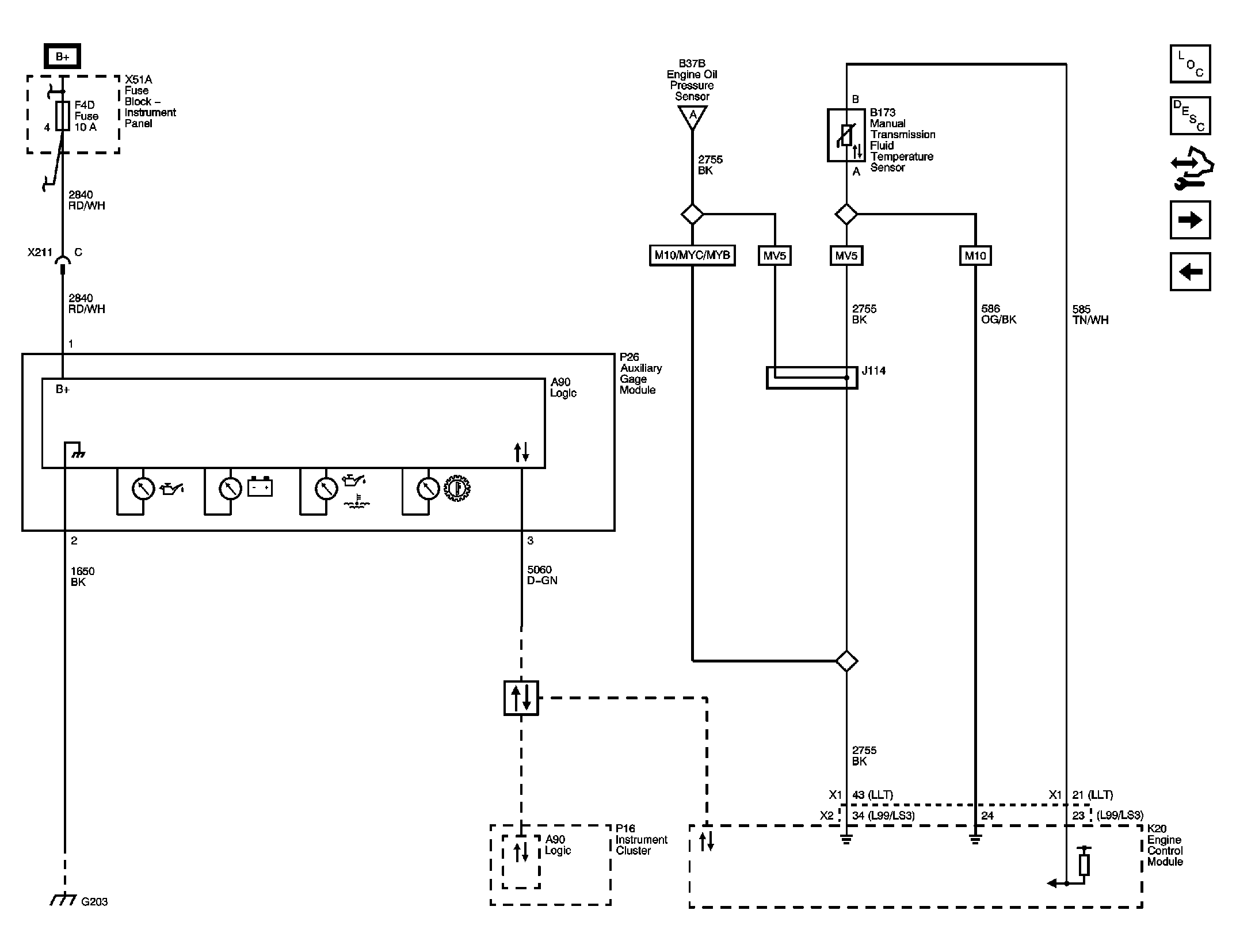

Fig 3: Auxiliary Gauge Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Driver Information Center Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
