Head Up Display Wiring Schematic

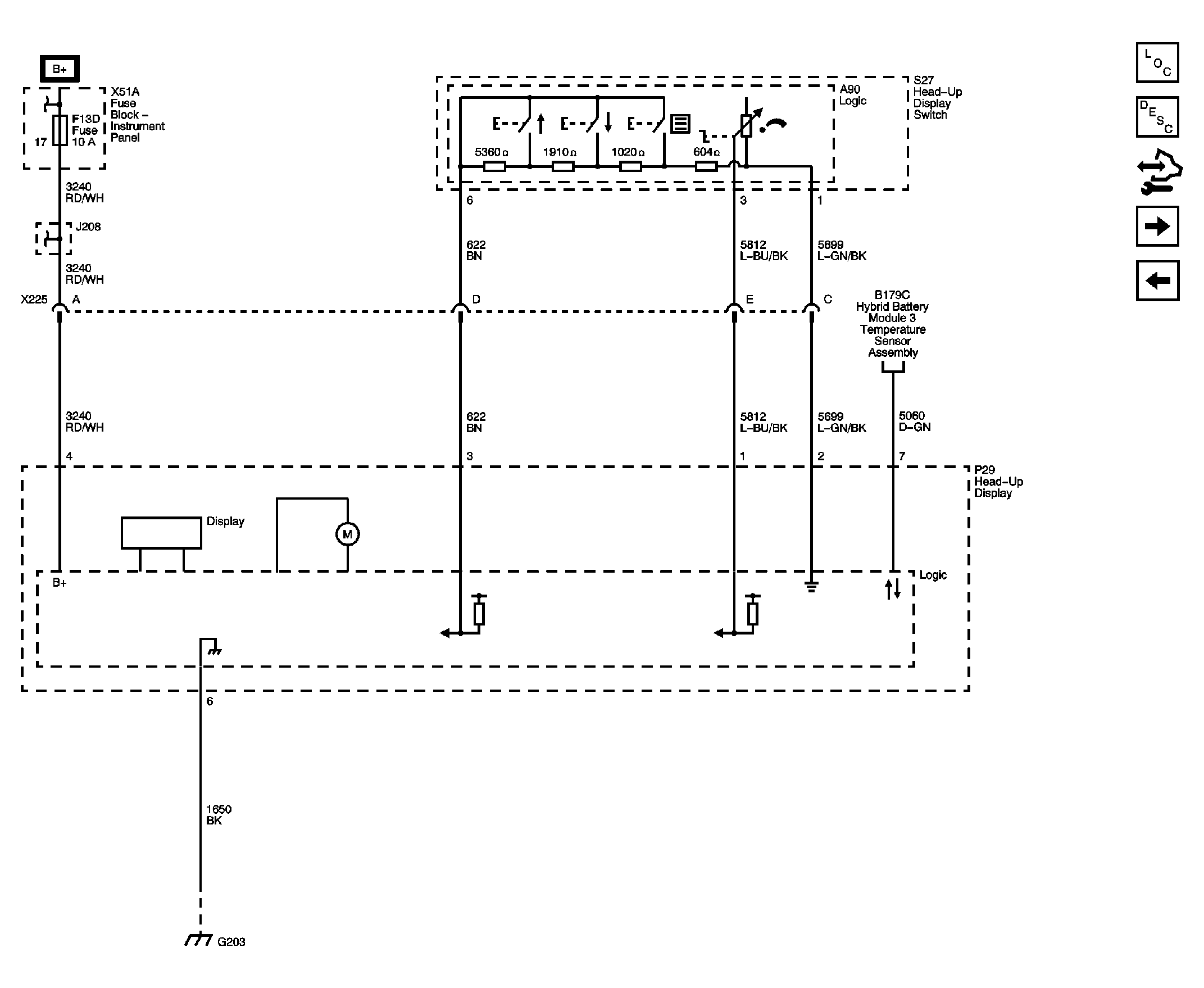

Fig 1: Head Up Display Wiring Schematic

GM2446884

Courtesy of GENERAL MOTORS CORP.
