Steering Wheel Replacement

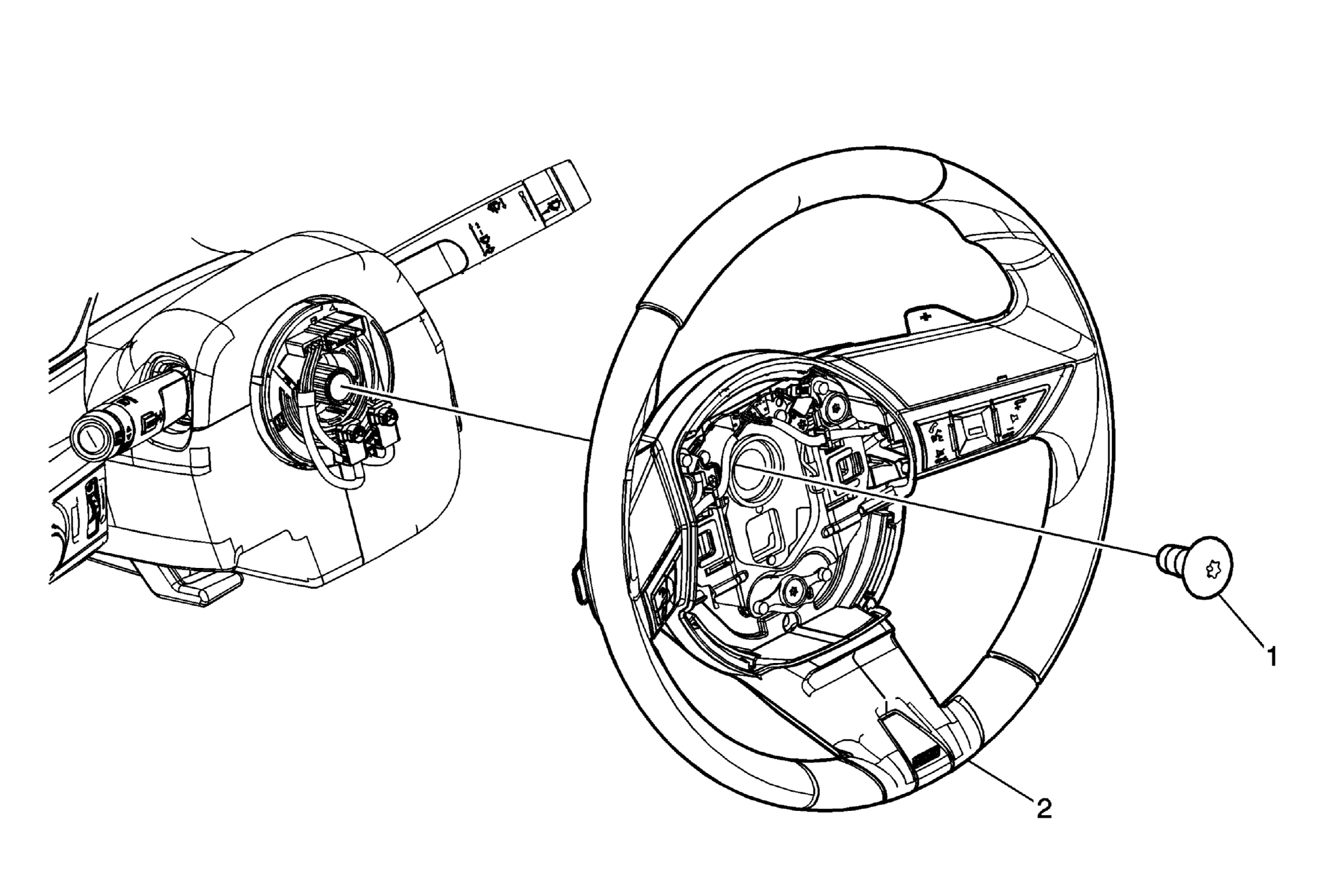

Fig 1: Steering Wheel And Bolt
GM2196553Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the steering wheel inflatable restraint module airbag. Refer to Steering Wheel Inflatable Restraint Module Airbag Replacement .
  2. Use paint in order to place match marks on the steering wheel and on the steering column shaft.
1 Steering Wheel Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  30 N.m (22 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect all electrical connectors as needed.
  2. Remove the steering wheel.
  3. Copy the match marks from the old steering wheel to the new steering wheel.
  4. Transfer any parts as needed.
