Audible Warnings Wiring Schematic

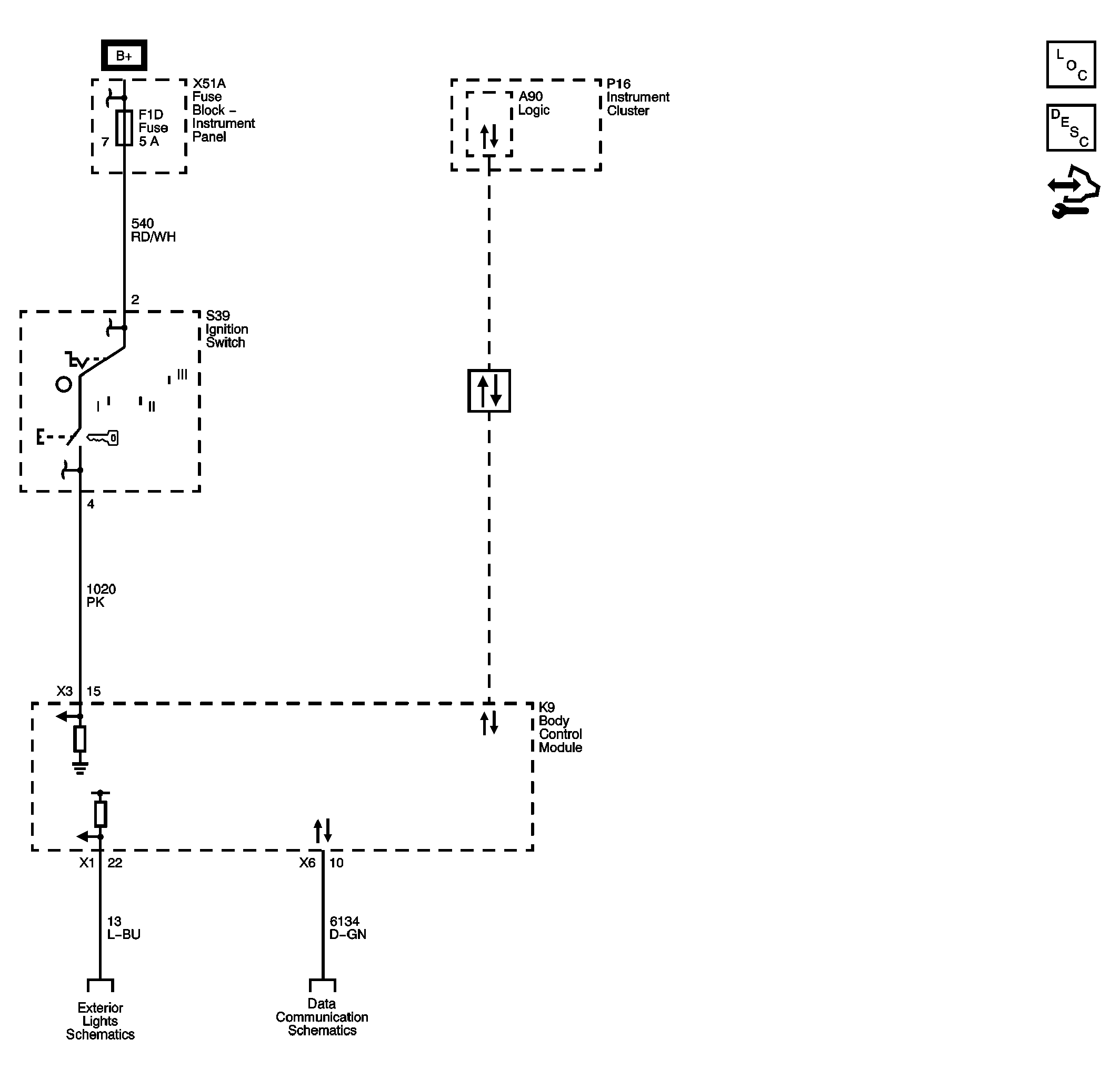

Fig 1: Audible Warnings Wiring Schematic

GM2404185

Courtesy of GENERAL MOTORS CORP.
