Luggage Carrier Side Rail Rear Finish Cover Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

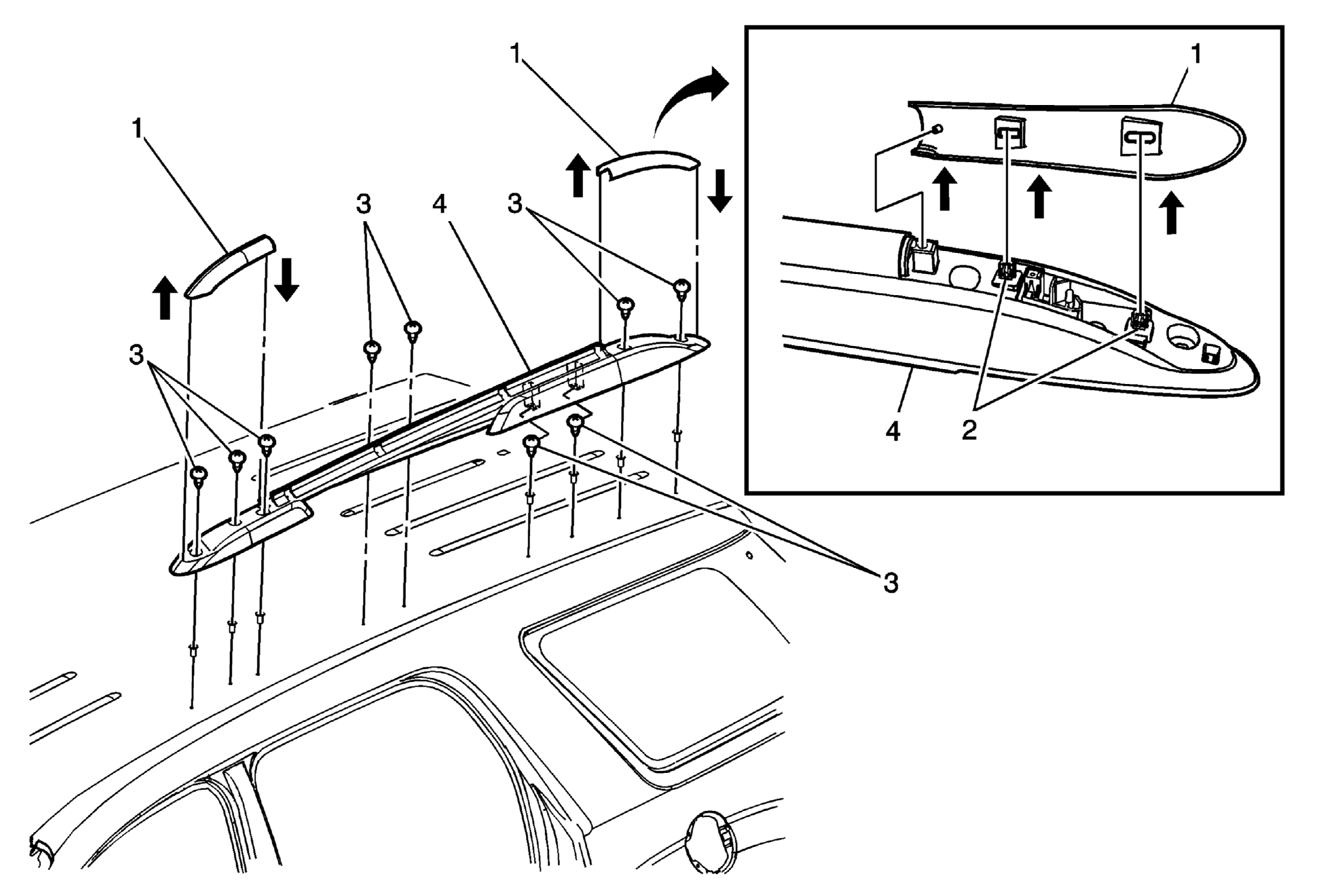

| Callout | Component Name |
|---|---|
| 1 | Front Luggage Carrier Finish Cover (Qty: 3) Procedure The luggage carrier finish cover does not have a push in pin release. The cover can be removed by using a flat bladed tool. Carefully pry upward on a corner of the cover releasing it fully from the clips. |
| 2 | Rear Luggage Carrier Finish Cover Clip (Qty: 2) |
| 3 | Luggage Carrier Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Procedure Lift the luggage carrier center cover to expose the screws under it.
NOTE:
After removing the luggage carrier rail fasteners, Do not allow the rail to slide downward causing damage to the roof surface. Tighten 5 N.m (44 lb in). |
| 4 | Luggage Carrier Rail
NOTE:
When installing the luggage carrier finish cover, align the pilot pin to the hole in the luggage carrier rail, push downward fully seating the cover on the clips. |
