Steering Gear Valve Solenoid Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

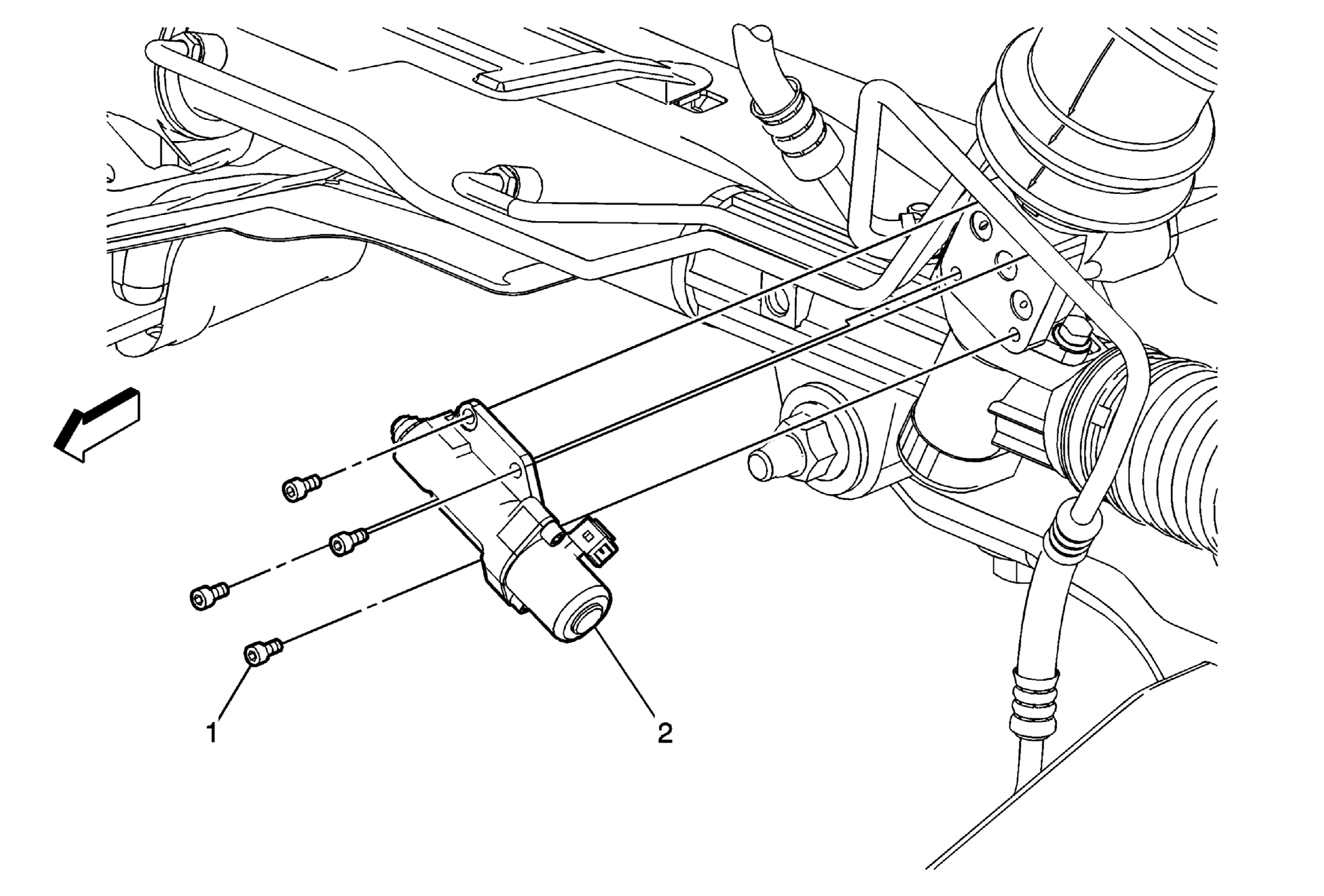

Fig 1: Steering Gear Valve Solenoid

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Hoist the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Steering Gear Valve Solenoid Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Steering Gear Valve Solenoid Procedure Disconnect any electrical connectors as needed. Transfer or replace any O-ring seals as needed.

Callout

Component Name

Preliminary Procedure
Hoist the vehicle. Refer to Lifting and Jacking the Vehicle .

Steering Gear Valve Solenoid Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Steering Gear Valve Solenoid

Procedure

Disconnect any electrical connectors as needed.
Transfer or replace any O-ring seals as needed.
