Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Air Inlet Grille Panel
    GM1864983Courtesy of GENERAL MOTORS COMPANY
  1. Remove Air Inlet Grille Panel (2). Air Inlet Grille Panel Replacement
  2. Disconnect the electrical connector.

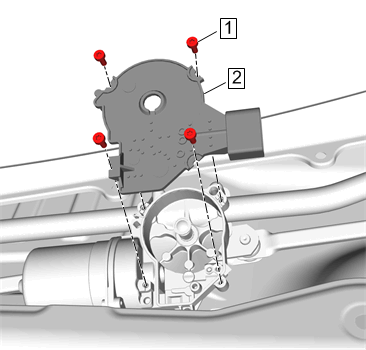

    3. Fig 2: Windshield Wiper Motor Cover Fastener
    GM4292087Courtesy of GENERAL MOTORS COMPANY
  3. Remove Windshield Wiper Motor Cover Fastener (1).
  4. Remove Windshield Wiper Motor Cover (2).
