Windshield Washer Solvent Container Replacement (Acadia and Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

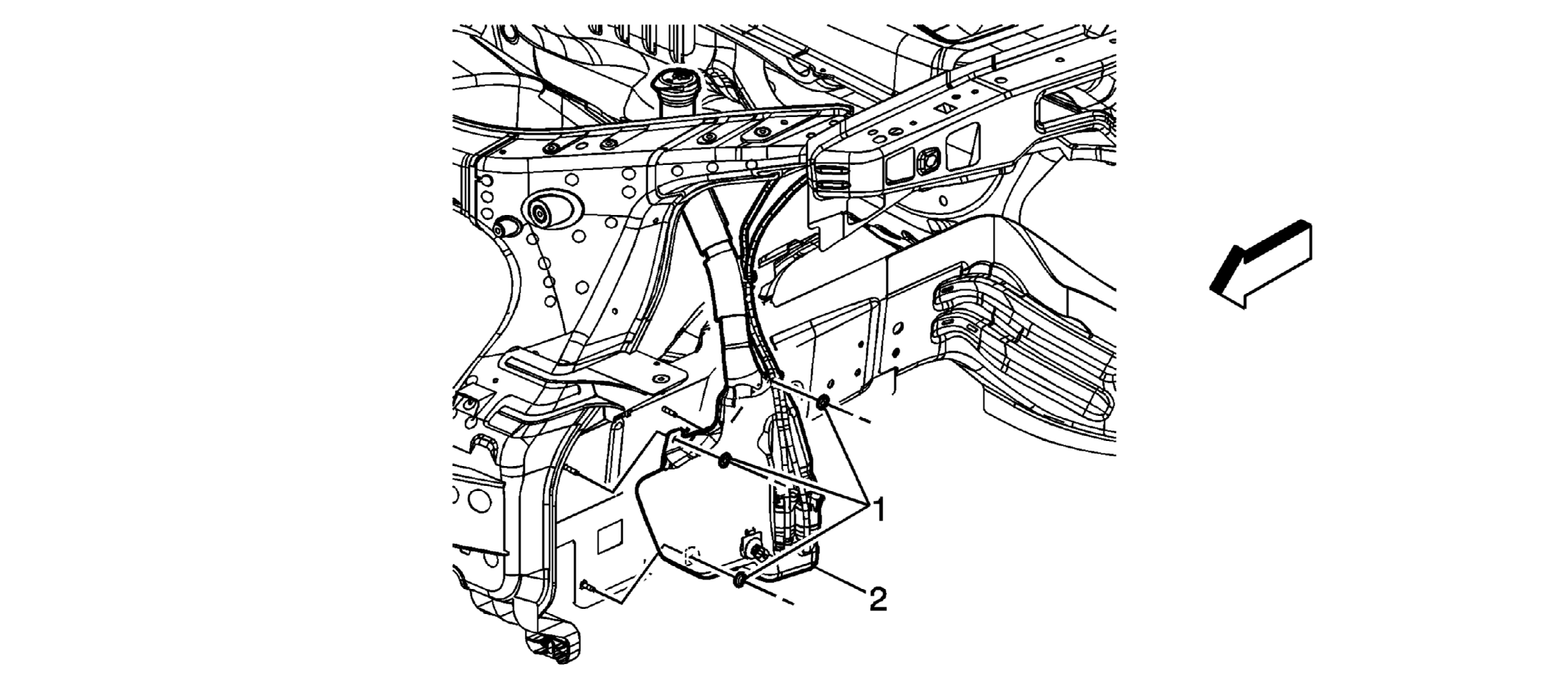

Fig 1: Windshield Washer Solvent Container (Acadia And Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Disconnect the washer pump hoses. Drain the washer solvent into a suitable clean container. Disconnect the washer pump electrical connectors. Disconnect the windshield washer level indicator electrical connector. Disconnect the upper neck from the lower portion of the washer solvent container.
1	Windshield Washer Solvent Container Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Windshield Washer Solvent Container Procedure Remove the container from the front side rail studs. Transfer the washer pumps as needed. Transfer the level indicator as needed.

Callout

Component Name

Preliminary Procedures

Remove the left front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Disconnect the washer pump hoses.
Drain the washer solvent into a suitable clean container.
Disconnect the washer pump electrical connectors.
Disconnect the windshield washer level indicator electrical connector.
Disconnect the upper neck from the lower portion of the washer solvent container.

Windshield Washer Solvent Container Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Windshield Washer Solvent Container

Procedure

Remove the container from the front side rail studs.
Transfer the washer pumps as needed.
Transfer the level indicator as needed.
