Windshield Washer Hose Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

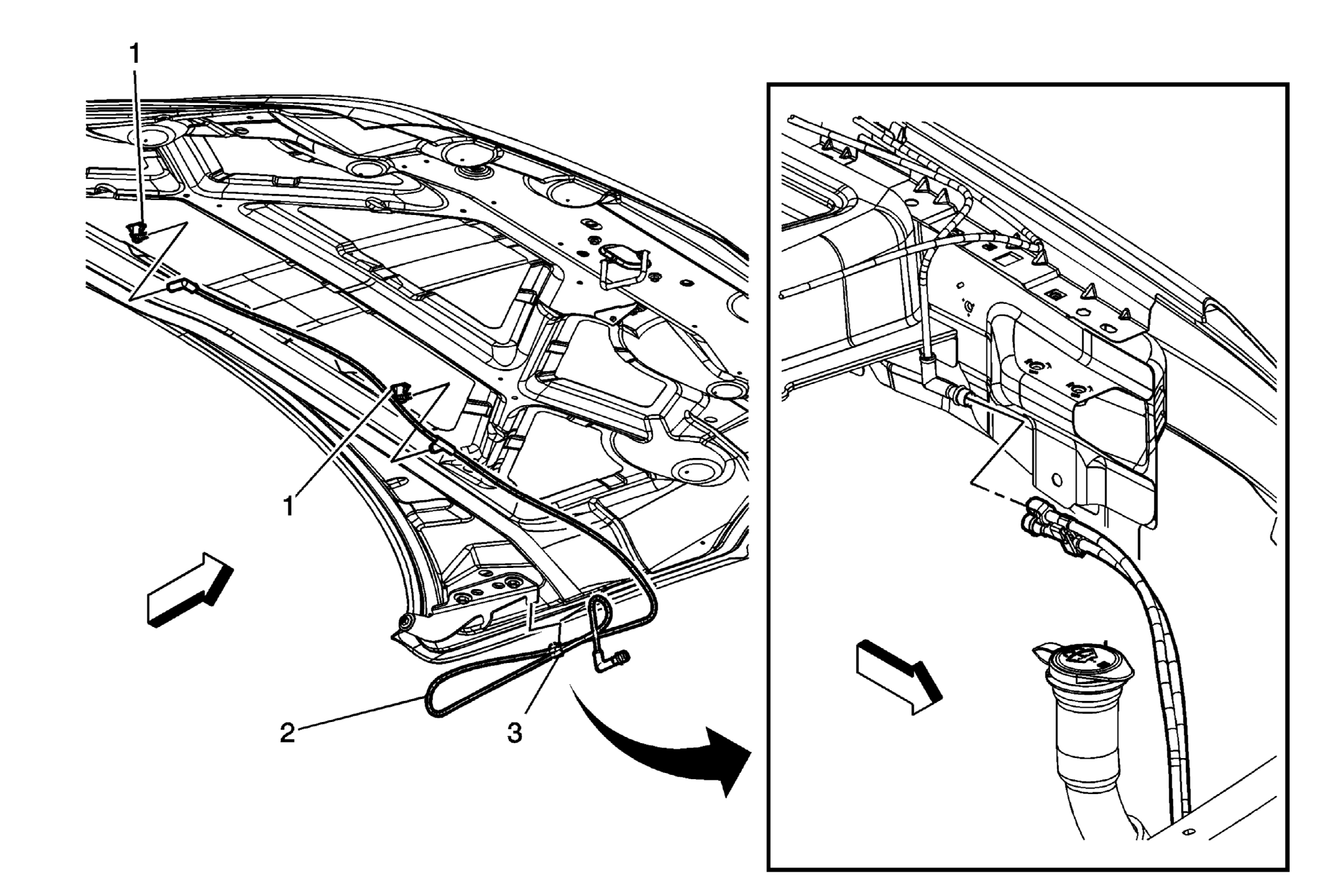

Fig 1: Windshield Washer Hose And Nozzle (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood insulator. Refer to Hood Insulator Replacement (Enclave) .
1	Windshield Washer Nozzle Procedure Disconnect the washer hose from the washer nozzles.
2	Windshield Washer Hose Assembly
3	Windshield Washer Hose Hood Hinge Clip Procedure Disconnect the integral clip from the driver side hood hinge in order to release the hose from the hinge. Disconnect the washer hose from the washer pump hose connection.
