Rear Window Wiper Arm Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

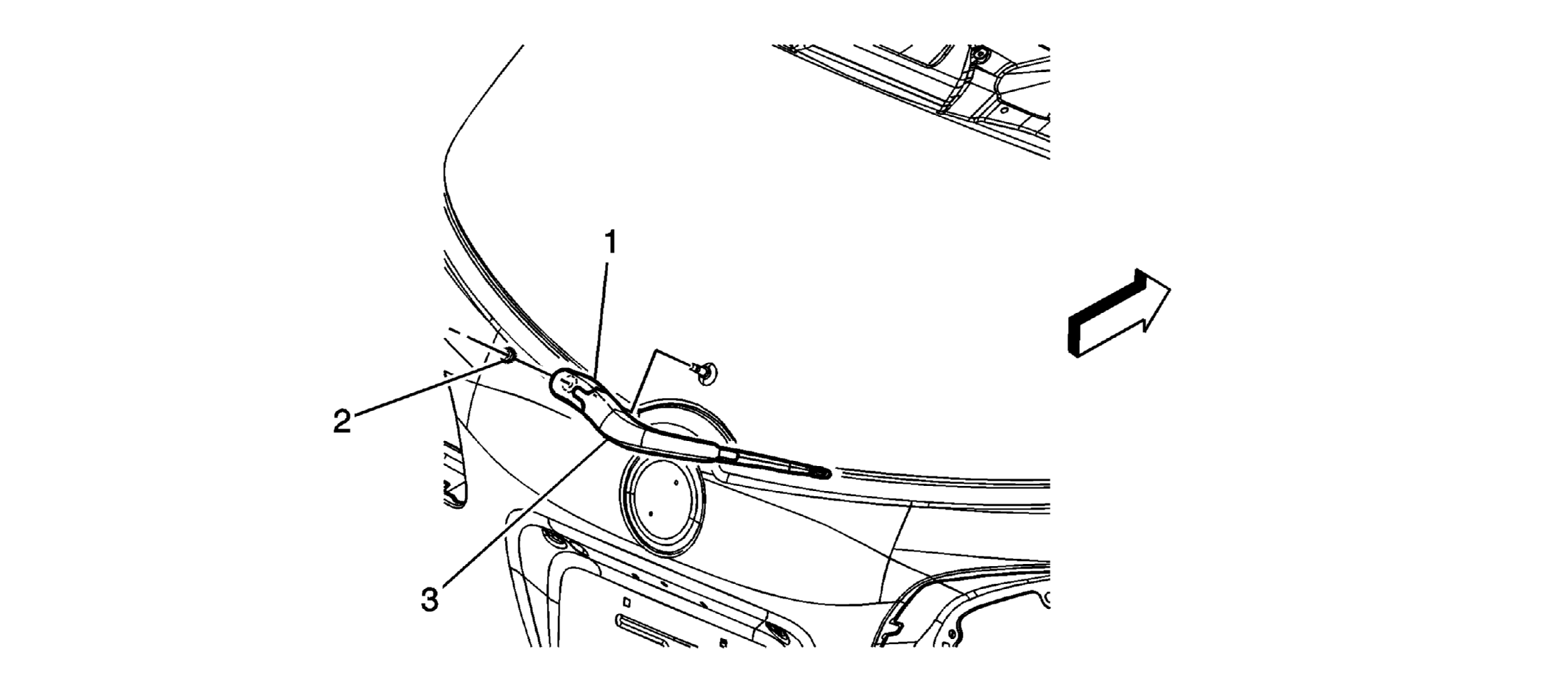

Fig 1: Rear Window Wiper Arm (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Wiper Arm Finish Cap TIP: Lift up on rearward end of cap to disengage from rear wiper arm.
2	Rear Window Wiper Arm Nut CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove the wiper arm pivot shaft nut. Pivot the wiper arm in order to remove. Clean the knurls on the pivot shaft prior to installing the arm to the pivot shaft. Position the arm on the pivot shaft and the wiper blade to the first defroster grid line. Hold the wiper arm in position while securing the wiper arm nut. Tighten 10.5 N.m (93 lb in)
3	Rear Window Wiper Arm Blade Assembly

Callout

Component Name

Rear Wiper Arm Finish Cap
TIP: Lift up on rearward end of cap to disengage from rear wiper arm.

Rear Window Wiper Arm Nut

CAUTION:

Refer to Fastener Caution .

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure

Remove the wiper arm pivot shaft nut.
Pivot the wiper arm in order to remove.
Clean the knurls on the pivot shaft prior to installing the arm to the pivot shaft.
Position the arm on the pivot shaft and the wiper blade to the first defroster grid line.
Hold the wiper arm in position while securing the wiper arm nut.

Tighten
10.5 N.m (93 lb in)

Rear Window Wiper Arm Blade Assembly
