Rear Window Washer Pump Replacement (Acadia and Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

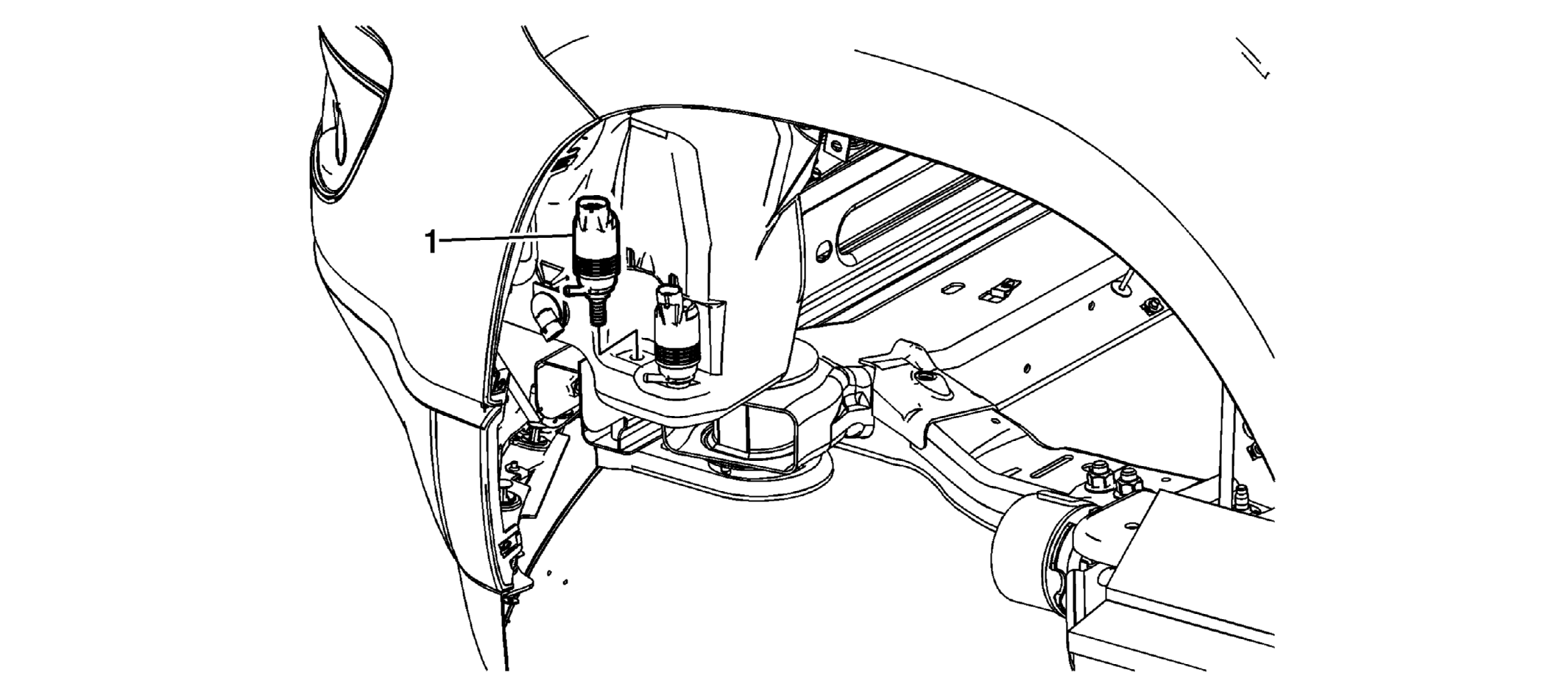

Fig 1: Rear Window Washer Pump (Acadia And Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the LF wheelhouse liner in order to access the washer pumps. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . Drain the washer solvent into a clean suitable container. Disconnect the electrical connector. Disconnect the washer pump hose.
1	Rear Window Washer Pump Assembly Procedure Using two flat-bladed tools, at the pump gasket, pry upwards until the washer pump is disengaged from the windshield washer container. Discard the washer pump grommet.

Callout

Component Name

Preliminary Procedures

Remove the LF wheelhouse liner in order to access the washer pumps. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
Drain the washer solvent into a clean suitable container.
Disconnect the electrical connector.
Disconnect the washer pump hose.

Rear Window Washer Pump Assembly

Procedure

Using two flat-bladed tools, at the pump gasket, pry upwards until the washer pump is disengaged from the windshield washer container.
Discard the washer pump grommet.
