Control Valve Body Kit 24256111
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

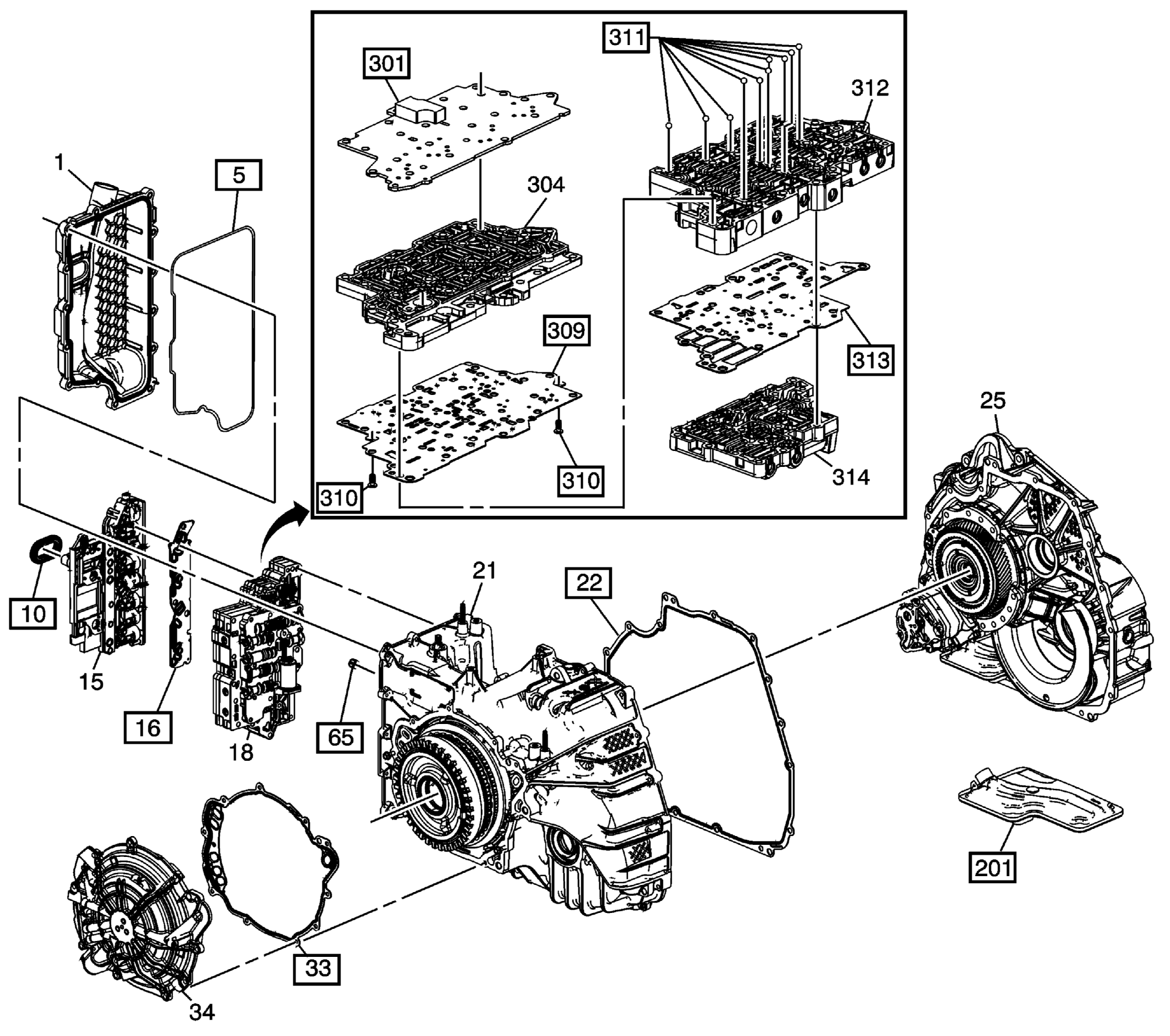

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Control Valve Body Kit 24256111
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | Control Valve Body Cover Assembly Gasket |
| 10 | 1 | Control Valve Body Cover Wiring Connector Hole Seal |
| 16 | 1 | Control Solenoid (w/Body and TCM) Filter Plate Assembly |
| 22 | 1 | Torque Converter Housing Outer Seal |
| 33 | 1 | A/Trans Case Cover Gasket |
| 65 | 1 | 1-2-3-4 Clutch Fluid Passage Seal |
| 201 | 1 | A/Trans Fluid Filter Assembly |
| 301 | 1 | Control Valve Channel Upper Plate Assembly |
| 309 | 1 | Control Valve Upper Body Spacer Plate Assembly |
| 310 | 2 | Control Valve Upper Body Spacer Plate Retainer |
| 311 | 10 | Control Valve Body Ball Check Valve |
| 313 | 1 | Control Valve Lower Body Spacer Plate Assembly |
