Control Valve Body Kit 24248118
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

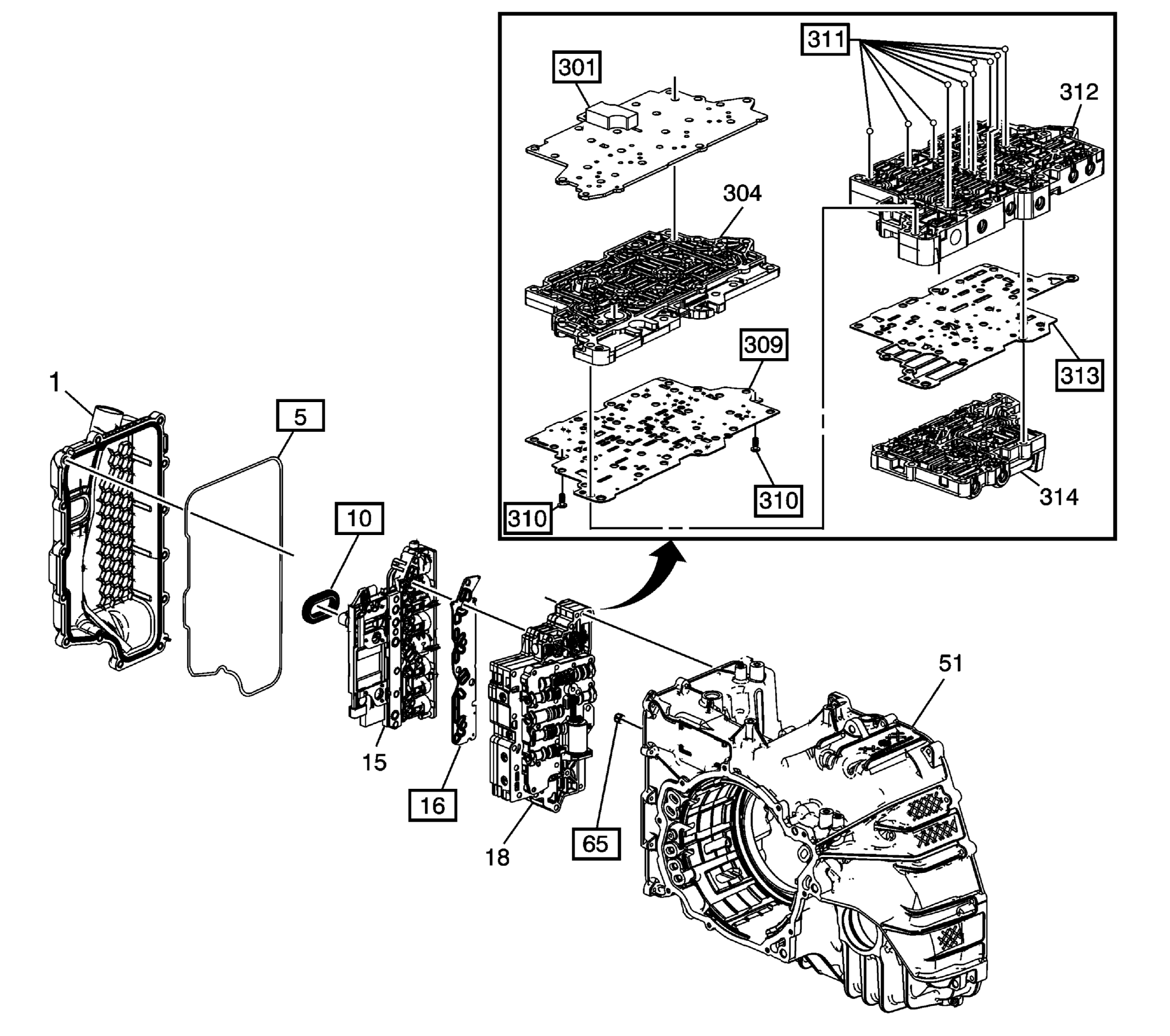

Control Valve Body Kit 24248118
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | Control Valve Body Cover Assembly Gasket |
| 10 | 1 | Control Valve Body Cover Wiring Connector Hole Seal |
| 16 | 1 | Control Solenoid (w/Body and TCM) Filter Plate Assembly |
| 65 | 1 | 1-2-3-4 Clutch Fluid Passage Seal |
| 301 | 1 | Control Valve Channel Upper Plate Assembly |
| 309 | 1 | Control Valve Upper Body Spacer Plate Assembly |
| 310 | 2 | Control Valve Upper Body Spacer Plate Retainer |
| 311 | 10 | Control Valve Body Ball Check Valve |
| 313 | 1 | Control Valve Lower Body Spacer Plate Assembly |
