Clutch Plate Pack 24240100
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

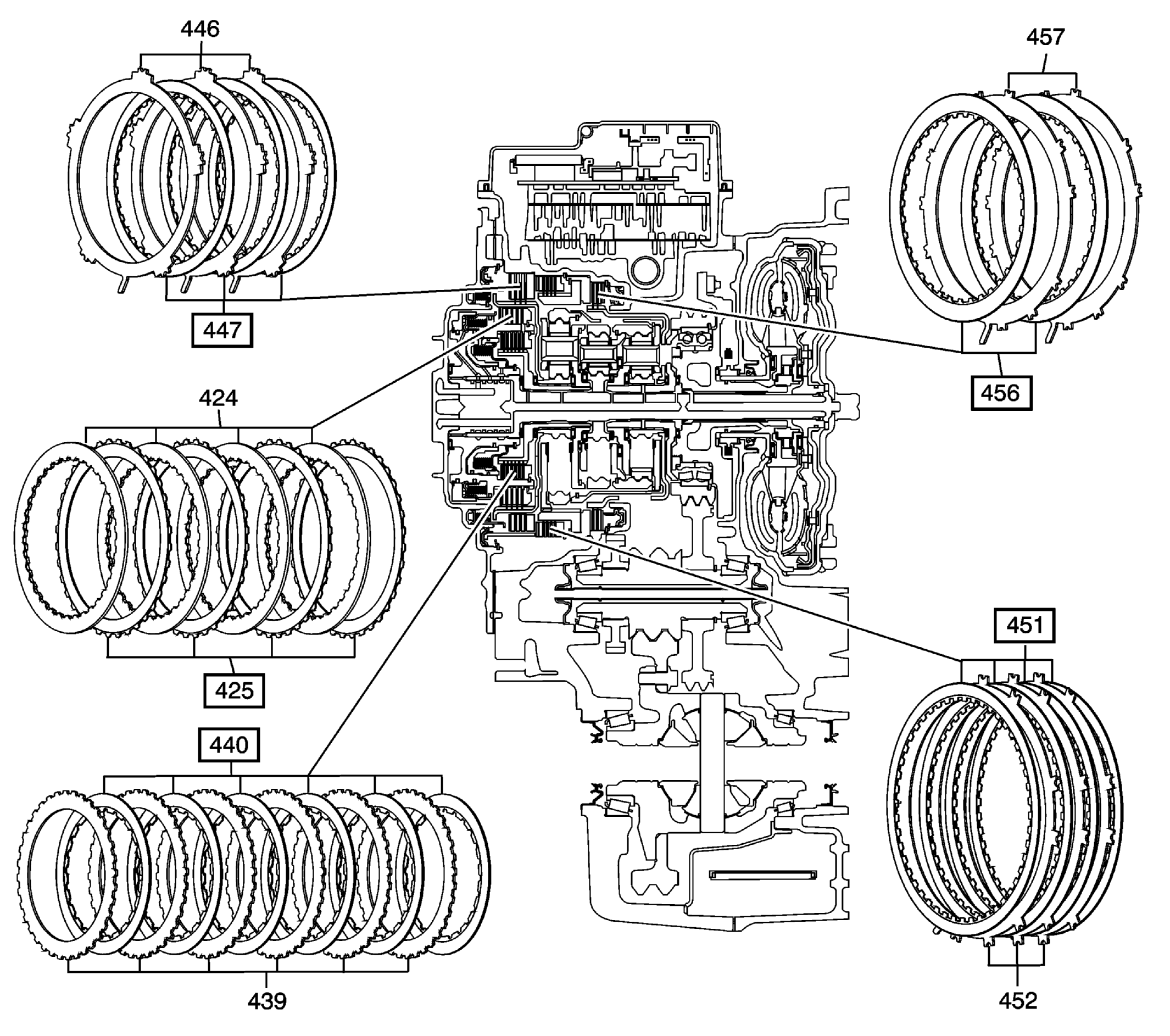

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Clutch Plate Pack 24240100
| Callout | Quantity | Component Name |
|---|---|---|
| 425 | 4 | 3-5-Reverse Clutch (w/Friction Material) Plate Assembly |
| 440 | 6 | 4-5-6 Clutch (w/Friction Material) Plate Assembly |
| 447 | 3 | 2-6 Clutch (w/Friction Material) Plate Assembly |
| 451 | 4 | Low and Reverse Clutch (w/Friction Material) Plate Assembly |
| 456 | 2 | 1-2-3-4 Clutch (w/Friction Material) Plate Assembly |
