A/Trans Service Seal Kit 24240106
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

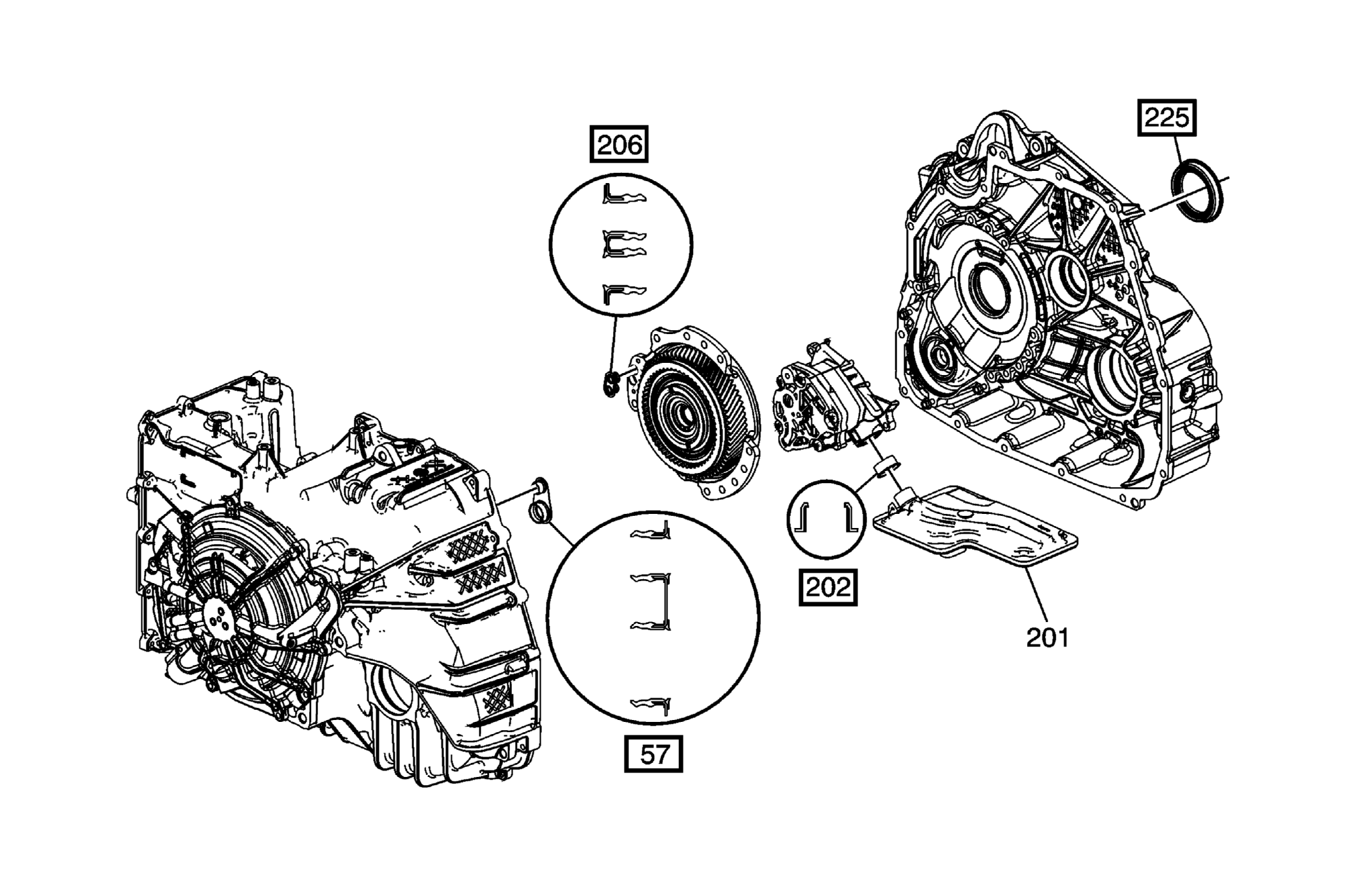

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Service Seal Kit 24240106
| Callout | Quantity | Component Name |
|---|---|---|
| 57 | 1 | A/Trans Pump Fluid Outlet Seal Assembly |
| 202 | 1 | Filter Neck Seal |
| 206 | 1 | Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly |
| 225 | 1 | Torque Converter Fluid Seal Assembly |
| X | 1 | Front Wheel Drive Shaft Oil Seal Protector (Not Shown) |
