A/Trans Service Seal Kit 24240103
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

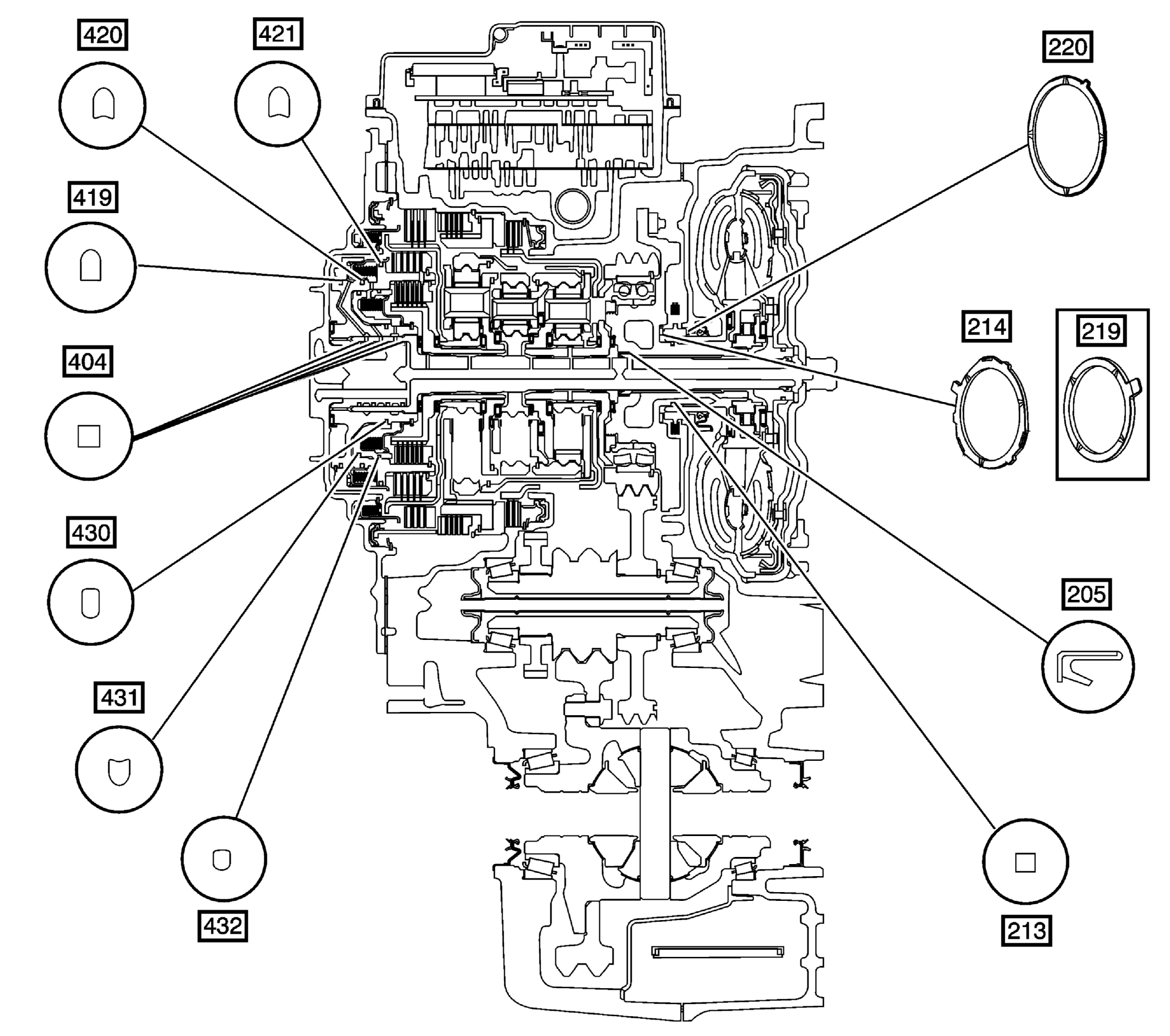

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Service Seal Kit 24240103
| Callout | Quantity | Component Name |
|---|---|---|
| 205 | 1 | Front Differential Transfer Drive Gear Support Seal Assembly |
| 213 | 1 | Front Differential Transfer Drive Gear Support Seal |
| 214 | 1 | Drive Sprocket Thrust Washer |
| 219 | 1 | Drive Sprocket Thrust Washer |
| 220 | 1 | Drive Sprocket Thrust Washer |
| 404 | 4 | 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring |
| 419 | 1 | 3-5-Reverse Clutch Piston Inner Seal |
| 420 | 1 | 3-5-Reverse Clutch Piston Inner Seal |
| 421 | 1 | 3-5-Reverse Clutch Piston Dam Seal |
| 430 | 1 | 4-5-6 Clutch Piston Inner Seal |
| 431 | 1 | 4-5-6 Clutch Piston Outer Seal |
| 432 | 1 | 4-5-6 Clutch Piston Outer Seal |
| X | 2 | Trans Fluid Cooler Pipe Washer (Not Shown) |
