A/Trans Service Seal Kit 2 24240103
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

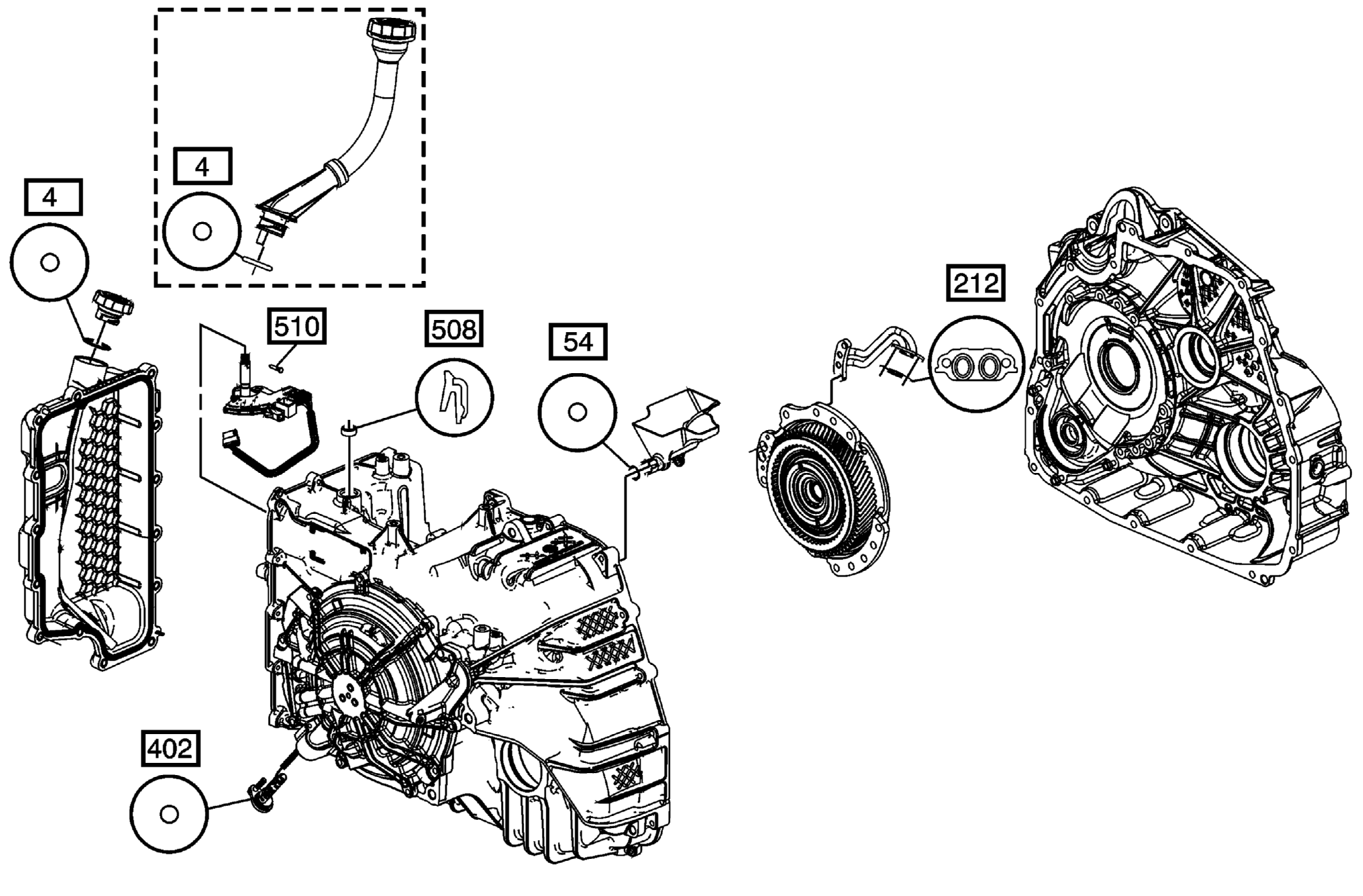

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Service Seal Kit 2 24240103
| Callout | Quantity | Component Name |
|---|---|---|
| 4 | 1 | Fluid Level Indicator Tube Seal - Model Dependent |
| 54 | 1 | A/Trans Fluid Trough O-Ring Seal |
| 212 | 1 | Front Differential Transfer Drive Gear Support Fluid Passage Tube Gasket |
| 402 | 1 | ISS O-Ring Seal |
| 508 | 1 | Manual Shift Shaft Seal |
| 510 | 1 | Manual Shift Shaft Pin |
