Ground Views: G401

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
G401

Items
1. G401

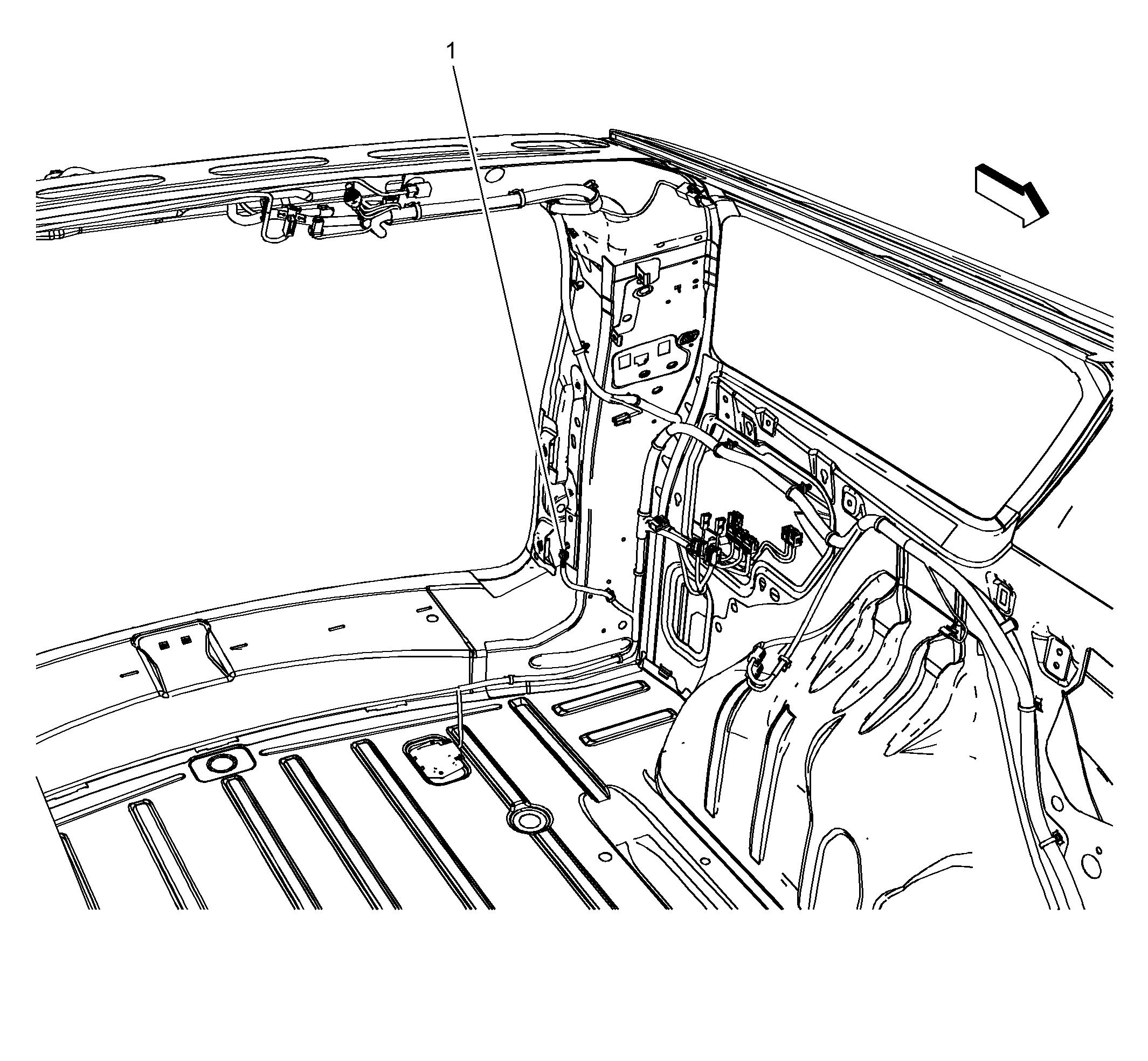

Fig 1: G401
GM2358150Courtesy of GENERAL MOTORS COMPANY
