G300, G301, G302, G303, G304, and G305

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
G300, G301, G302, G303, G304, and G305

Items
1. G300
2. G302
3. G305
4. G304
5. G303
6. G301

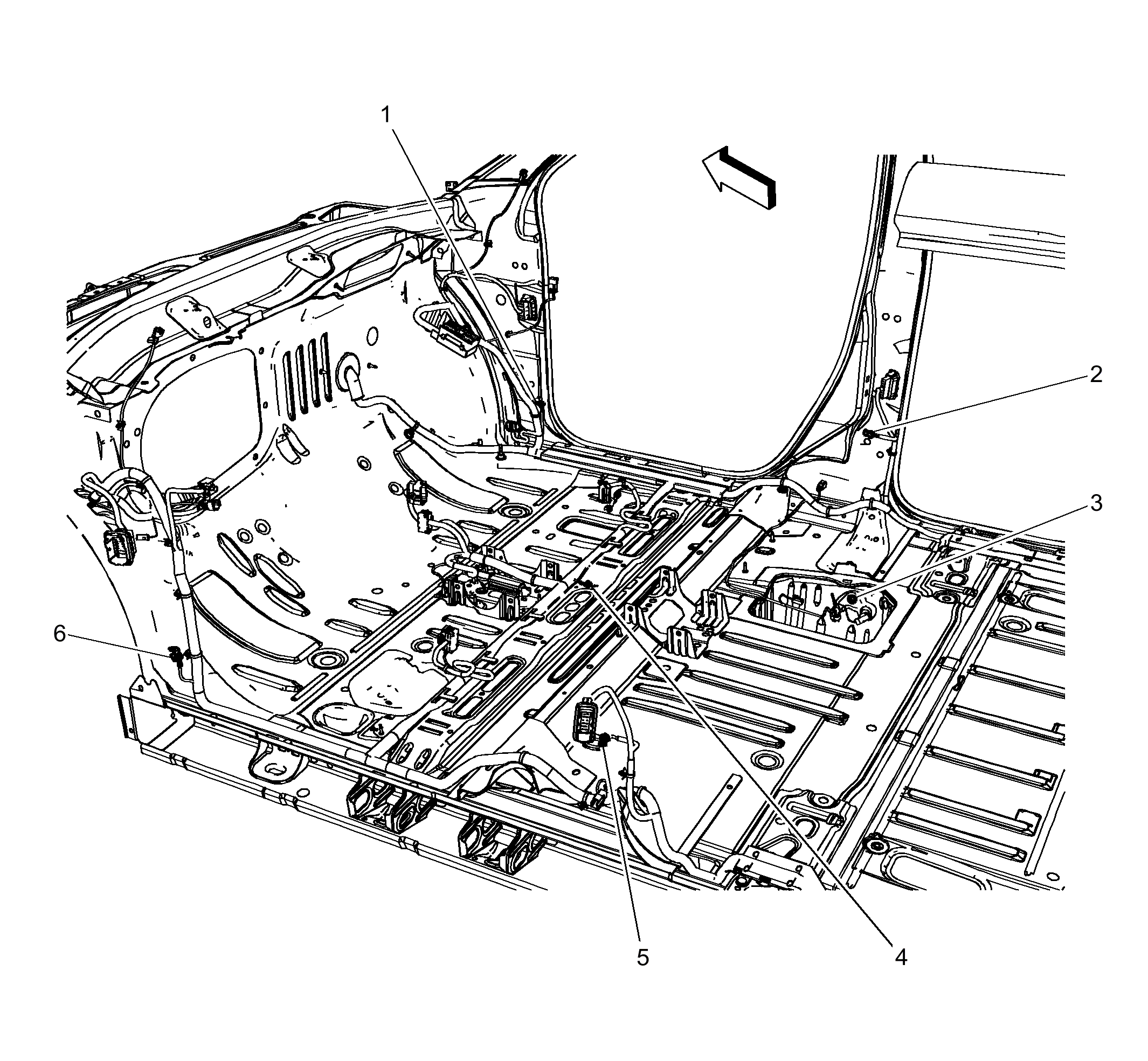

Fig 1: G300, G301, G302, G303, G304, and G305
GM2358159Courtesy of GENERAL MOTORS COMPANY
