G113 and G114

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
G113 and G114

Items
1. G114
2. G113

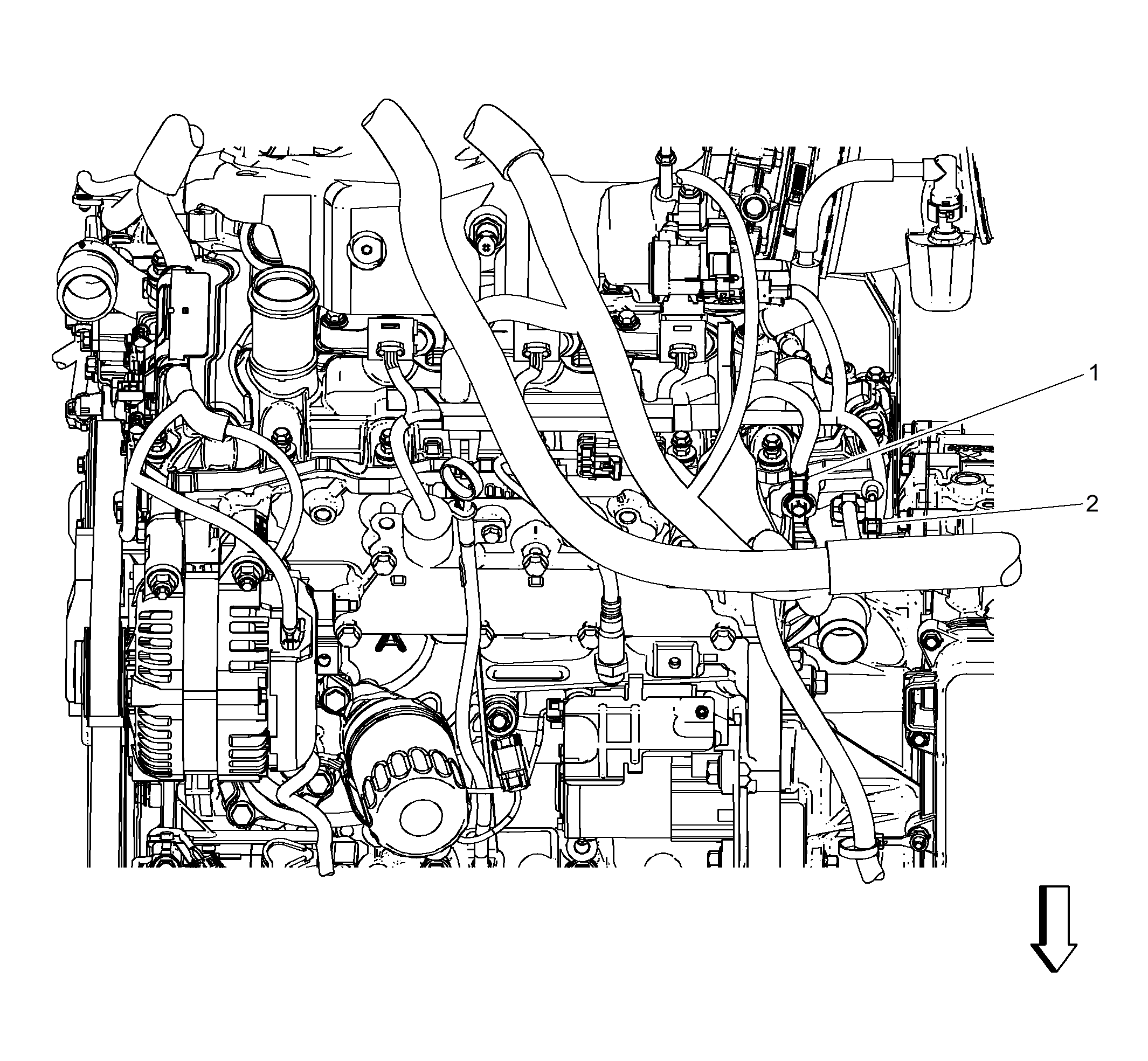

Fig 1: G113 and G114
GM2358157Courtesy of GENERAL MOTORS COMPANY
