G102 and G103

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
G102 and G103

Items
1. G102
2. G103

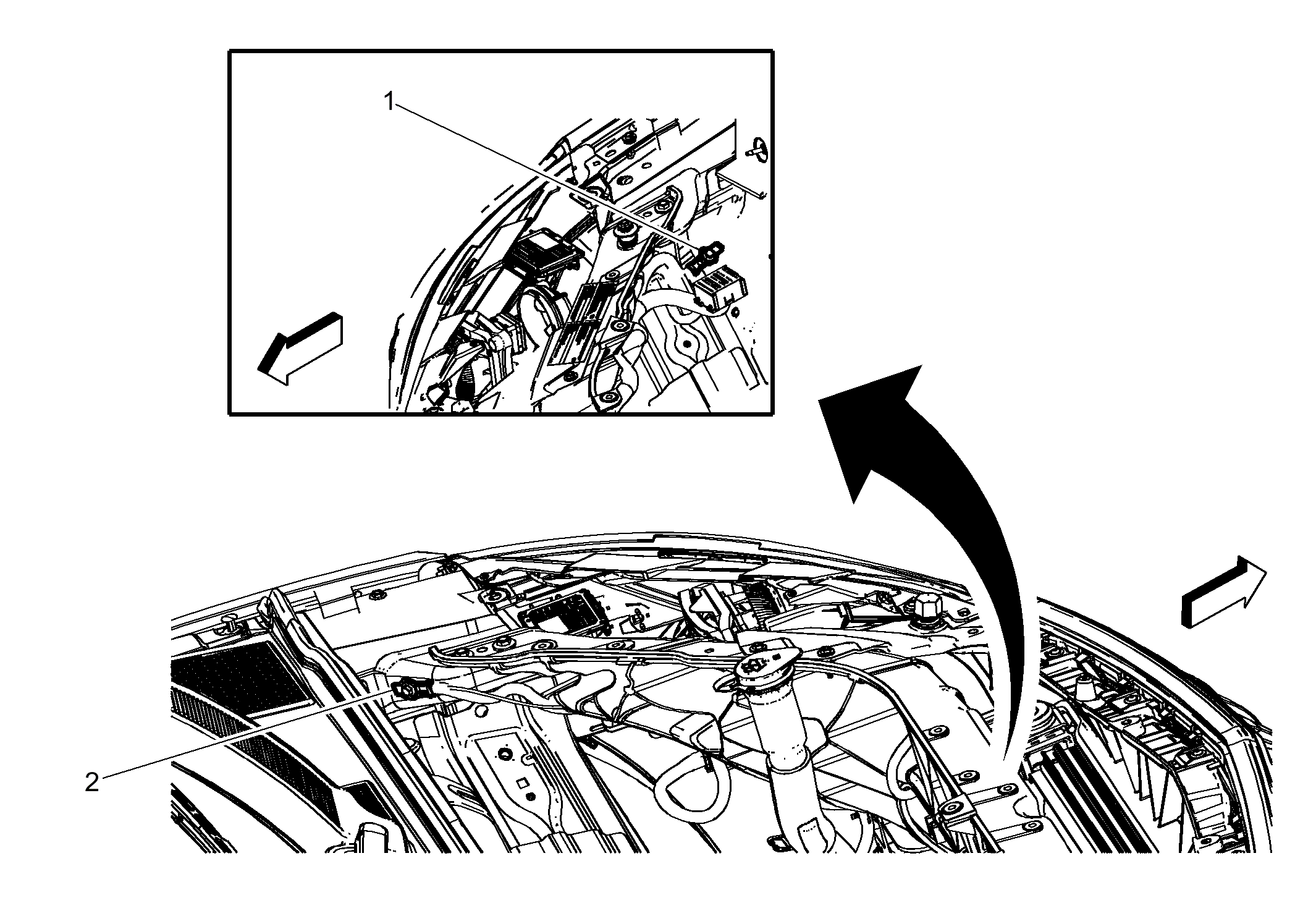

Fig 1: G102 and G103
GM2358153Courtesy of GENERAL MOTORS COMPANY
