G101, G103, G105, and G115

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
G101, G103, G105, and G115

Items
1. G103
2. G101
3. G115
4. G105

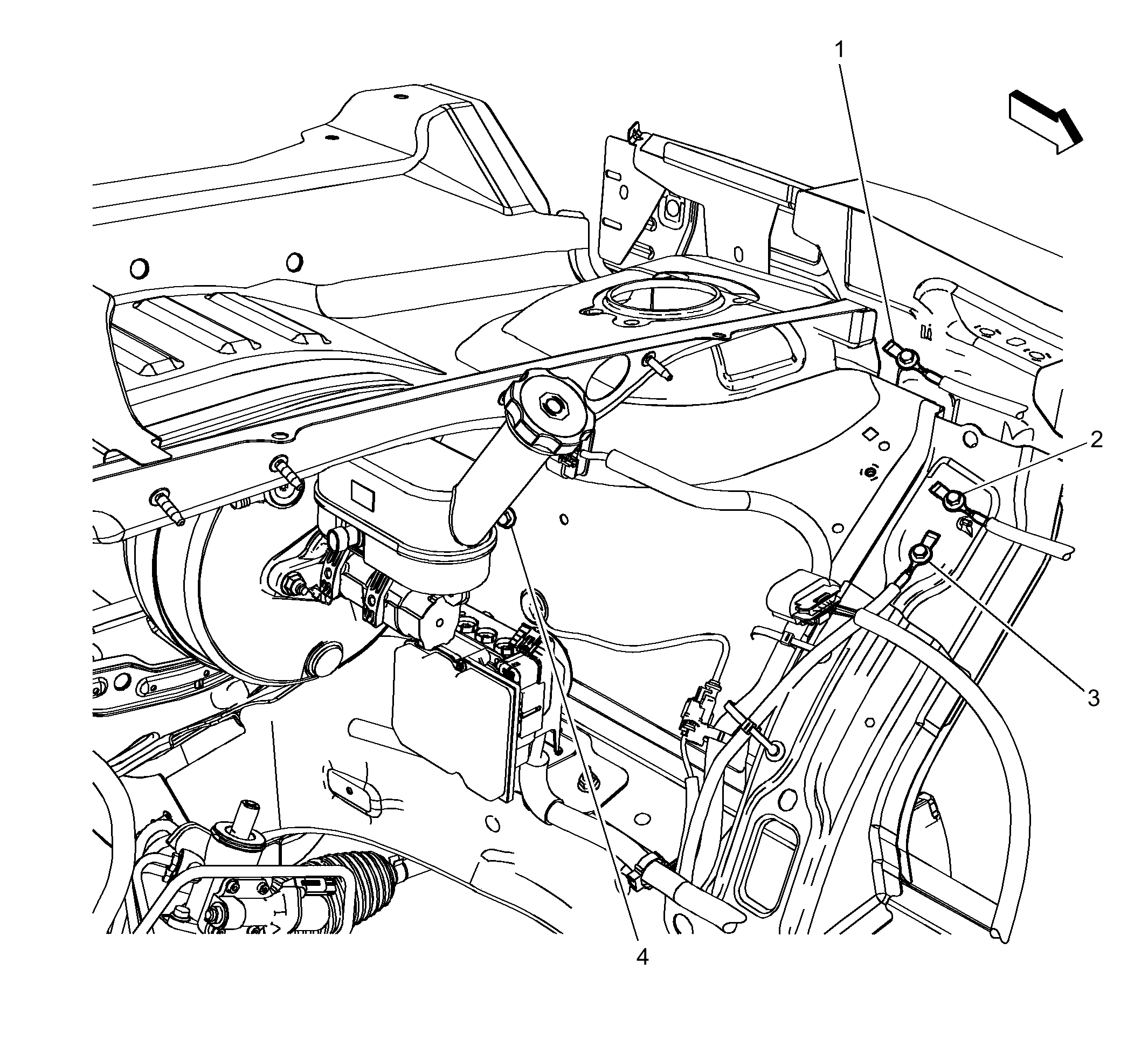

Fig 1: G101, G103, G105, and G115
GM2358155Courtesy of GENERAL MOTORS COMPANY
