X933 License Lamp Harness to Liftgate Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

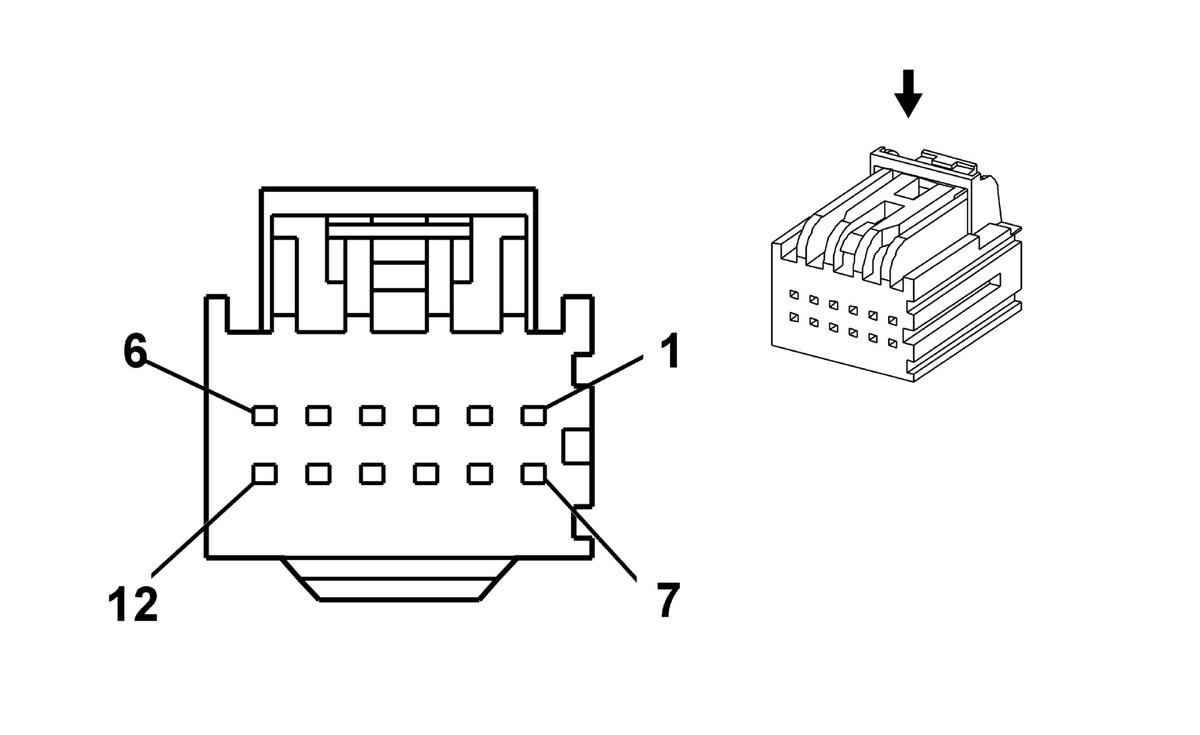

Connector Part Information Harness Type: License Lamp OEM Connector: 7283-7696-40 Service Connector: Service by Harness - See Part Catalog Description: 12-Way F 0.64 YESC Series (L-GY)	Connector Part Information Harness Type: Liftgate OEM Connector: 7282-7696-40 Service Connector: Service by Harness - See Part Catalog Description: 12-Way M (L-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	Not Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-65B (LT BU)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	PK	6972	I	UVC	Camera Signal 2 +	1	0.35	PK	6972	II	-
2	0.35	BARE	6974	I	UVC	Camera Low Reference	2	0.35	BARE	6974	II	-
3	-	-	-	-	-	Rear Lift Gate Open/Close Switch Signal	3	0.35	GY/BK	6113	II	-
4	0.5	VT	709	I	X88	Left Park Lamp Control	4	0.5	VT	709	II	-
5	0.5	BK	650	I	X88	Ground	5	0.5	BK	650	II	-
6	0.35	L-BU	6973	I	UVC	Camera Signal 2	6	0.35	L-BU	6973	II	-
7	-	-	-	-	-	Lift Gate Object Sensor Low Reference	7	0.35	VT/WH	5801	II	TB5+W49
8	0.35	PK/BK	300	I	UVC	Run Ignition 3 Voltage	8	0.35	PK/BK	300	II	-
9	0.35	BK	650	I	UVC	Ground	9	0.35	BK	650	II	UVC
10	0.35	D-BU	38	I	UVC	Backup Lamp Relay Control	10	0.5	D-BU	38	II	-
11 - 12	-	-	-	-	-	Not Occupied	11 - 12	-	-	-	-	-
