X340 Floor Console Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

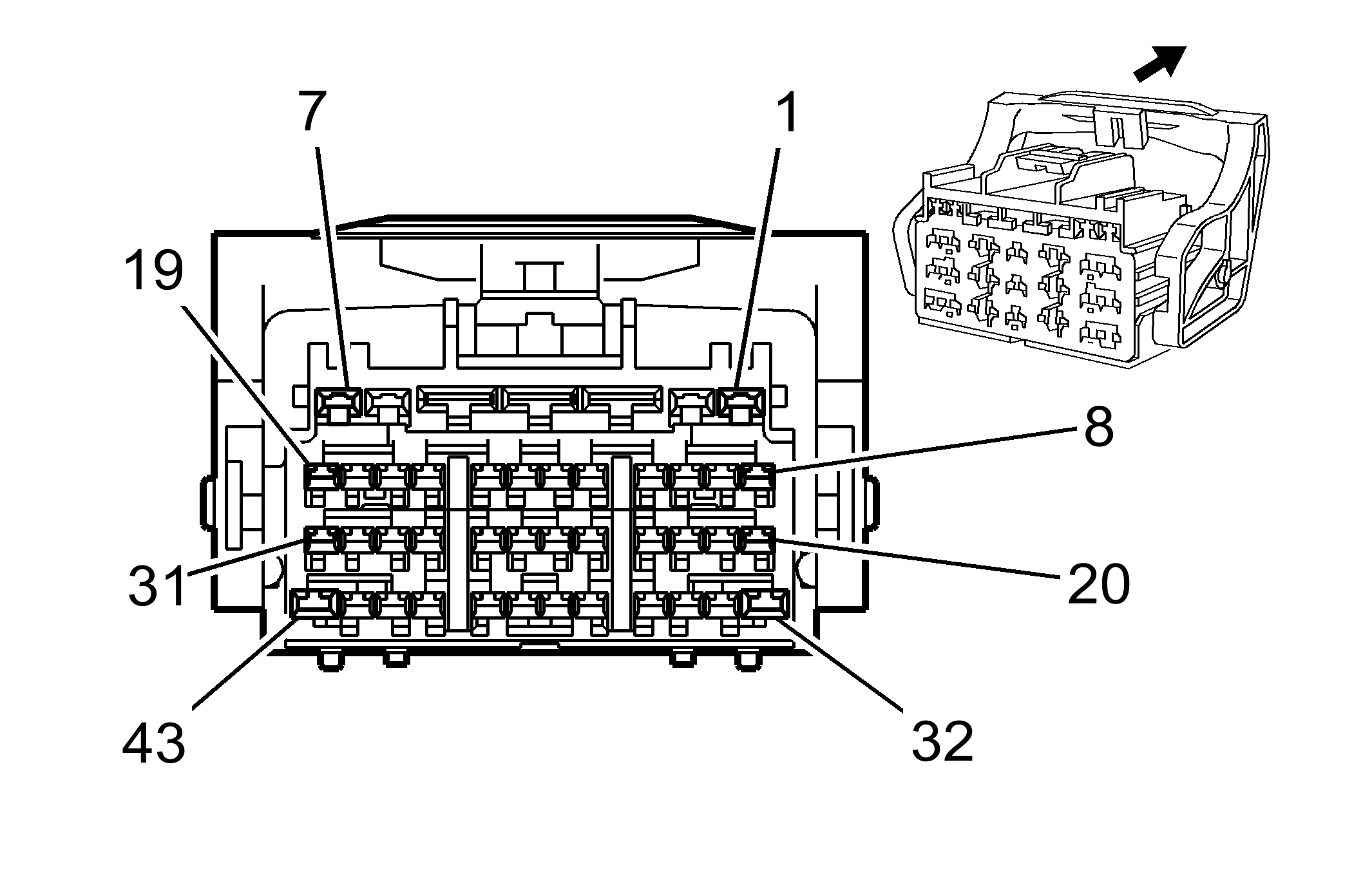

GM1576566

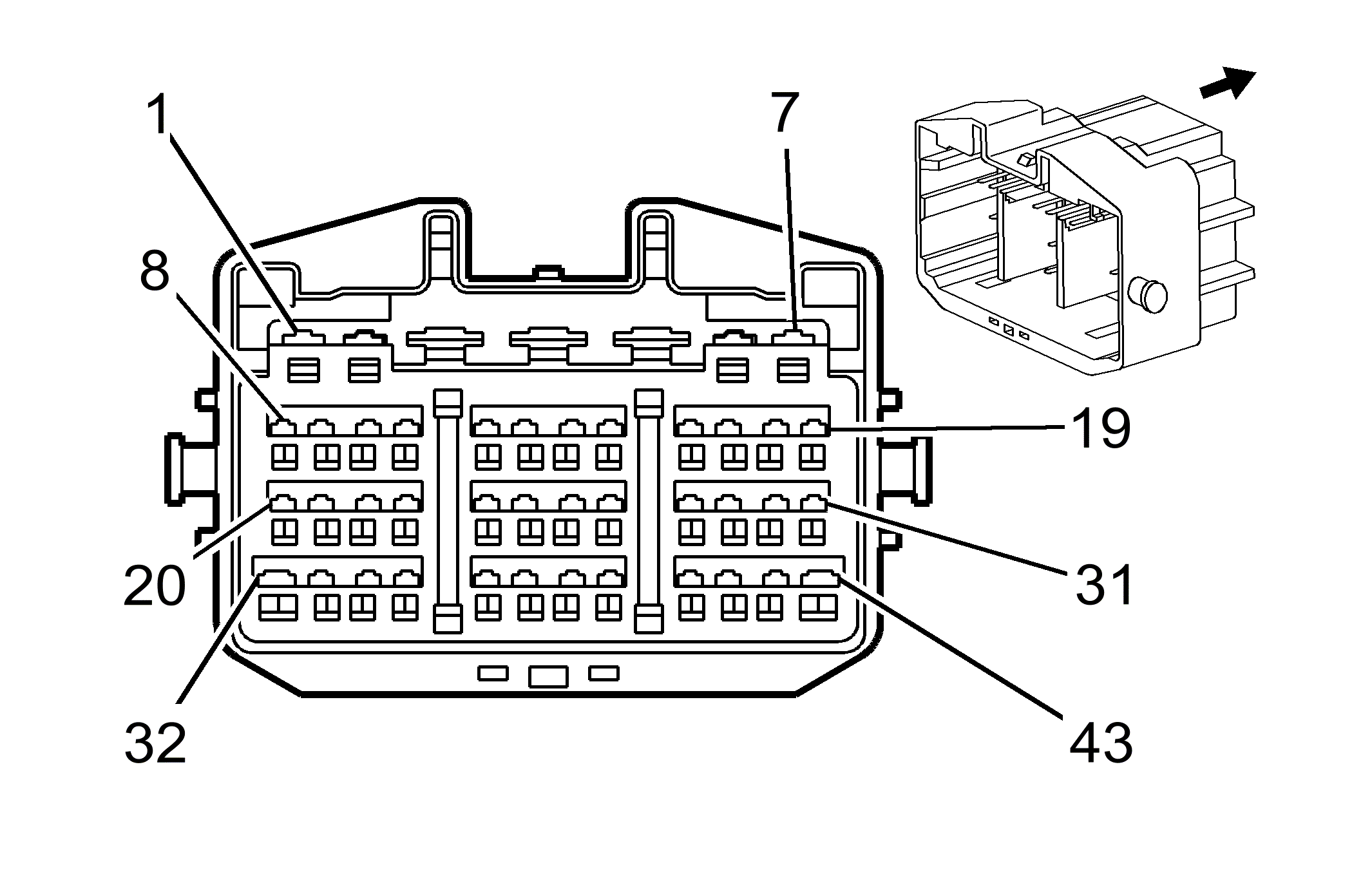

GM1576562
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 7283-4190-30
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 43-Way F 1.5, 2.8, 6.3 YESC Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 7282-4190-30
  • Service Connector: 19115704
  • Description: 43-Way M YESC Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) Not Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) Not Required Not Required Not Required Not Required Not Required
III Not Required J-35616-42 (RD) Not Required Not Required Not Required Not Required Not Required
IV 13575818 J-35616-3 (GY) J-38125-553 Not Available Not Available Not Available Not Available
V 13575823 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
VI 13575823 J-35616-5 (PU) J-38125-11A 7114-4111-02 Yazaki 9 E A
VII 13575823 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
VIII 13575825 J-35616-43 (RD) J-38125-11A Not Available Not Available Not Available Not Available
IX 13580023 J-35616-43 (RD) J-38125-11A 7114-4122-02 Yazaki 9 A B
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 BK/WH 351 II - Signal Ground 1 0.5 BK/WH 351 V ULD
2 0.35 D-BU 6807 II KI6/KI7 DC To AC Inverter Control 2 0.35 D-BU 6807 V -
3 1 RD/WH 2540 III - Battery Positive Voltage 3 1 RD/WH 2540 VIII -
4 - - - - - Not Occupied 4 - - - - -
5 3 BK 750 III - Ground 5 3 BK 750 IX -
6 1 RD/WH 1540 II - Battery Positive Voltage 6 1 RD/WH 1540 VII -
7 0.8 RD 5684 II - 120 V AC Phase B 7 0.8 RD 5684 VI -
8 0.5 RD/WH 2340 I ULD Battery Positive Voltage 8 0.5 RD/WH 2340 IV -
9 0.35 D-GN 6112 I TB5 Power Lift Gate On/Off Switch Signal 9 0.35 D-GN 6112 IV -
10 0.35 GY 8 I - Instrument Panel Lamp Control 1 10 0.35 GY 8 IV -
11 0.35 BN 6173 I - Driver Heated Seat Switch Back Cushion LED Control 11 0.35
0.8		 BN
BN		 6173
6173		 IV
IV		 KA1-A45
A45
12 0.35 TN 1686 I KA1-A45 Passenger Heated Seat Low Indicator Control 12 0.35 TN 1686 IV -
13 0.35 VT 6174 I KA1-A45 Driver Heated Seat Switch Back LED Control 13 0.35 VT 6174 IV -
14 0.35 YE 1685 I KA1-A45 Passenger Heated Seat High Indicator Control 14 0.35 YE 1685 IV -
15 0.35 D-GN/WH 5800 I TB5 Front Lift Gate Open/Close Switch Signal 15 0.35 D-GN/WH 5800 IV -
16 0.35 VT/WH 6816 I KA1-A45 Indicator Dimming Control 16 0.35 VT/WH 6816 IV -
17 0.35 GY 6175 I KA1-A45 Driver Heated Seat Switch Back Signal 17 0.35 GY 6175 IV -
18 0.5 PK 70 I - RAP Relay Switch Control 18 0.35 RD/WH 2840 IV -
19 0.8 BN 686 I KI7 230 V AC Phase A 19 0.8 BN 686 IV -
20 0.35 VT/WH 1382 I - LED Dimming Signal 20 0.35 VT/WH 1382 IV -
21 0.35 PK 5829 I U42 Infrared Module Control 21 0.35 PK 5829 IV U42
22 0.35 D-GN 5060 I - Low Speed GMLAN Serial Data 22 0.35 D-GN 5060 IV ULD
23 0.35 YE 43 I - Accessory Ignition Voltage 23 0.35 YE 43 IV -
24 0.35 BN 6179 I - Passenger Heated Seat Switch Back Cushion LED Control 24 0.35 BN 6179 IV -
25 0.35 D-GN 1661 I - Driver Heated Seat High Indicator Control 25 0.35 D-GN 1661 IV -
26 0.35 D-BU 6180 I KA1-A45 Passenger Heated Seat Switch Back Cushion Signal 26 0.35 D-BU 6180 IV -
27 0.35 VT 6181 I - Passenger Heated Seat Switch Back LED Control 27 0.35 VT 6181 IV -
28 0.35 BN/WH 1571 I NW9 Traction Control Switch Signal 2 28 0.35 BN/WH 1571 IV -
29 0.5 BK/WH 351 I - Signal Ground 29 0.5 BK/WH 351 IV -
30 0.35 YE 43 I - Accessory Ignition Voltage 30 0.35 YE 43 IV -
31 0.5 RD/WH 2840 I - Battery Positive Voltage 31 0.35 RD/WH 2840 IV -
32 0.35 GY 596 II - ULD 5V Reference 32 0.35 GY 596 V -
33 0.35 GY 6182 I KA1-A45 Passenger Heated Seat Switch Back Signal 33 0.35 GY 6182 IV -
34 0.35 L-BU 1662 I KA1-A45 Driver Heated Seat Low Indicator Control 34 0.35 L-BU 1662 IV -
35 0.35 WH/BK 6185 I KA1-A45 Passenger Heated Seat Medium Indicator Control 35 0.35 WH/BK 6185 IV -
36 0.35 YE 2214 I - Rear Air Temperature Selector Control 36 0.35 YE 2214 IV -
37 0.35 OG 2615 I - ULD Auxiliary Mode Door Control 37 0.35 OG 2615 IV -
38 0.35 VT/WH 760 I - Auxiliary Blower Motor Speed Control 38 0.35 VT/WH 760 IV -
39 0.35 WH/BK 6177 I KA1-A45 Driver Heated Seat Medium Indicator Control
Driver Heated Seat Medium Indicator Control		 39 0.8
0.35		 WH/BK
WH/BK		 6177
6177		 IV
IV		 A45
KA1-A45
40 0.35 D-BU 6172 I KA1-A45 Driver Heated Seat Switch Back Cushion Signal 40 0.35 D-BU 6172 IV -
41 0.35 GY/BK 1798 I - ULD Low Reference 41 0.35 GY/BK 1798 IV -
42 0.35 WH 2283 I - Rear Wiper/Washer Switch Control 42 0.35 WH 2283 IV -
43 0.8 BK 5683 II KI6 120 V AC Phase A 43 0.8 BK 5683 VI -
