X316 Body Harness to Driver Seat Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

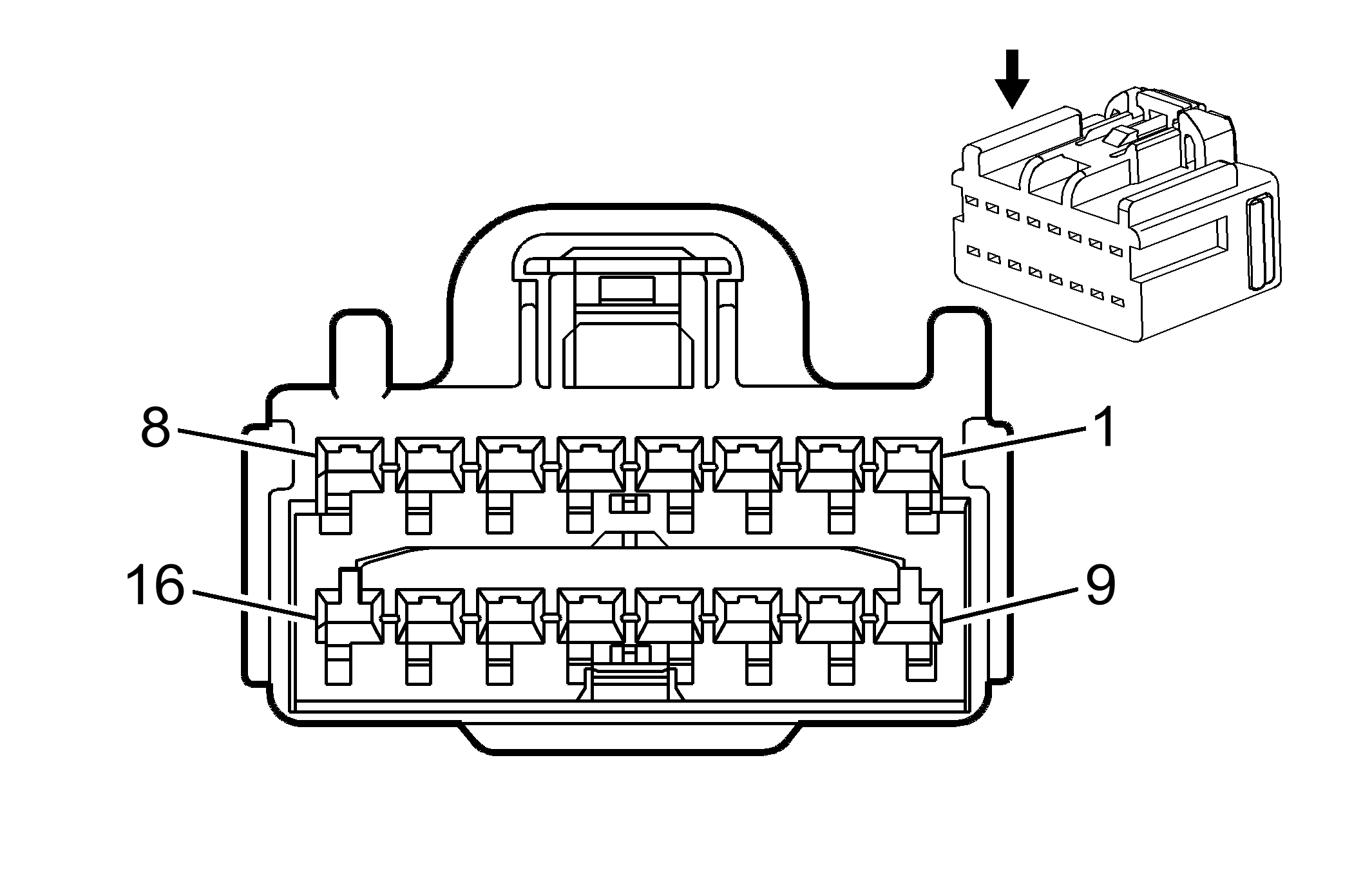

Connector Part Information Harness Type: Body OEM Connector: 7283-3585-40 Service Connector: 19115709 Description: 16-Way F YESC Kaizen Series (L-GY)	Connector Part Information Harness Type: Driver Seat OEM Connector: 7282-5536-40 Service Connector: Service by Harness - See Part Catalog Description: 16-Way M 1.5 Series (L-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575850	J-35616-2A (GY)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
II	13578891	J-35616-2A (GY)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
III	Not Required	J-35616-3 (GY)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	GY	2434	II	-	Passenger Heated Seat NTC Signal	1	0.35	GY	2434	III	-
2	0.35	L-BU	5476	II	-	Passenger Heated Seat Sensor Low Reference	2	0.35	L-BU	5476	III	-
3	0.35 0.35	GY GY	6175 2096	I I	KA1-A45 N38	Driver Heated Seat Switch Back Signal Steering Column Tilt and Telescope Up Switch Signal	3	0.35 0.35	GY GY	6175 2096	III III	KA1-A45 N38
4	0.35 0.35	D-BU YE	6172 2097	I I	KA1-A45 N38	Driver Heated Seat Switch Back Cushion Signal Steering Column Tilt and Telescope Down Switch Signal	4	0.35 0.35 0.35	YE D-BU YE	2097 6172 2097	III III III	N38 KA1-A45 N38
5	0.35 0.35	L-BU OG	1662 2154	II II	KA1-A45 N38	Driver Heated Seat Low Indicator Control Steering Column Tilt Motor Signal	5	0.35 0.35	L-BU OG	1662 2154	III III	KA1-A45 N38
6	0.35 0.35	WH/BK OG	6177 2153	II II	KA1-A45 N38	Driver Heated Seat Medium Indicator Control Steering Column Telescope Motor Signal	6	0.35 0.35	WH/BK OG	6177 2153	III III	KA1-A45 N38
7	0.8	PK	2480	I	-	Passenger Heated Seat Element Low Reference	7	0.8	PK	2480	III	-
8	0.35 0.35	GY D-GN	5961 1661	II II	A45+KB6 KA1-A45	Heated Seat Control Module Enable 2 Signal Driver Heated Seat High Indicator Control	8	0.35 0.35	GY D-GN	5961 1661	III III	A45+KB6 KA1-A45
9	0.35	TN	2436	I	-	Passenger Heated Back NTC Signal	9	0.35	TN	2436	III	-
10	0.35	TN	2482	II	-	Passenger Heated Back NTC Low Reference	10	0.35	TN	2482	III	-
11	0.35 0.35	GY OG	6182 2095	I I	KA1-A45 N38	Passenger Heated Seat Switch Back Signal Steering Column Tilt and Telescope Rearward Switch Signal	11	0.35 0.35 0.35	OG GY OG	2095 6182 2095	III III III	N38 KA1-A45 N38
12	0.35 0.35	D-BU PK	6180 2094	I I	KA1-A45 N38	Passenger Heated Seat Switch Back Cushion Signal Steering Column Tilt and Telescope Forward Switch Signal	12	0.35 0.35	D-BU PK	6180 2094	III III	KA1-A45 N38
13	0.35 0.35	TN TN	1686 6207	II II	KA1-A45 N38	Passenger Heated Seat Low Indicator Control Memory Sensor High Reference	13	0.35 0.35 0.35	TN TN TN	6207 1686 6207	III III III	N38 KA1-A45 N38
14	0.35 0.35	WH/BK GY	6185 6206	II II	KA1-A45 N38	Passenger Heated Seat Medium Indicator Control Memory Sensor Low Reference	14	0.35 0.35	WH/BK GY	6185 6206	III III	KA1-A45 N38
15	0.35	YE	1685	I	-	Passenger Heated Seat High Indicator Control	15	0.35	YE	1685	III	KA1-A45
16	0.8	L-BU	2433	I	-	Passenger Heated Back Element Low Reference	16	0.8	L-BU	2433	III	-
