X305 Fuel Tank Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

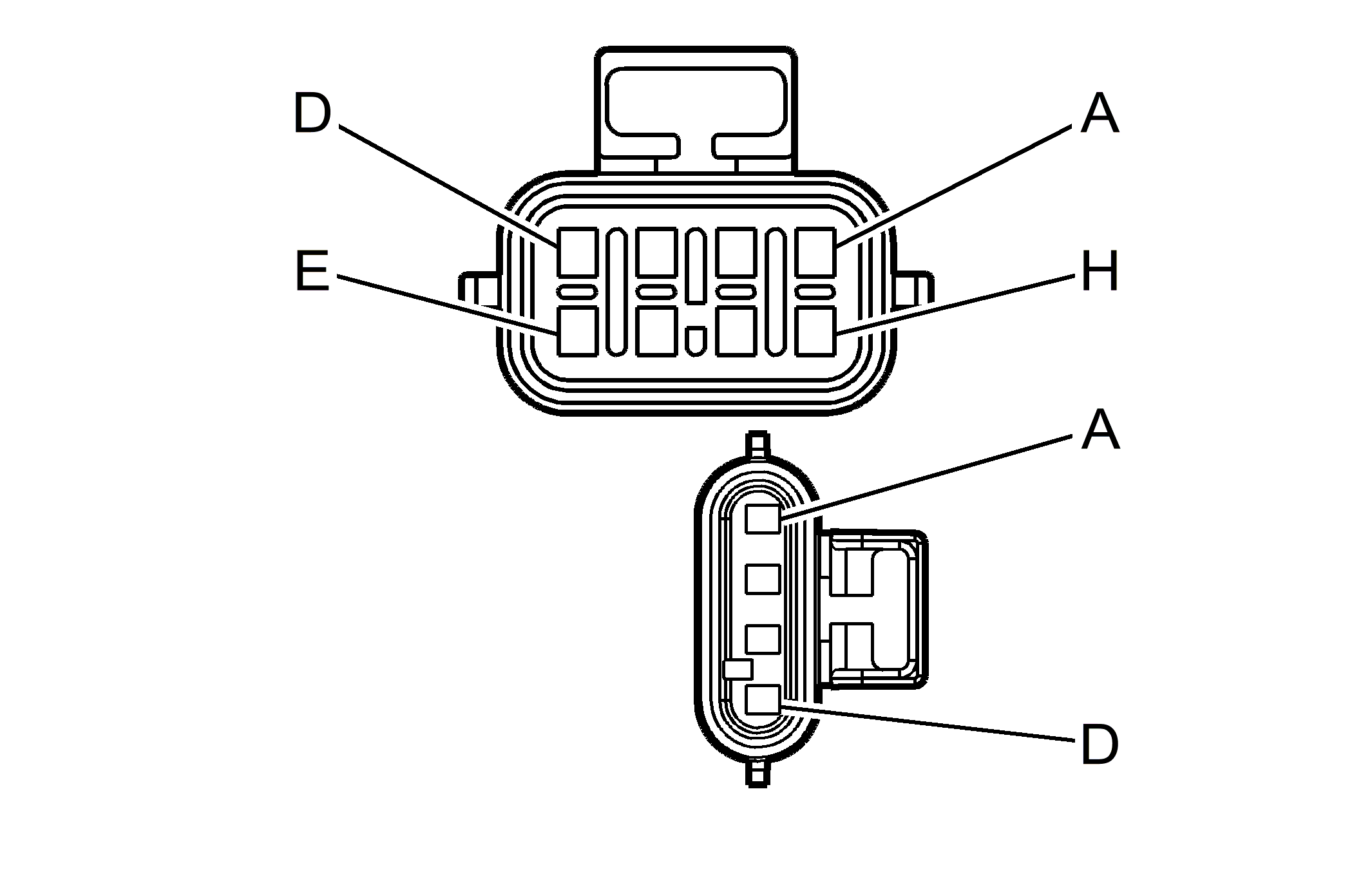

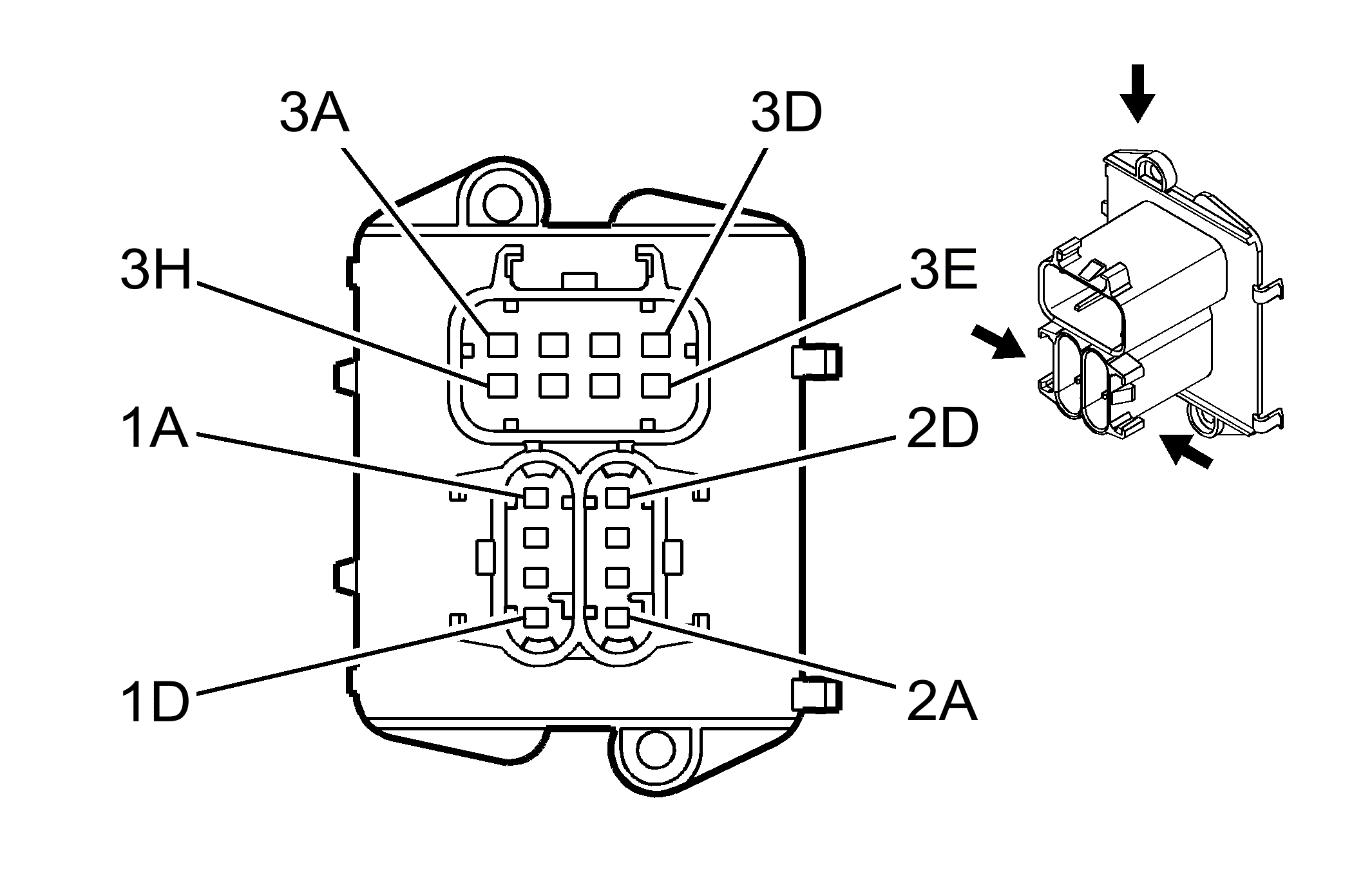

Connector Part Information Harness Type: Fuel Tank OEM Connector: - Service Connector: Service by Harness - See Part Catalog Description: 16-Way F	Connector Part Information Harness Type: Body OEM Connector: 13609624 Service Connector: 19178098 Description: 16-Way M 150, 280 Metri-Pack Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	Pending	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	13581347	J-35616-5 (PU)	J-38125-11A	12048159	Delphi 2	2	5

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A1 - A2	-	-	-	-	-	Not Occupied	A1 - A2	-	-	-	-	-
B	0.35	D-GN	890	I	-	Fuel Tank Pressure Sensor Signal	B	0.35	D-GN	890	II	-
B1 - B2	-	-	-	-	-	Not Occupied	B1 - B2	-	-	-	-	-
C	0.35	BU/WH	7446	I	-	Fuel Line Pressure Sensor Signal	C	0.35	BU/WH	7446	II	-
C1 - C2	-	-	-	-	-	Not Occupied	C1 - C2	-	-	-	-	-
D	0.35	VT	1589	I	-	Primary Fuel Level Sensor Signal	D	0.35	VT	1589	II	-
D1 - D2	-	-	-	-	-	Not Occupied	D1 - D2	-	-	-	-	-
E	0.35	-	2759	I	-	Fuel Tank Pressure Sensor Low Reference	E	0.35	TN	2759	II	-
E1	-	-	-	-	-	Not Occupied	E1	-	-	-	-	-
F	0.35	WH	1310	I	-	EVAP Canister Vent Solenoid Control	F	0.35	WH	1310	II	-
F1	-	-	-	-	-	Not Occupied	F1	-	-	-	-	-
G	0.5	RD/WH	4140	I	-	Battery Positive Voltage	G	0.5	RD/WH	4140	II	-
G1	-	-	-	-	-	Not Occupied	G1	-	-	-	-	-
H	0.35	GY	2709	I	-	Fuel Tank Pressure Sensor 5V Reference	H	0.35	GY	2709	II	-
H1	-	-	-	-	-	Not Occupied	H1	-	-	-	-	-
