X252 Instrument Panel Harness to Body Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

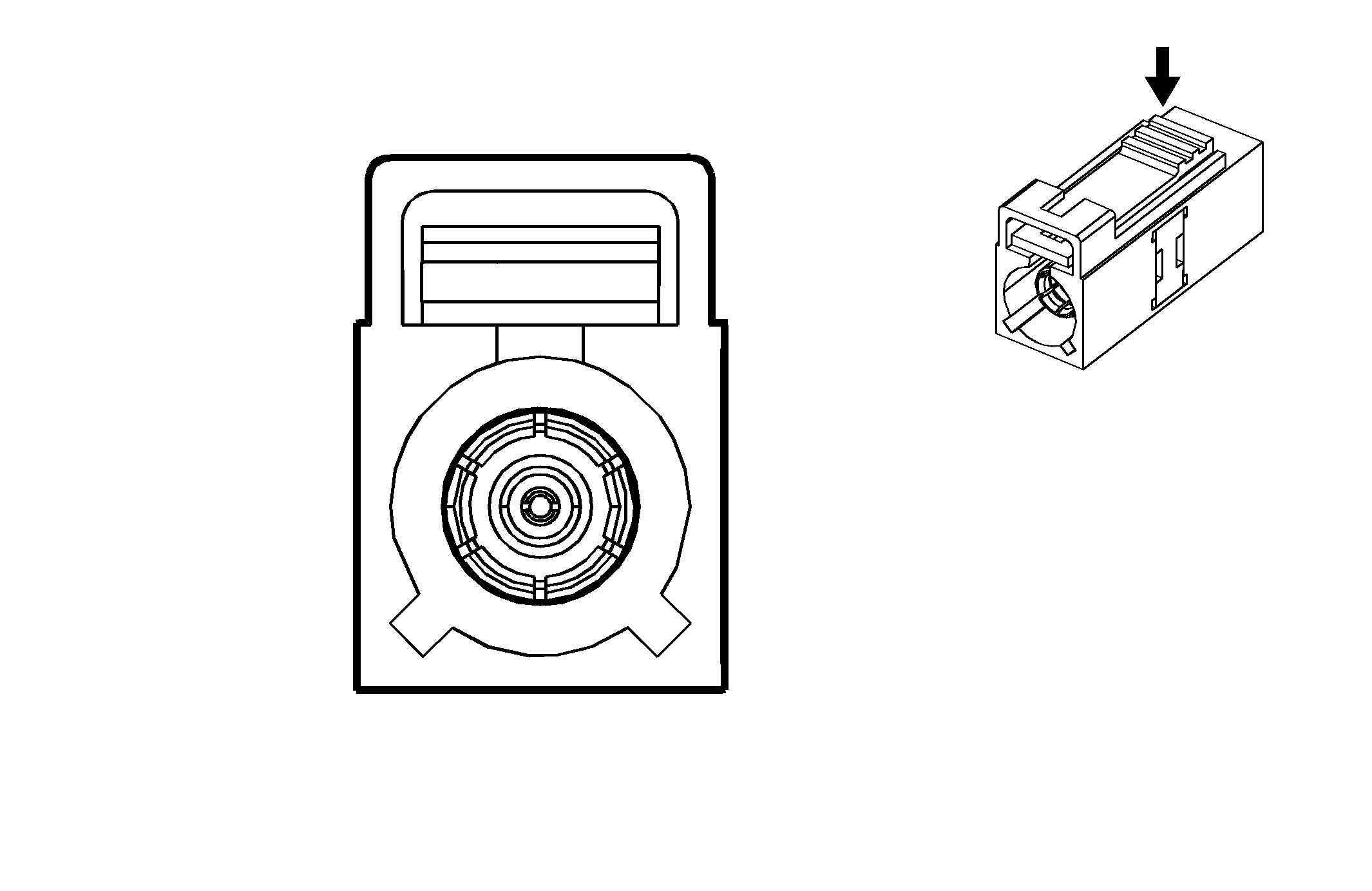

Connector Part Information
- Harness Type: Body
- OEM Connector: GT13GM-1/1S-HU(22)
- Service Connector: Not Available
- Description: 1-Way F GT13 Coaxial Series (YE)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: GT13GM-1/1S-HU(22)
- Service Connector: Not Available
- Description: 1-Way F GT13 Coaxial Series (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
- |
- |
Entertainment Remote Enable Signal |
- |
- |
COAX |
- |
- |
- |
