X240 Instrument Panel Harness to Floor Console Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

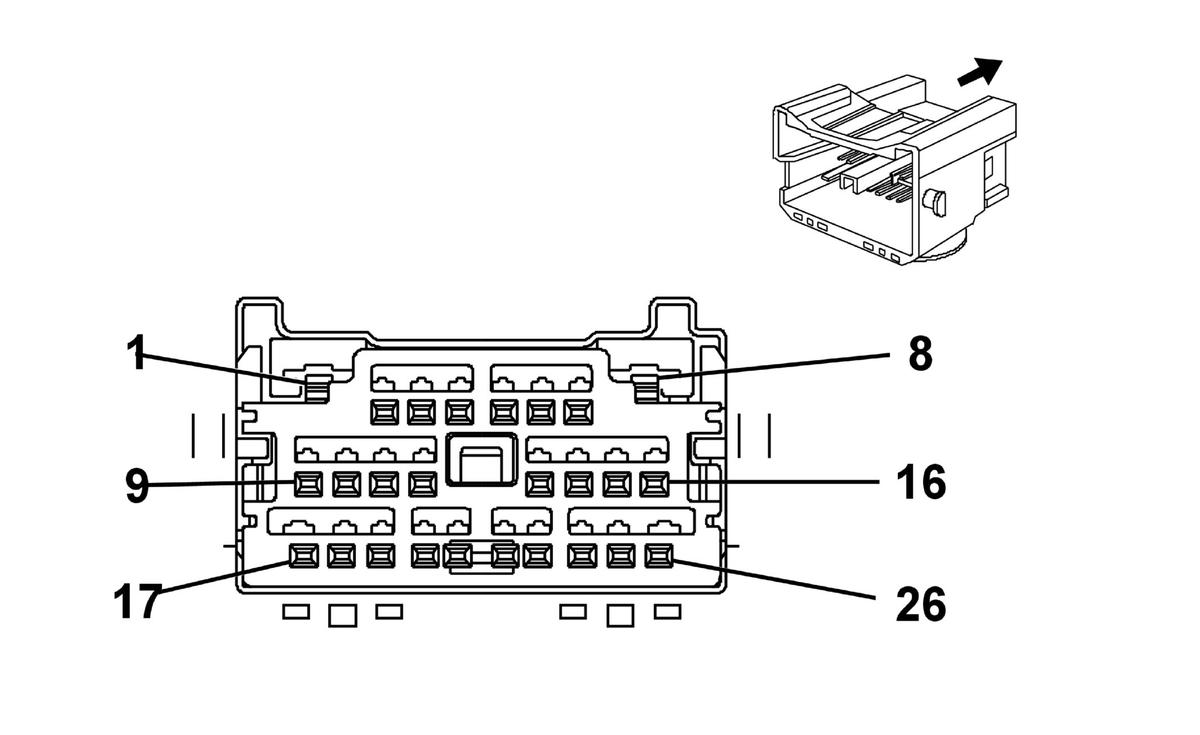

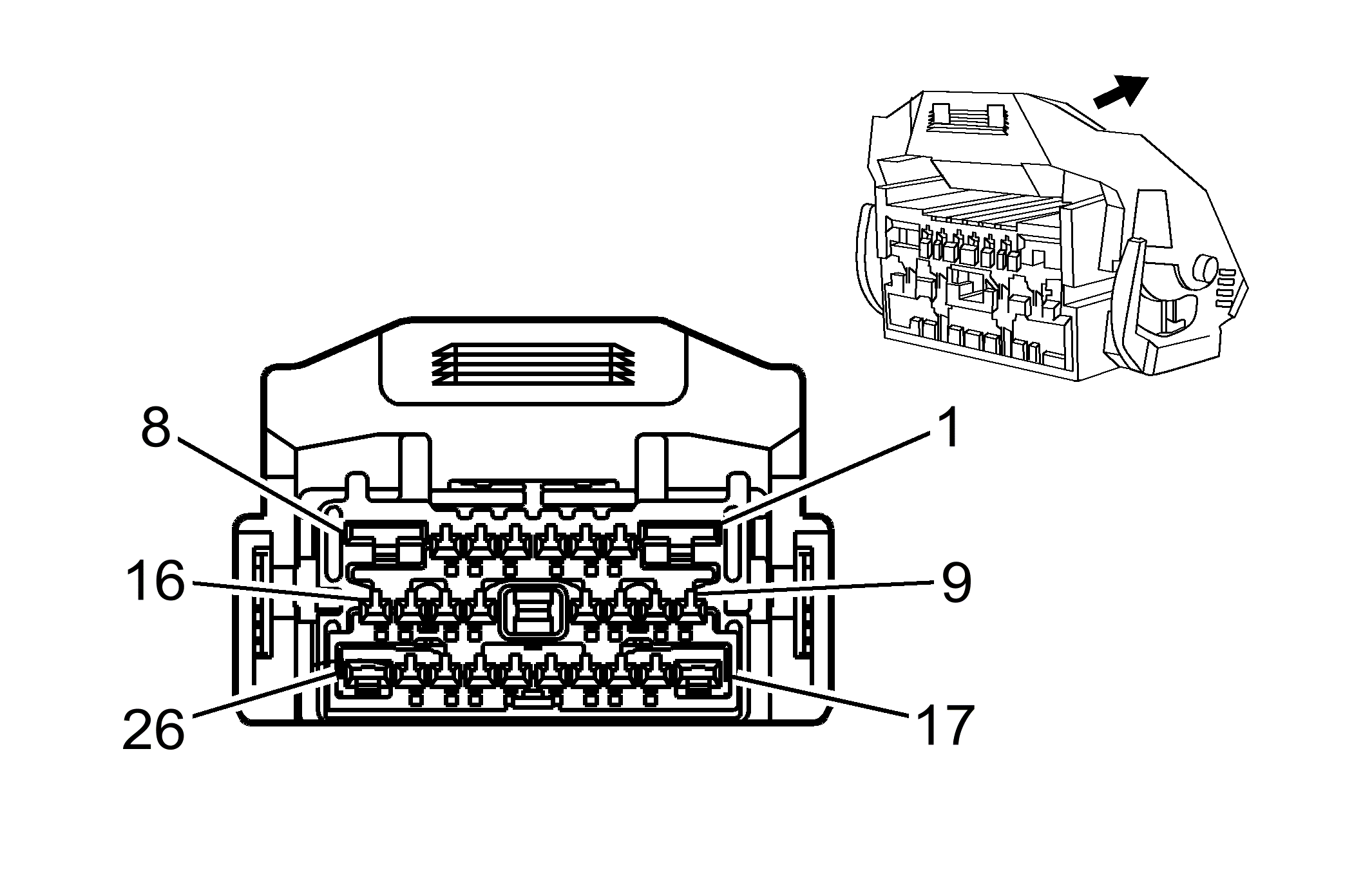

Connector Part Information Harness Type: Instrument Panel OEM Connector: 7283-6537-30 Service Connector: 13574927 Description: 26-Way F YESC LIF Series (BK)	Connector Part Information Harness Type: Floor Console OEM Connector: 7282-6537-30 Service Connector: Service by Harness - See Part Catalog Description: 26-Way M YESC LIF Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575833	J-35616-42 (RD)	J-38125-11A	7116-4120-02	Yazaki 9	E	A
II	13575838	J-35616-35 (VT)	J-38125-11A	7116-4110-02	Yazaki 9	E	C
III	13575850	J-35616-2A (GY)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
IV	Not Required	J-35616-3 (GY)	Not Required	Not Required	Not Required	Not Required	Not Required
V	Not Required	J-35616-43 (RD)	Not Required	Not Required	Not Required	Not Required	Not Required
VI	Not Required	J-35616-5 (PU)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	GY	391	I	-	Rear Window Wiper Switch Signal	1	0.5	GY	391	V	-
2	0.35	VT/WH	5330	III	U42	Right Infrared Audio Signal	2	0.35	VT/WH	5330	IV	U42
3	0.35	BN/WH	5331	III	U42	Infrared Audio Low Reference	3	0.35	BN/WH	5331	IV	U42
4	0.35	BARE	5332	III	U42	Infrared Audio Low Reference	4	0.35	BARE	5332	IV	U42
5	0.35	OG/BK	5329	III	U42	Left Infrared Audio Signal	5	0.35	OG/BK	5329	IV	U42
6	0.35	VT/WH	1630	III	-	Steering Column Key Cylinder Lock Solenoid Control	6	0.35	VT/WH	1630	IV	-
7	0.35	L-BU	553	III	-	Shift Select Switch Performance Signal	7	0.35	L-BU	553	IV	-
8	0.5	L-GN	2270	I	-	Rear Window Washer Relay Control	8	0.5	L-GN	2270	V	-
9	0.35	BARE	5345	III	U42	Auxiliary Audio Low Reference 1	9	0.35	BARE	5345	IV	U42
10	0.35	WH	2058	III	U42	Right Auxiliary Audio Signal 1	10	0.35	WH	2058	IV	U42
11	0.35	YE	2059	III	U42	Left Auxiliary Audio Signal 1	11	0.35	YE	2059	IV	U42
12	0.35	VT	5526	III	-	Tap Up/Tap Down Switch Signal	12	0.35	VT	5526	IV	-
13	0.35	BARE	5346	III	U42	Video Low Reference	13	0.35	BARE	5346	IV	U42
14	0.35	VT	2056	III	U42	Auxiliary Video High Signal	14	0.35	VT	2056	IV	U42
15	0.35	D-GN/WH	1135	III	-	Brake Transmission Shift Interlock Solenoid Control	15	0.35	D-GN/WH	1135	IV	-
16	0.35	VT	1375	III	-	Remote Radio Control Head Accessory Ignition	16	0.35	VT	1375	IV	-
17	0.35	L-BU	5312	II	ULD+UQA/UQS	Left Rear Seat Audio Signal	17	0.35	L-BU	5312	VI	ULD+UQA/UQS
18	0.35	BN	5314	III	ULD+UQA/UQS	Left Rear Seat Audio Low Reference	18	0.35	BN	5314	IV	ULD+UQA/UQS
19	0.35	L-GN	5313	III	ULD+UQA/UQS	Right Rear Seat Audio Signal	19	0.35	L-GN	5313	IV	ULD+UQA/UQS
20	0.35	TN/WH	5830	III	ULD+UQA/UQS	Remote Infrared Signal (-)	20	0.35	TN/WH	5830	IV	ULD+UQA/UQS
21	0.35	BARE	6759	III	ULD+UQA/UQS	Discrete Audio Low Reference	21	0.35	BARE	6759	IV	ULD+UQA/UQS
22	0.35	D-BU	546	III	ULD+UQA/UQS	Right Rear Low Level Audio Signal	22	0.35	D-BU	546	IV	ULD+UQA/UQS
23	0.35	TN	1946	III	ULD+UQA/UQS	Right Rear Low Level Audio (-) Low Reference	23	0.35	TN	1946	IV	ULD+UQA/UQS
24	0.35	BN/WH	599	III	ULD+UQA/UQS	Left Rear Low Level Audio Signal	24	0.35	BN/WH	599	IV	ULD+UQA/UQS
25	0.35	BN	1999	III	ULD+UQA/UQS	Left Rear Low Level Audio (-) Low Reference	25	0.35	BN	1999	IV	ULD+UQA/UQS
26	0.35	BARE	1574	II	ULD+UQA/UQS	Rear Audio Low Reference	26	0.35	BARE	1574	VI	ULD+UQA/UQS
