X214 Instrument Panel Harness to HVAC Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

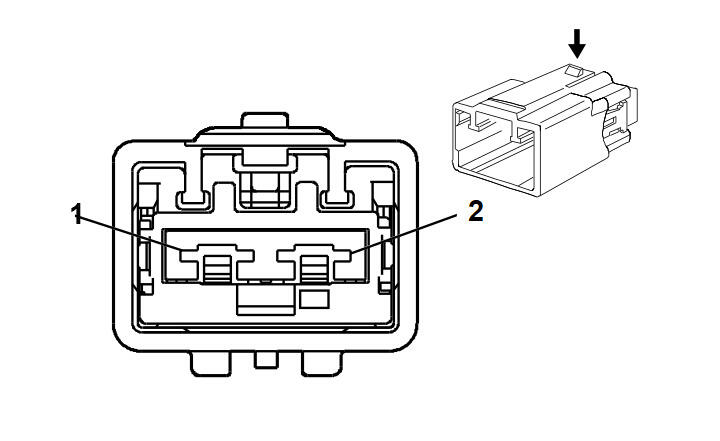

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-6458-40
- Service Connector: 88988507
- Description: 2-Way F 6.3 Series (L-GY)
|
Connector Part Information
- Harness Type: HVAC
- OEM Connector: -
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Pending |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
3 |
RD/BK |
442 |
I |
- |
Battery Positive Voltage |
1 |
3 |
RD/BK |
442 |
II |
- |
| 2 |
3 |
BK |
750 |
I |
- |
Ground |
2 |
3 |
BK |
750 |
II |
- |
