X212 Body Harness to Inflatable Restraint Module Jumpe Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

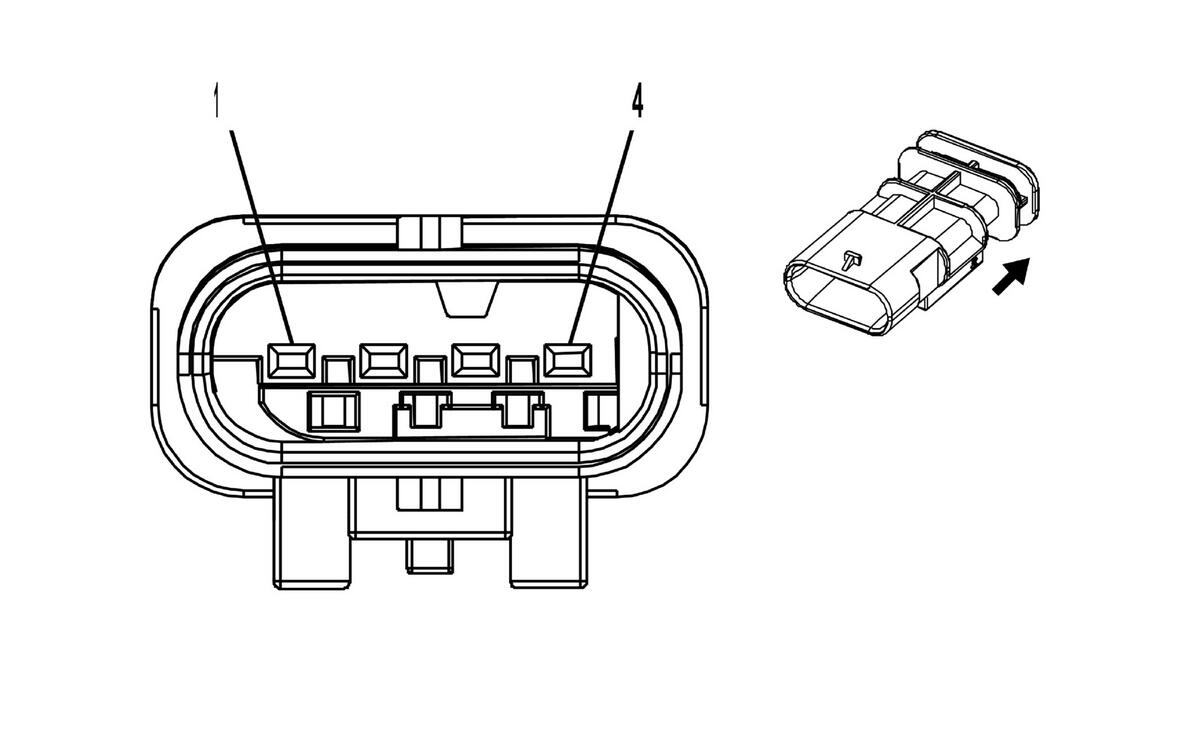

Connector Part Information
- Harness Type: Body
- OEM Connector: 13580150
- Service Connector: 13586137
- Description: 4-Way F 1.2 Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Inflatable Restraint Module Jumpe
- OEM Connector: -
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Pending |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
3025 |
I |
- |
Passenger IP Module Stage 1 High Control |
1 |
0.35 |
YE |
3025 |
II |
- |
| 2 |
0.35 |
OG |
3024 |
I |
- |
Passenger IP Module Stage 1 Low Control |
2 |
0.35 |
OG |
3024 |
II |
- |
| 3 |
0.35 |
GY |
3027 |
I |
- |
Passenger IP Module Stage 2 High Control |
3 |
0.35 |
GY |
3027 |
II |
- |
| 4 |
0.35 |
VT |
3026 |
I |
- |
Passenger IP Module Stage 2 Low Control |
4 |
0.35 |
VT |
3026 |
II |
- |
