X211 Body Harness to Steering Column Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

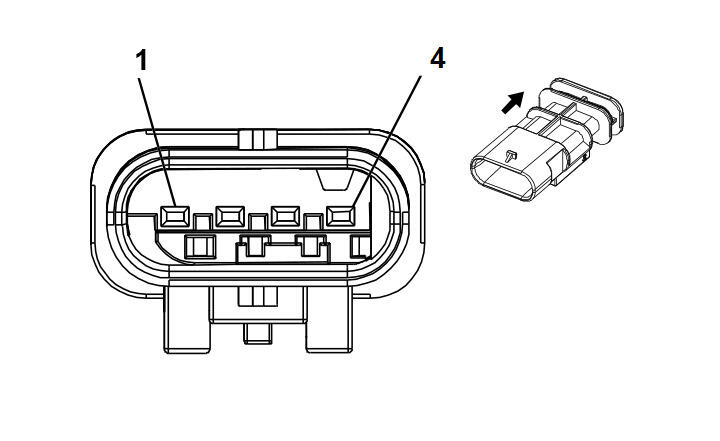

Connector Part Information
- Harness Type: Body
- OEM Connector: 13580150
- Service Connector: 13586137
- Description: 4-Way F 1.2 Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 13580146
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-13 (BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
TN |
3021 |
I |
- |
Steering Wheel Module Stage 1 High Control |
1 |
0.35 |
TN |
3021 |
II |
- |
| 2 |
0.35 |
BN |
3020 |
I |
- |
Steering Wheel Module Stage 1 Low Control |
2 |
0.35 |
BN |
3020 |
II |
- |
| 3 |
0.35 |
WH |
3023 |
I |
- |
Steering Wheel Module Stage 2 High Control |
3 |
0.35 |
WH |
3023 |
II |
- |
| 4 |
0.35 |
PK |
3022 |
I |
- |
Steering Wheel Module Stage 2 Low Control |
4 |
0.35 |
PK |
3022 |
II |
- |
