X202 Instrument Panel Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
GM1576566

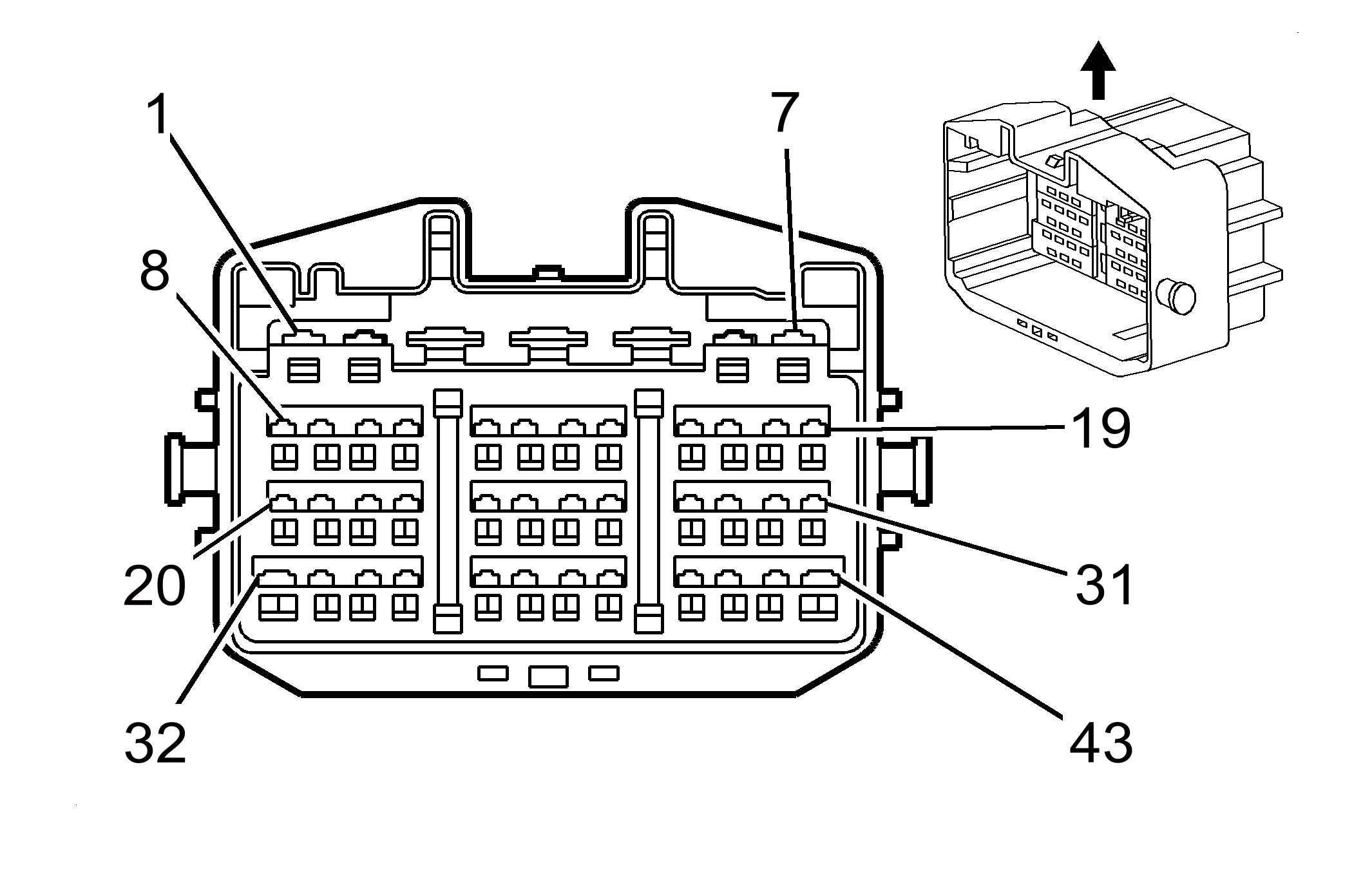

GM1856783
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 7283-4192-40
  • Service Connector: 19167916
  • Description: 43-Way F 1.5, 2.8, 6.3 YESC Series (L-GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 7282-4192-40
  • Service Connector: 19167910
  • Description: 43-Way M LIF YESC Series (L-GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575835 J-35616-42 (RD) J-38125-11A 7116-4122-02 Yazaki 10 A B
II 13575838 J-35616-35 (VT) J-38125-11A 7116-4110-02 Yazaki 9 E C
III 13575838 J-35616-35 (VT) J-38125-11A 7116-4111-02 Yazaki 9 E A
IV 13575838 J-35616-35 (VT) J-38125-11A Not Available Not Available Not Available Not Available
V 13575850 J-35616-2A (GY) J-38125-11A Not Available Not Available Not Available Not Available
VI 13575818 J-35616-3 (GY) J-38125-553 Not Available Not Available Not Available Not Available
VII 13575823 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
VIII 13575823 J-35616-5 (PU) J-38125-11A 7114-4111-02 Yazaki 9 E A
IX 13575823 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
X 13580023 J-35616-43 (RD) J-38125-11A 7114-4122-02 Yazaki 9 A B
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1 BK 1450 IV - Ground 1 1 BK 1450 IX -
2 0.35 BN 6555 II - Rear Temperature Motor Control 2 0.35 BN 6555 VII -
3 3 BK 750 I - Ground 3 3 BK 750 X -
4 - - - - - Not Occupied 4 - - - - -
5 3 RD/BK 442 I - Battery Positive Voltage 5 3 RD/BK 442 X -
6 - - - - - Not Occupied 6 - - - - -
7 0.35 OG 2615 II - Auxiliary Mode Door Control 7 0.35 OG 2615 VII -
8 0.35 GY 596 V - 5V Reference 8 0.35 GY 596 VI -
9 0.35 PK 2145 V - Passenger Air Temperature Switch Signal 9 0.35 PK 2145 VI -
10 0.35 WH 3152 V UVF Lane Departure Warning Indicator Control 10 0.35 WH 3152 VI UVF
11 0.35 OG 2215 V - Rear Mode Door Control 11 0.35 OG 2215 VI -
12 0.35 PK 3153 V UVF Lane Departure Warning Disable Switch Signal 12 0.35 PK 3153 VI UVF
13 0.35 GY 2599 V - Rear Mode Motor Signal 13 0.35 GY 2599 VI -
14 0.5 L-GN/BK 6432 V - CAN Bus Low Serial Data 14 0.5 L-GN/BK 6432 VI -
15 0.5 TN/WH 6433 V - CAN Bus High Serial Data 15 0.5 TN/WH 6433 VI -
16 0.35 TN/WH 372 V U2K/UBS Remote Radio Audio (-) Low Reference 16 0.35 TN/WH 372 VI U2K/UBS
17 0.35 BN/WH 367 V U2K/UBS Remote Radio Left Audio Signal 17 0.35 BN/WH 367 VI U2K/UBS
18 0.35 D-GN/WH 368 V U2K/UBS Remote Radio Right Audio Signal 1 18 0.35 D-GN/WH 368 VI -
19 0.35 GY 388 V U2K/UBS Remote Radio Right Audio Signal 2 19 0.35 GY 388 VI -
20 0.35 L-GN/BK 735 V - Outside Ambient Air Temperature Sensor Signal 20 0.35 L-GN/BK 735 VI C67/CJ2
21 0.35 L-GN/WH 5729 V - Rear Mode Motor Control 21 0.35 L-GN/WH 5729 VI -
22 0.35 GY 2614 V - Rear Air Temperature Door Control 22 0.35 GY 2614 VI -
23 0.35 VT/WH 760 V - Auxiliary Blower Motor Speed Control 23 0.35 VT/WH 760 VI -
24 0.35 GY/BK 1798 V - Low Reference 24 0.35 GY/BK 1798 VI -
25 0.35 YE 61 V - Outside Ambient Temperature Sensor Low Reference 25 0.35 YE 61 VI C67/CJ2
26 0.8 GY/BK 690 V - Courtesy Lamp Relay Control 26 0.8 GY/BK 690 VI -
27 0.5 L-BU 2088 V - Combined Vehicle Inertial Sensor Low Reference 27 0.5 L-BU 2088 VI -
28 0.5 D-GN 2087 V - Combined Vehicle Inertial Sensor Supply Voltage 28 0.5 D-GN 2087 VI -
29 0.35 WH 193 V - Rear Defog Relay Control 29 0.35 WH 193 VI -
30 0.35 BARE 6131 V U2K/UBS Coaxial Antenna XM Low Reference 30 0.35 BARE 6131 VI -
31 0.35 D-GN 2211 V - Rear Blower Motor Speed Control 31 0.35 D-GN 2211 VI -
32 0.8 BK/WH 1551 III - Signal Ground 32 0.8 BK/WH 1551 VIII -
33 0.35 BARE 814 V UE1 Low Reference 33 0.35 BARE 814 VI -
34 0.35 OG/BK 1406 V UE1 Remote Tape Player Left Audio Signal 34 0.35 OG/BK 1406 VI -
35 0.35 L-BU 1405 V UE1 Remote Tape Player Audio Communication Signal 35 0.35 L-BU 1405 VI -
36 0.35 BARE 6974 V UVC Camera Low Reference 36 0.35 BARE 6974 VI -
37 0.35 PK 6972 V UVC Camera Signal 2 + 37 0.35 PK 6972 VI UVC-UUI
38 0.35 L-BU 6973 V UVC Camera Signal 2 38 0.35 L-BU 6973 VI -
39 0.35 BN/WH 1571 V NW9 Traction Control Switch Signal 2 39 0.35 BN/WH 1571 VI NW9
40 0.35 PK 5149 V - Voice Recognition Audio Signal 40 0.35 PK 5149 VI -
41 0.35 PK/BK 5152 V - Voice Recognition Audio Low Reference 41 0.35 PK/BK 5152 VI -
42 - - - - - Not Occupied 42 - - - - -
43 0.35 YE 2214 II - Rear Air Temperature Selector Control 43 0.35 YE 2214 VII -
