X152 Body Harness to Forward Lamp Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

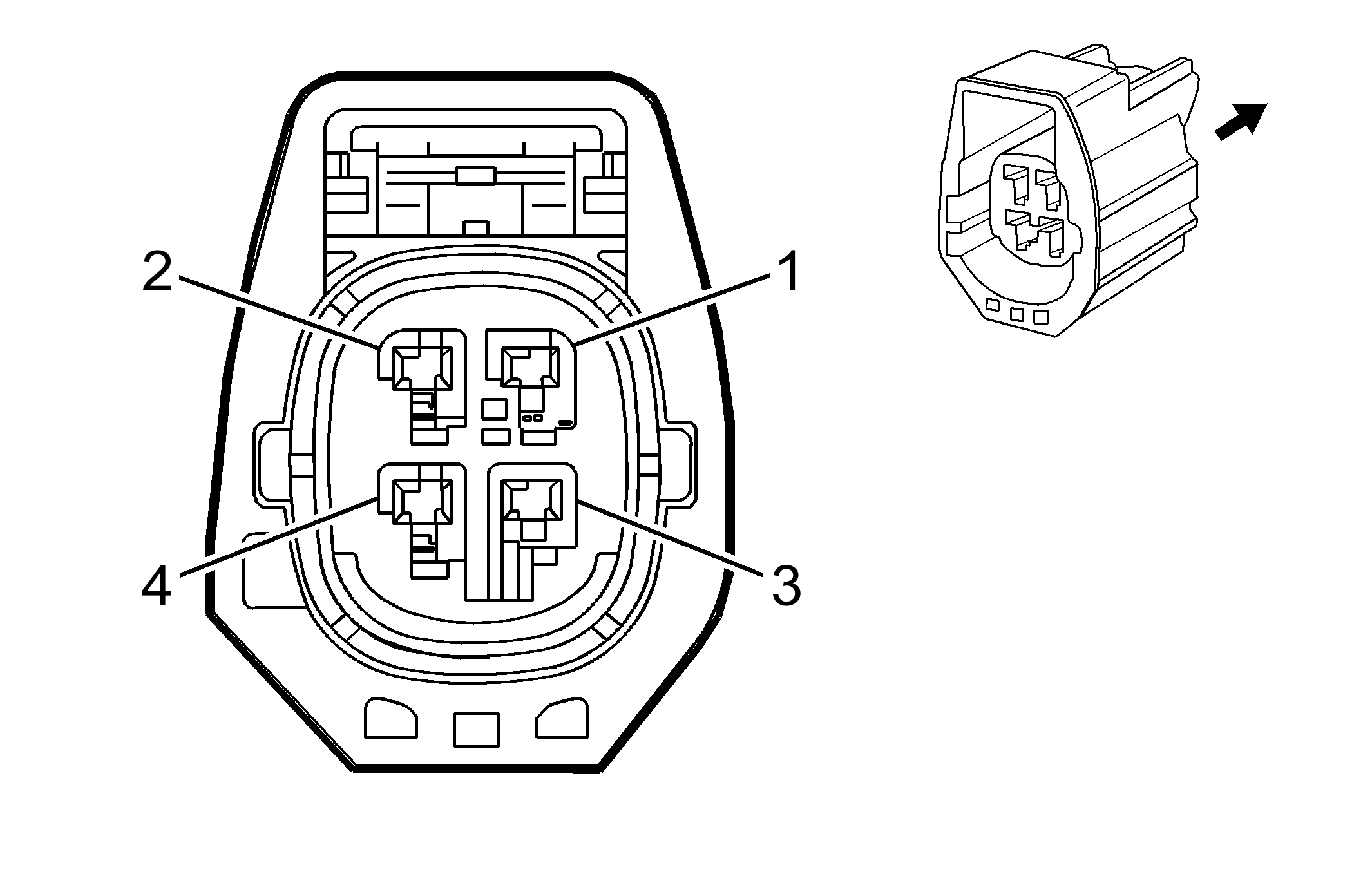

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-5543-10
- Service Connector: 88988502
- Description: 4-Way F YESC Series, Sealed (D-GY)
|

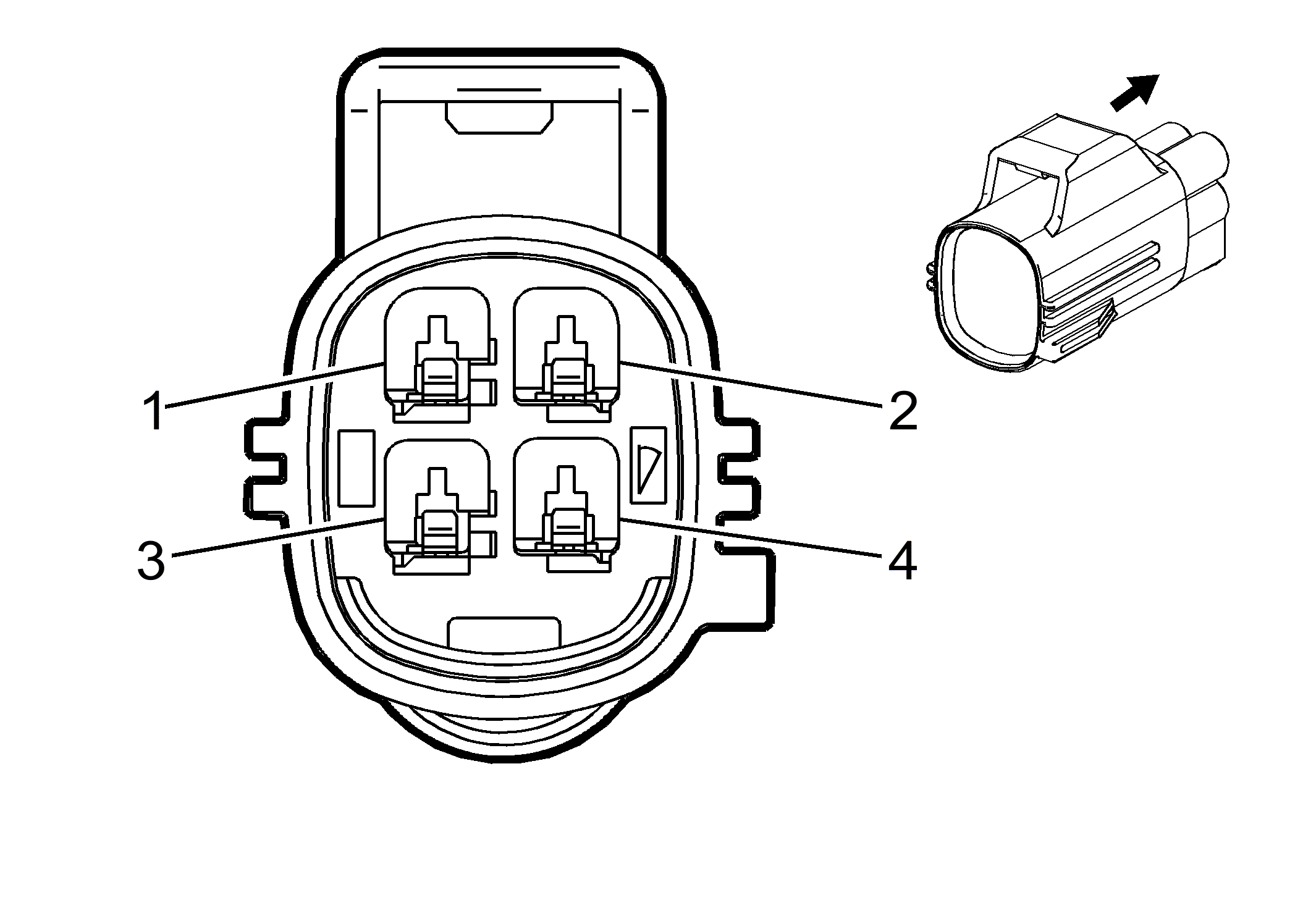

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7282-5543-10
- Service Connector: 88988509
- Description: 4-Way M YESC USCAR Class III Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-3 (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
2165 |
I |
- |
Automatic Level Control Position Sensor 5V Reference |
1 |
0.35 |
GY |
2165 |
II |
T97/T26 |
| 2 |
0.35 |
VT |
2185 |
I |
- |
Automatic Level Control Position Sensor Low Reference |
2 |
0.35 |
VT |
2185 |
II |
T97/T26 |
| 3 |
0.35 |
BN |
2184 |
I |
- |
Automatic Level Control Position Sensor Signal |
3 |
0.35 |
BN |
2184 |
II |
- |
| 4 |
0.35 |
WH |
2282 |
I |
W49+T97/T26 |
Headlamp Washer Relay Control |
4 |
0.35 |
WH |
2282 |
II |
- |
