X112 Engine Harness to Instrument Panel Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

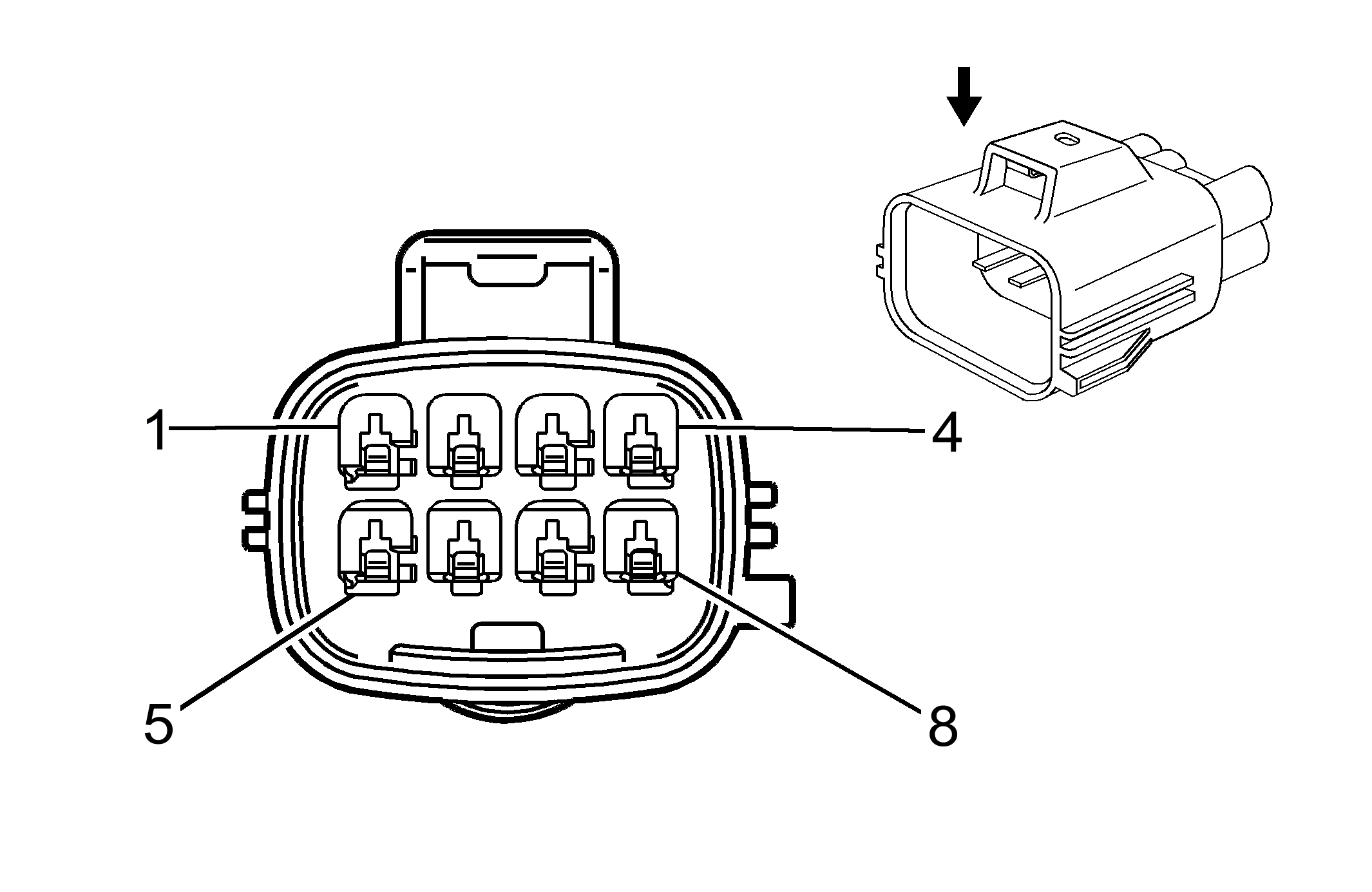

Connector Part Information
- Harness Type: Engine
- OEM Connector: 7283-0074-10
- Service Connector: 19330770
- Description: 8-Way F YESC USCAR Class III Series (GY)
|

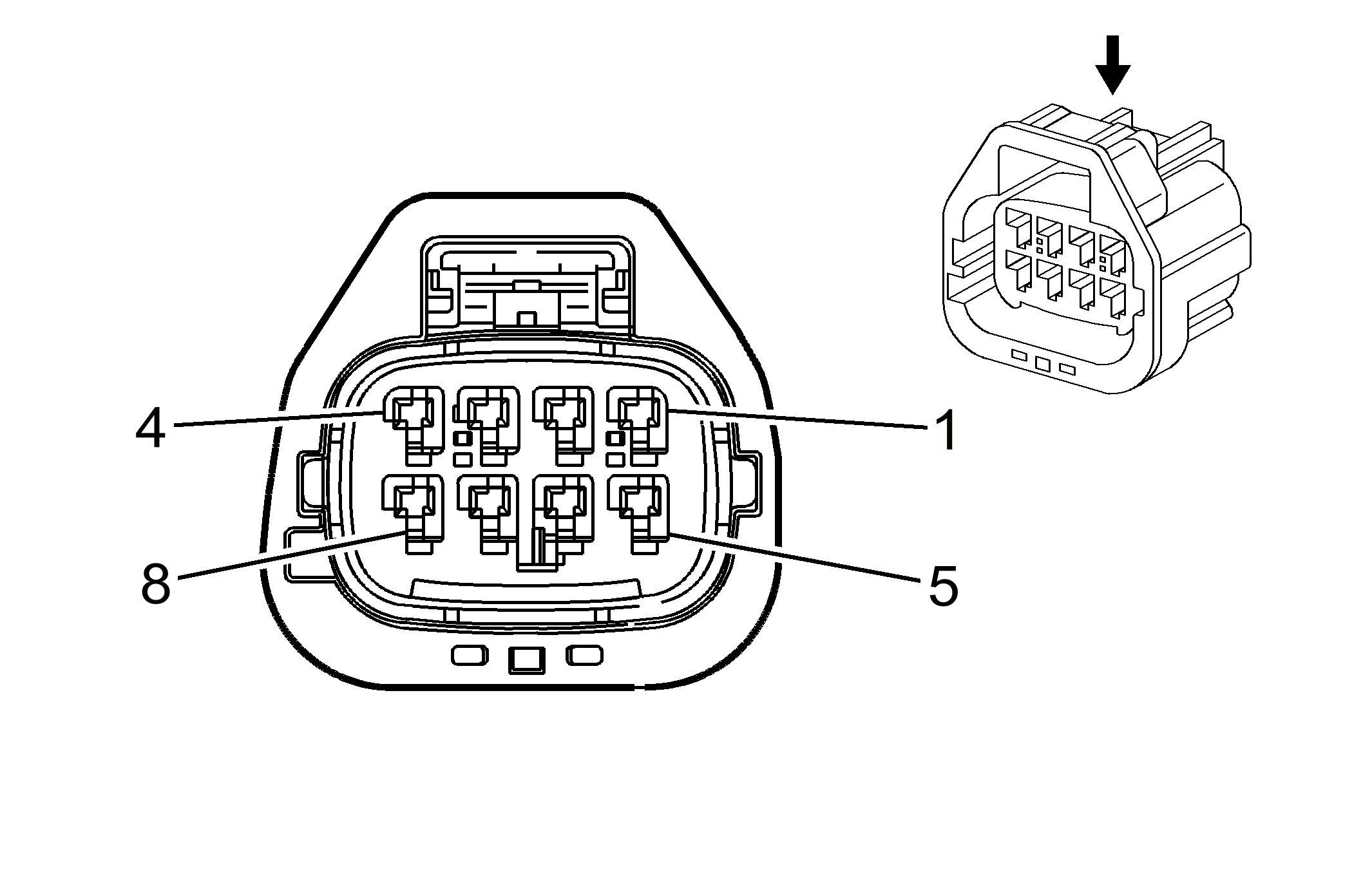

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7282-5684-10
- Service Connector: 88988389
- Description: 8-Way M YESC USCAR Class III Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-3 (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
TN |
5380 |
I |
- |
Brake Position Sensor Signal |
1 |
0.35 |
TN |
5380 |
II |
- |
| 2 |
0.5 |
GY |
5381 |
I |
- |
Brake Position Sensor 5V Reference |
2 |
0.35 |
GY |
5381 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.5 |
PK |
7574 |
I |
- |
Electric Variable Displacement Control |
4 |
0.5 |
PK |
7574 |
II |
- |
| 5 |
0.5 |
BN/WH |
5382 |
I |
- |
Brake Position Sensor Low Reference |
5 |
0.35 |
BN/WH |
5382 |
II |
- |
| 6 |
0.5 |
D-GN |
2087 |
I |
- |
Combined Vehicle Inertial Sensor Supply Voltage |
6 |
0.5 |
D-GN |
2087 |
II |
- |
| 7 |
0.5 |
L-BU |
2088 |
I |
- |
Combined Vehicle Inertial Sensor Low Reference |
7 |
0.5 |
L-BU |
2088 |
II |
- |
| 8 |
0.5 |
VT |
7575 |
I |
- |
Electric Variable Displacement Compressor Supply |
8 |
0.5 |
VT |
7575 |
II |
- |
