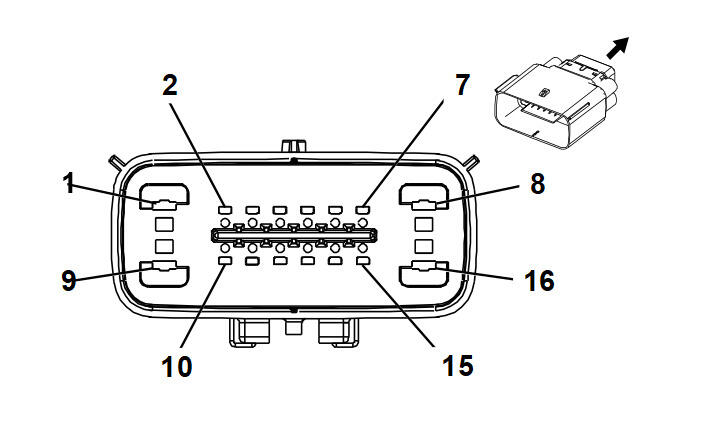

X100 Engine Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.


Connector Part Information Harness Type: Engine OEM Connector: 13589635 Service Connector: 13589635 Description: 16-Way F 1.5, 2.8 Series, Sealed (BK)	Connector Part Information Harness Type: Body OEM Connector: 34986-2012 Service Connector: 13593418 Description: 16-Way M 1.5, 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13505803	J-35616-35 (VT)	J-38125-12A	1326030-6	Lear 17	E	C
II	13505803	J-35616-35 (VT)	J-38125-12A	1326030-8	Lear 17	A	4
III	13576376	J-35616-35 (VT)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
IV	19300635	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
V	19119440	J-35616-3 (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
VI	19329833	J-35616-5 (PU)	J-38125-12A	1326030-6	Lear 17	E	2
VII	19329833	J-35616-5 (PU)	J-38125-12A	1326030-6	Lear 17	E	C
VIII	19329833	J-35616-5 (PU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	PK	439	II	-	Run/Crank Ignition 1 Voltage	1	0.5	PK	439	VI	-
2	0.5	TN	884	IV	JL9	Wheel Speed Sensor Signal Left Rear	2	0.5	TN	884	V	JL9
3	0.5	BN	882	IV	JL9	Wheel Speed Sensor Signal Right Rear	3	0.5	BN	882	V	JL9
4	0.5	D-GN	7493	IV	-	High Speed GMLAN Serial Data (+)3	4	0.5	D-GN	7493	V	-
5	0.5	D-BU/WH	7446	IV	-	Fuel Line Pressure Sensor Signal	5	0.35	BU/WH	7446	V	-
6	0.5	D-GN	890	IV	-	Fuel Tank Pressure Sensor Signal	6	0.35	D-GN	890	V	-
7	0.5	GY	2709	IV	-	Fuel Tank Pressure Sensor 5V Reference	7	0.35	GY	2709	V	-
8	0.5	D-GN/WH	5660	II	-	Fuel Pump Controller Data Out Signal	8	0.5	D-GN/WH	5660	VI	-
9	0.8	RD/WH	540	I	-	Battery Positive Voltage	9	0.8	RD/WH	540	VII	-
10	0.5	OG	885	IV	JL9	Wheel Speed Sensor Low Reference Left Rear	10	0.5	OG	885	V	JL9
11	0.5	WH	883	IV	JL9	Wheel Speed Sensor Low Reference Right Rear	11	0.5	WH	883	V	JL9
12	0.5	L-GN	7494	IV	-	High Speed GMLAN Serial Data (-)3	12	0.5	L-GN	7494	V	-
13	0.5	TN	2759	IV	-	Fuel Tank Pressure Sensor Low Reference	13	0.35	TN	2759	V	-
14	0.5	VT	1589	IV	-	Primary Fuel Level Sensor Signal	14	0.35	VT	1589	V	-
15	-	-	-	-	-	Not Occupied	15	-	-	-	-	-
16	1	OG	1470	III	-	Brake Booster Pump Motor Control	16	1	OG	1470	VIII	-
