Underbody Harness Routing - Left Rear

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

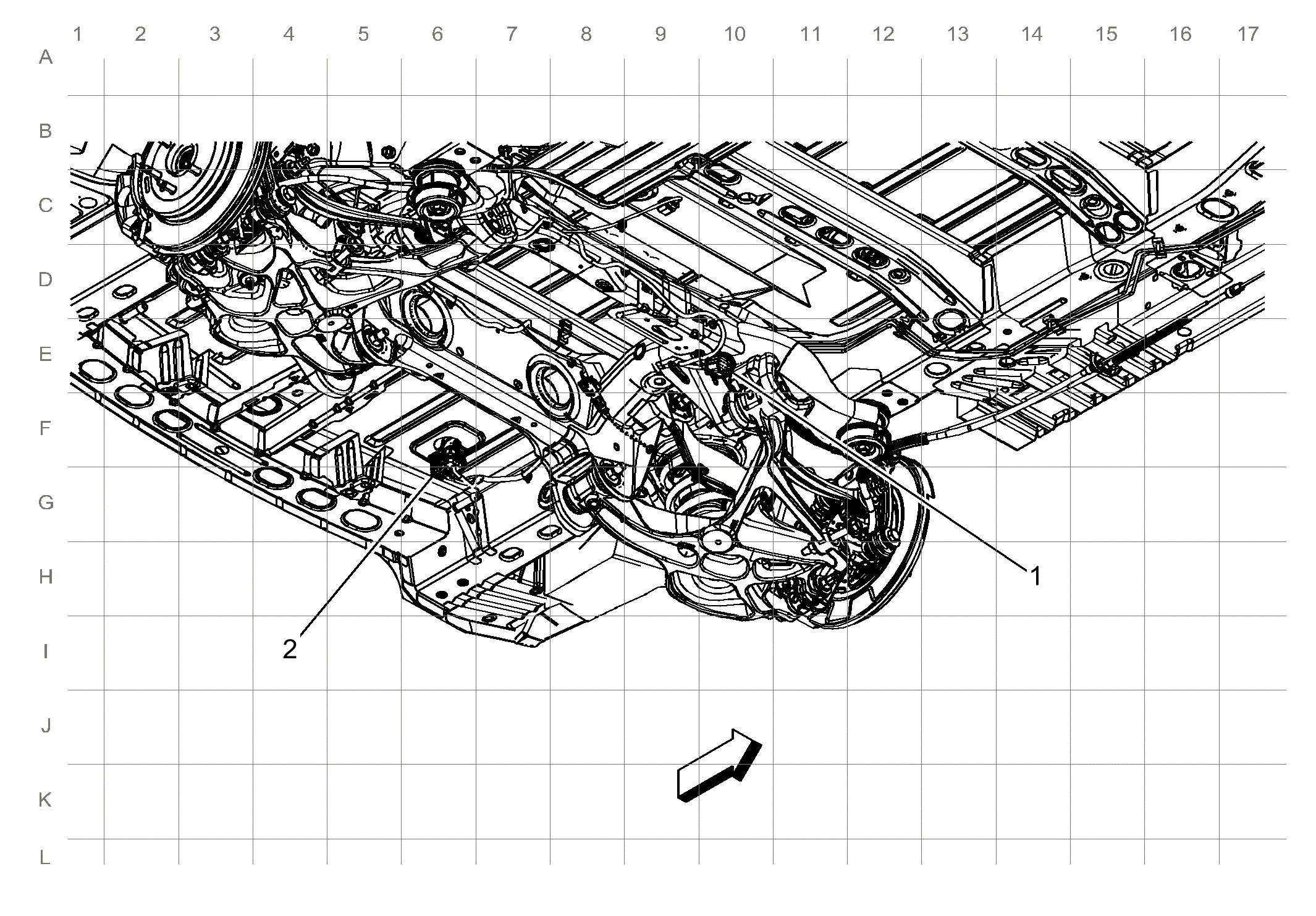

Fig 1: Underbody Harness Routing - Left Rear
GM4006291Courtesy of GENERAL MOTORS COMPANY
Items
1. X308 X308 Rear Axle Harness to Fuel Tank Harness
2. X405 X405 Rear Axle Harness to Body Harness (16 of 16)
