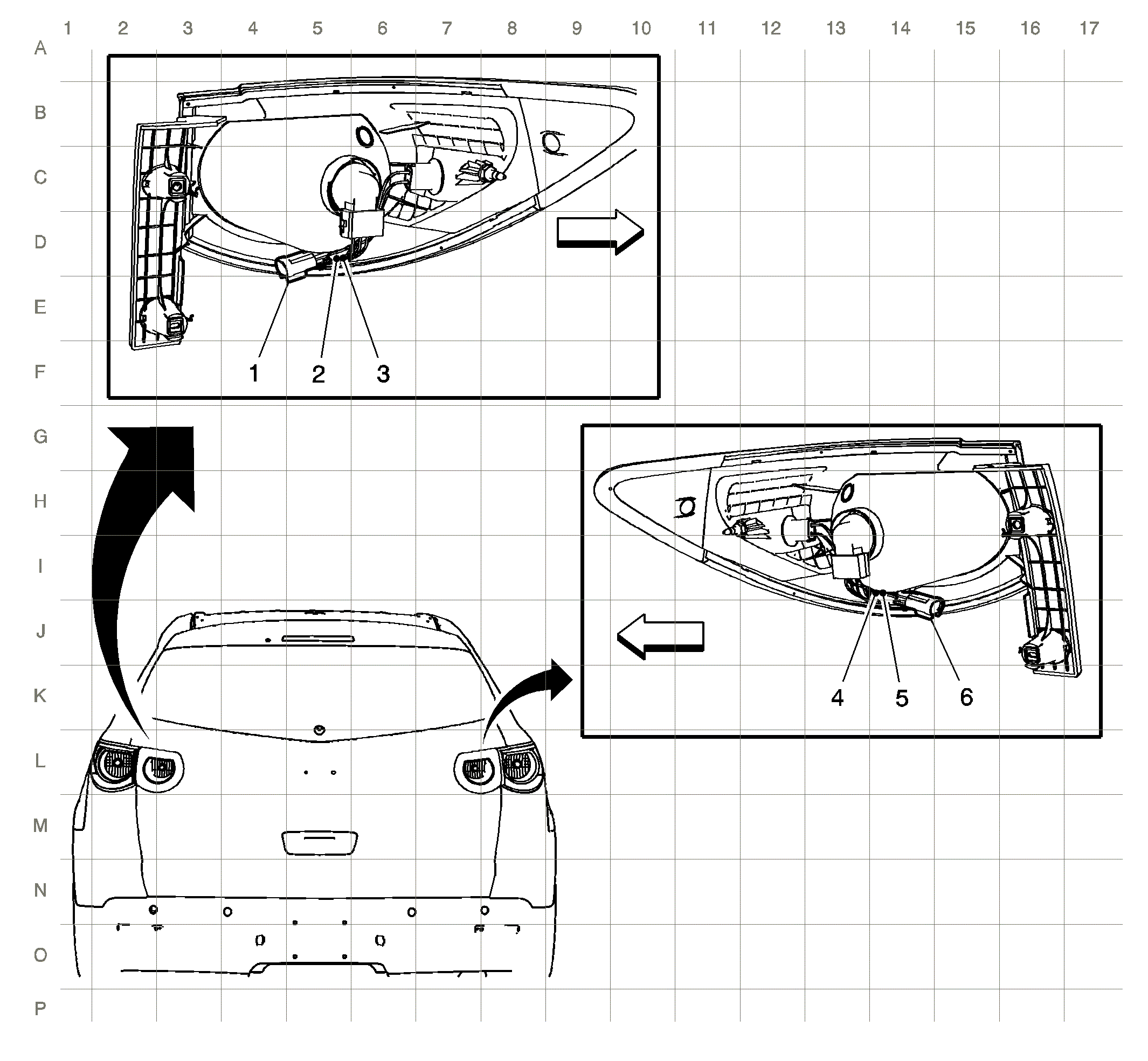

Tail Lamp Harness Routing (X88)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X410 X410 Body Harness to Left Tail Lamp Harness (W49+T89)X410 Body Harness to Left Tail Lamp Harness (W49-T89) |
| 2. J493 (W49 or X88) |
| 3. J495 (W49 or X88) |
| 4. J490 (W49 or X88) |
| 5. J488 (W49 or X88) |
| 6. X420 X420 Body Harness to Right Tail Lamp Harness (W49+T89)X420 Body Harness to Right Tail Lamp Harness (W49-T89) |
