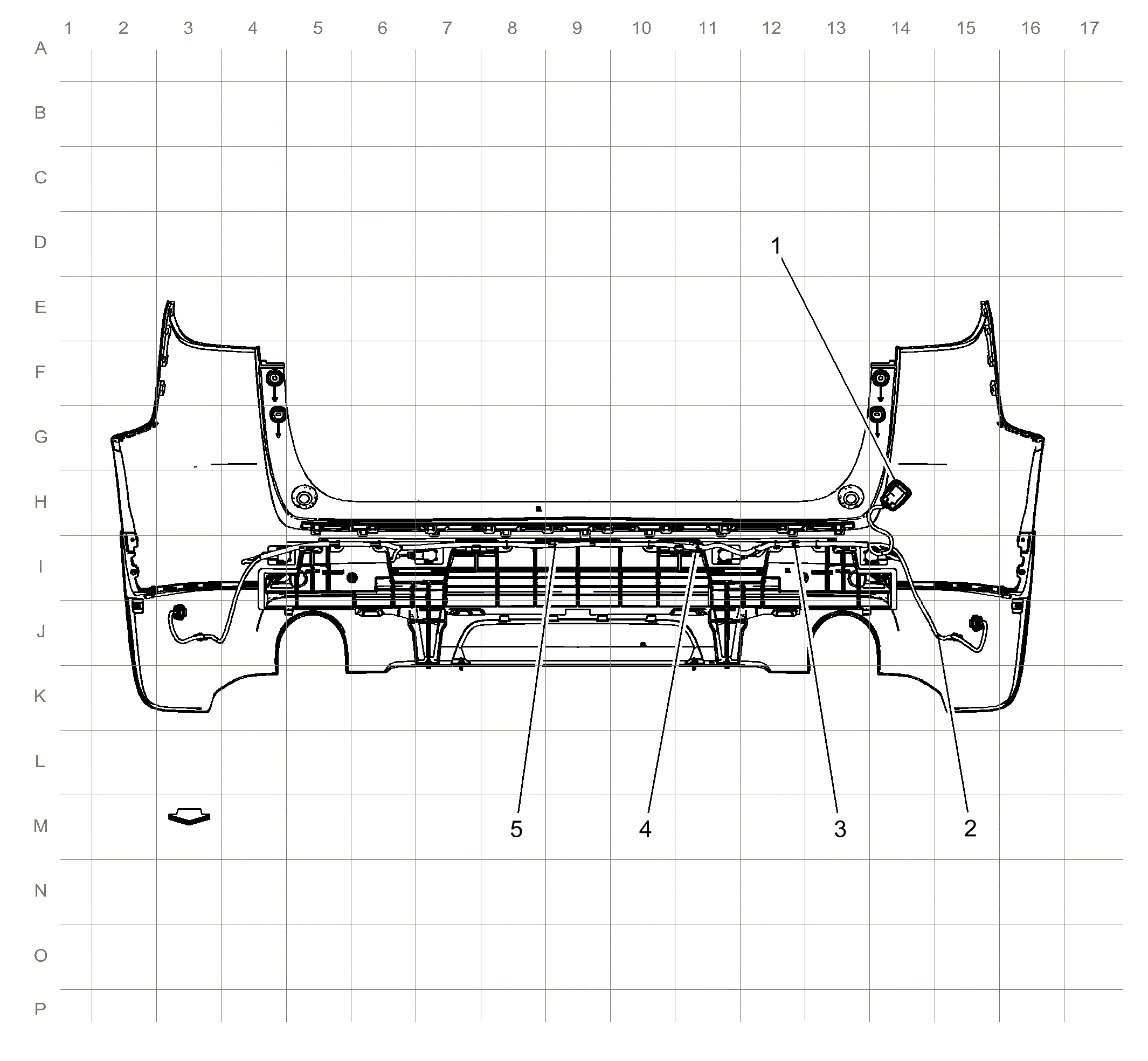

Rear Bumper Harness Routing
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X440 (W49 with T79 or UD7) X440 Body Harness to Rear Park Assist Harness |
| 2. J404 (UD7) |
| 3. J409 (UD7) |
| 4. J440 (UD7) |
| 5. J444 (UD7) |
