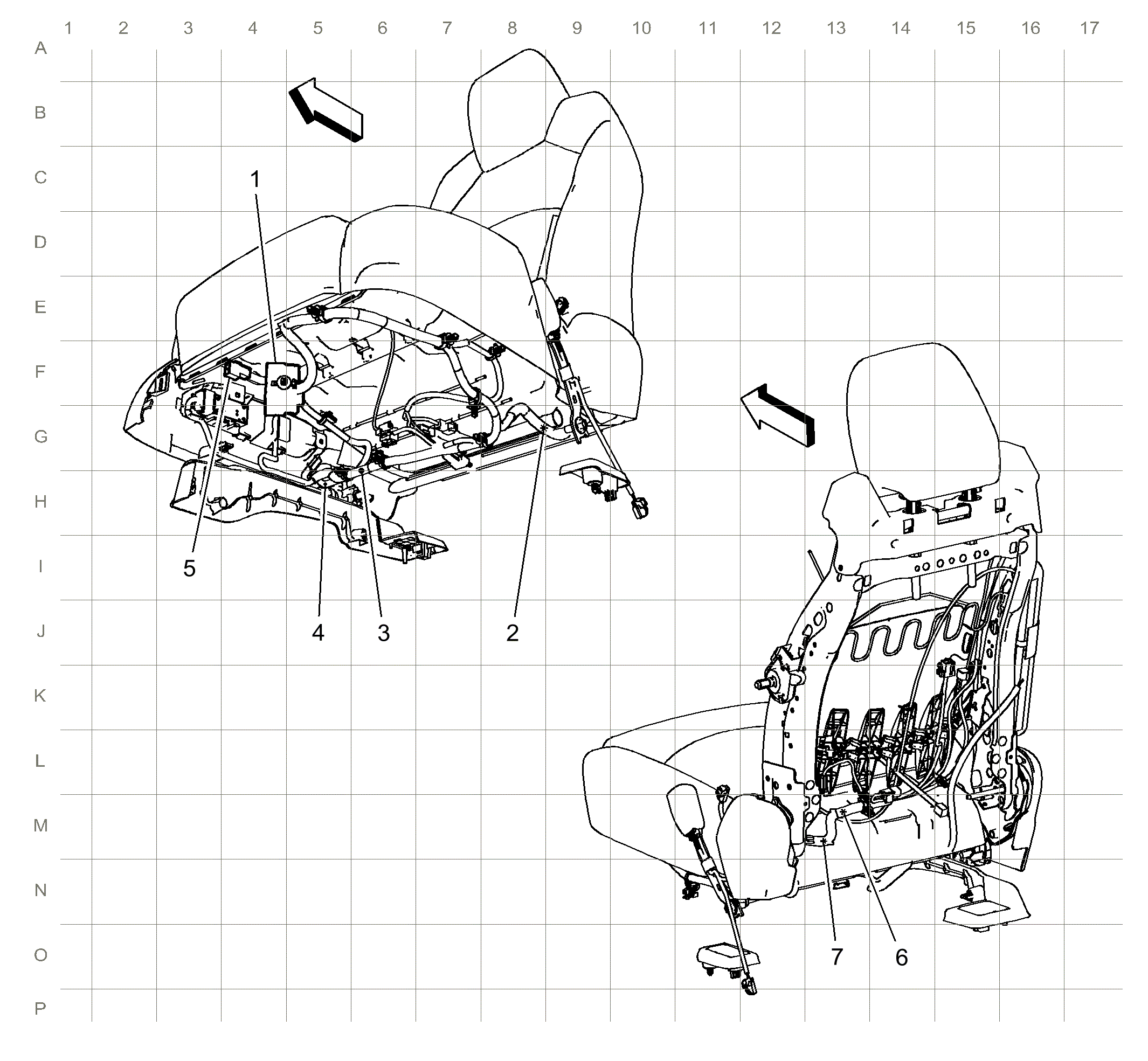

Passenger Seat Harness Routing
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X314 X314 Body Harness to Passenger Seat Harness |
| 2. J342 (KA1) |
| 3. J344 (AAQ or KB6) |
| 4. J346 (AAQ) |
| 5. X332 X332 Body Harness to Passenger Seat Harness |
| 6. J349 (KB6) |
| 7. J347 (KB6) |
