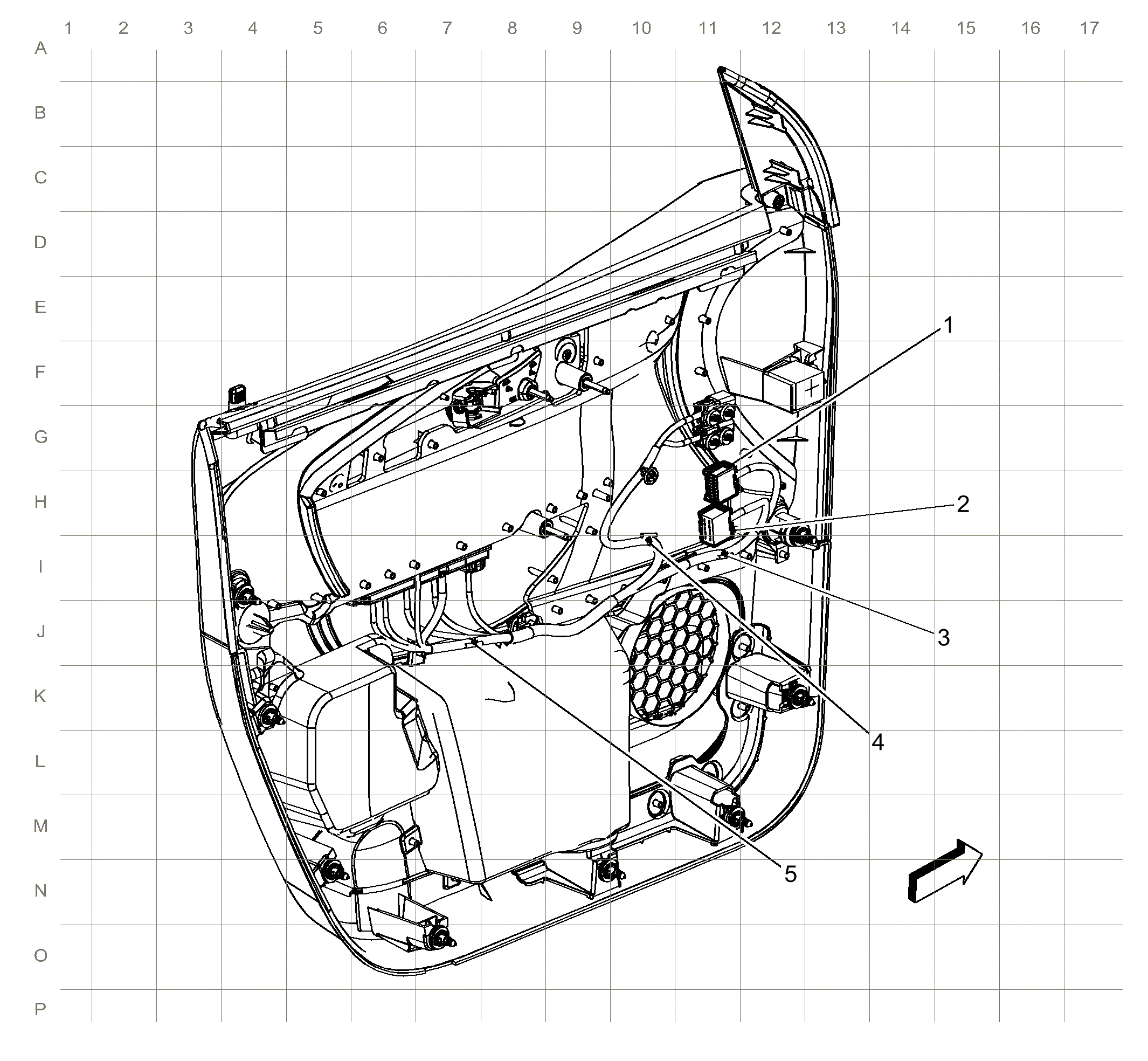

Passenger Door Trim Harness Routing (Z88)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X666 X666 Passenger Door Trim Harness to Passenger Door Harness |
| 2. X664 X664 Passenger Door Trim Harness to Passenger Door Harness |
| 3. J602 |
| 4. J602 |
| 5. J666 (without AXE) |
